Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Stop Lamps >> Stop Lamps Inoperative - Center High Mounted

Stop Lamps Inoperative - Center High Mounted

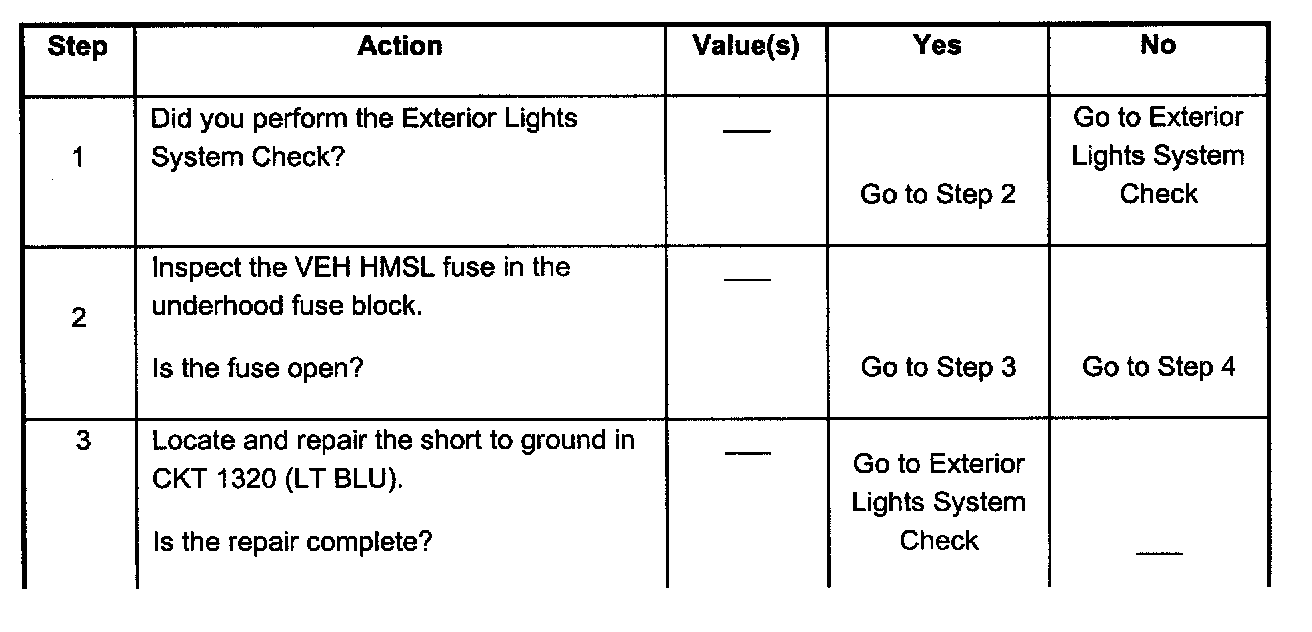

Steps 1 - 3:

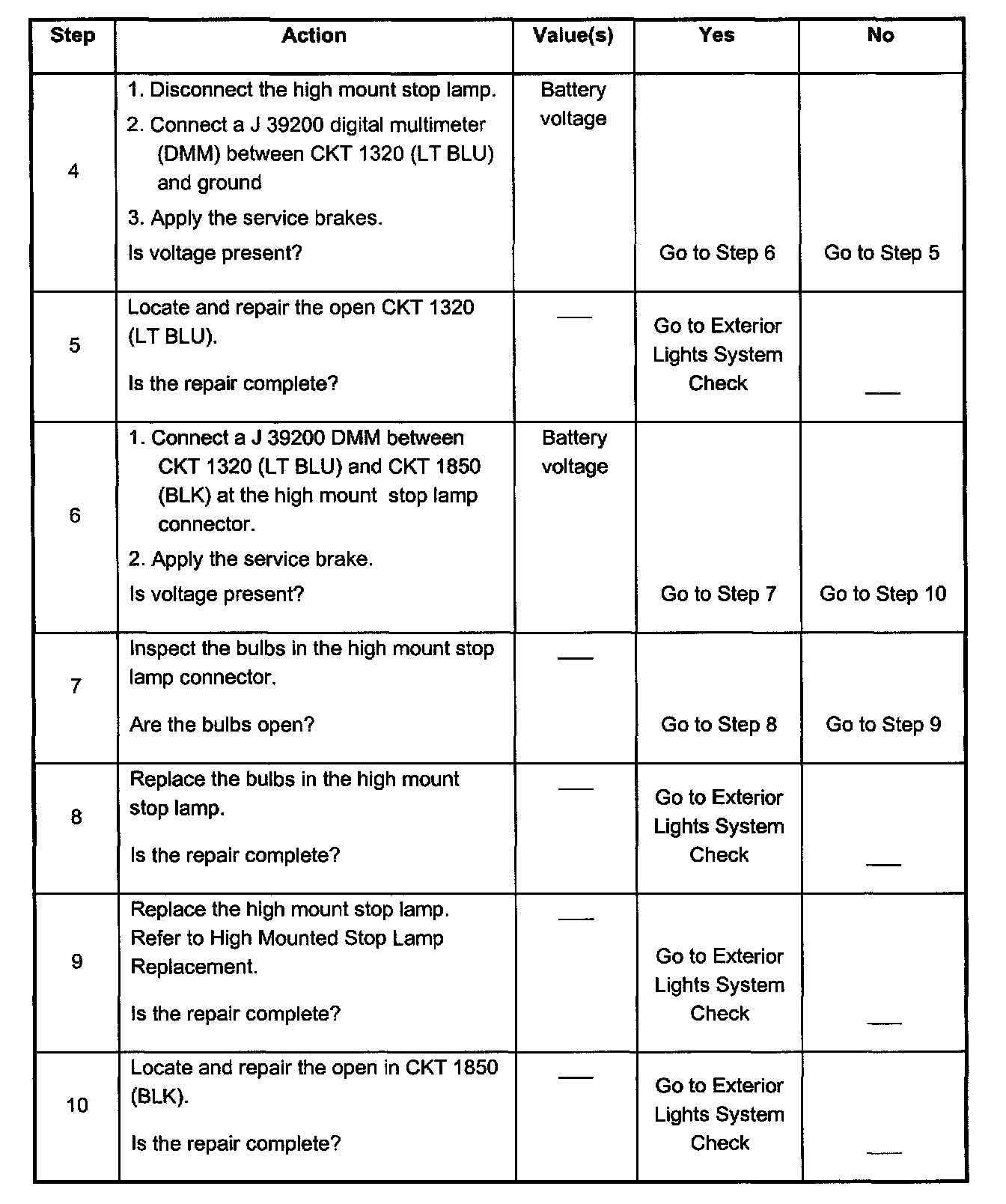

Steps 4 - 10:
