Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Headlamps >> Headlamps Inoperative In Low Light Conditions

Headlamps Inoperative In Low Light Conditions

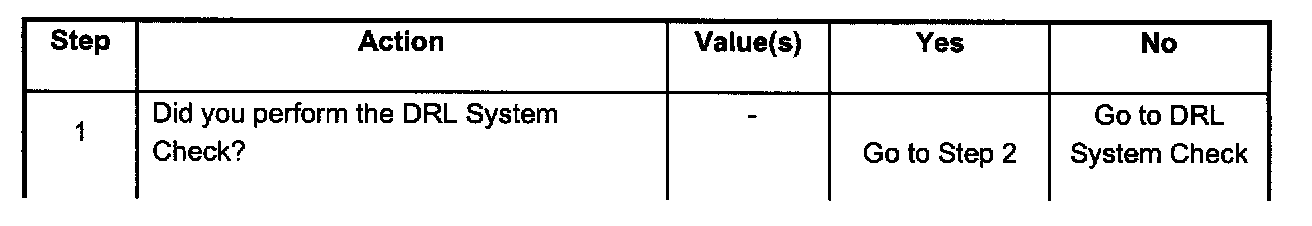

Step 1:

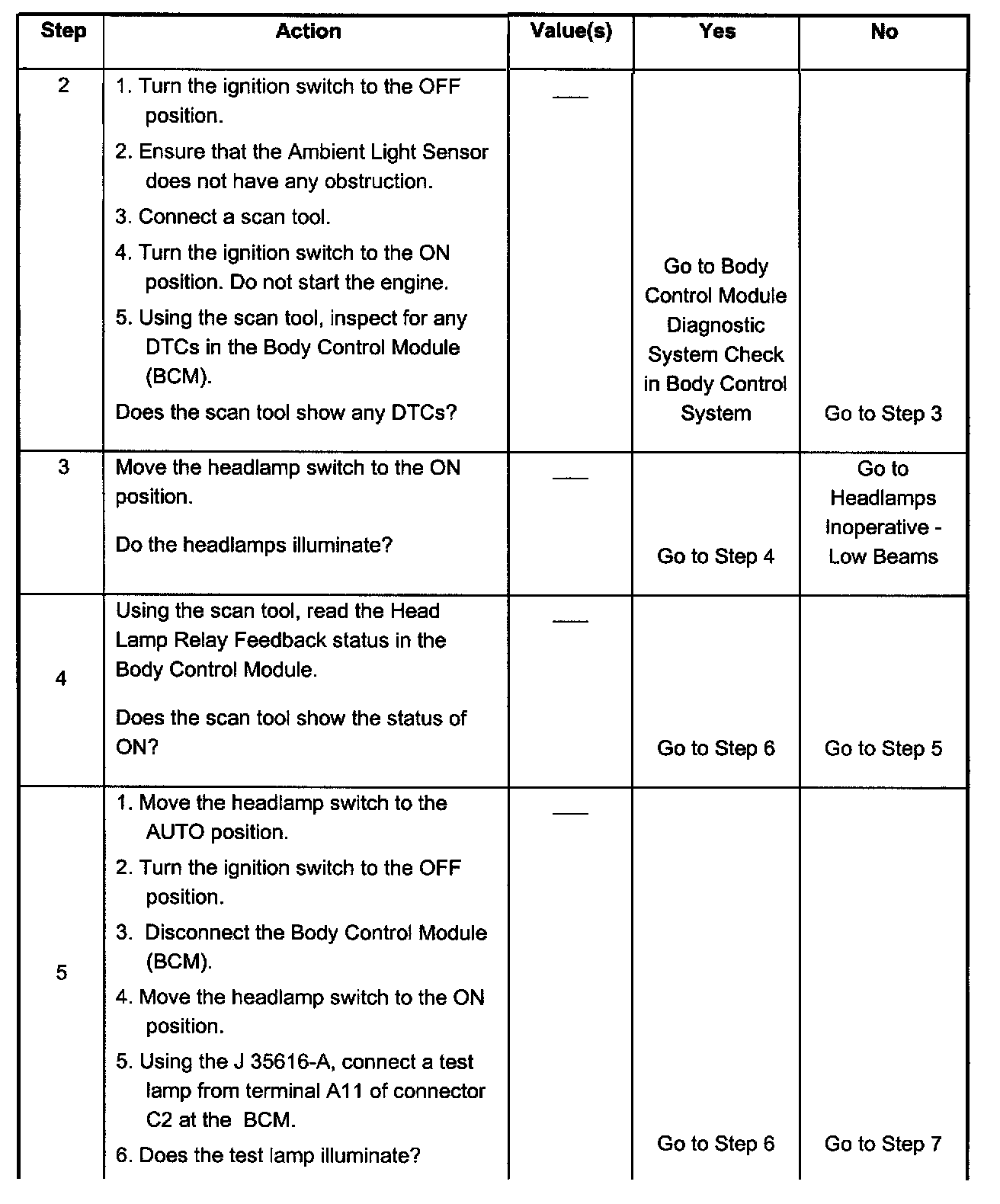

Steps 2 - 5:

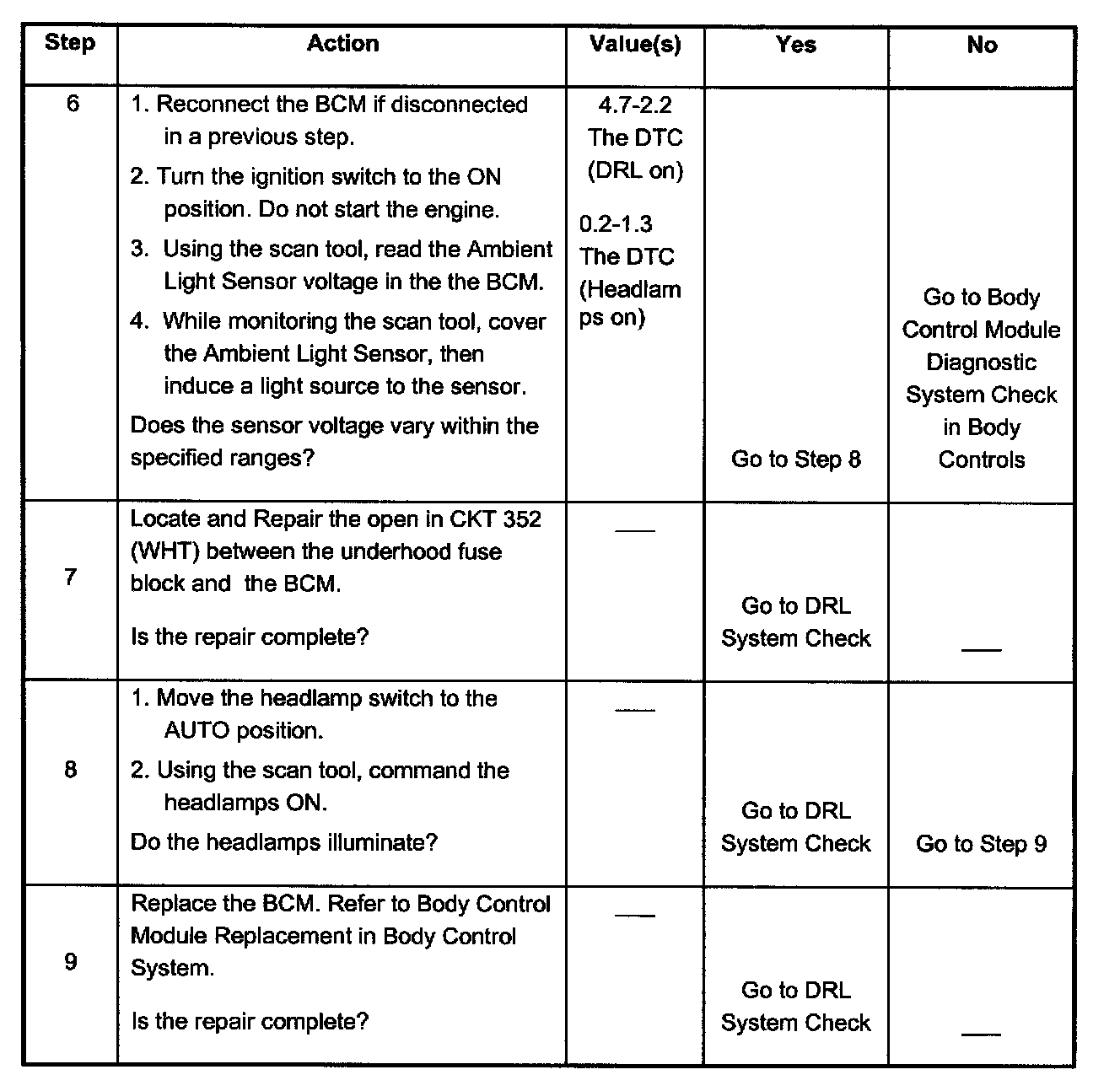

Steps 6 - 9:
