Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Headlamps >> Headlamps Inoperative - Right Low Beam

Headlamps Inoperative - Right Low Beam

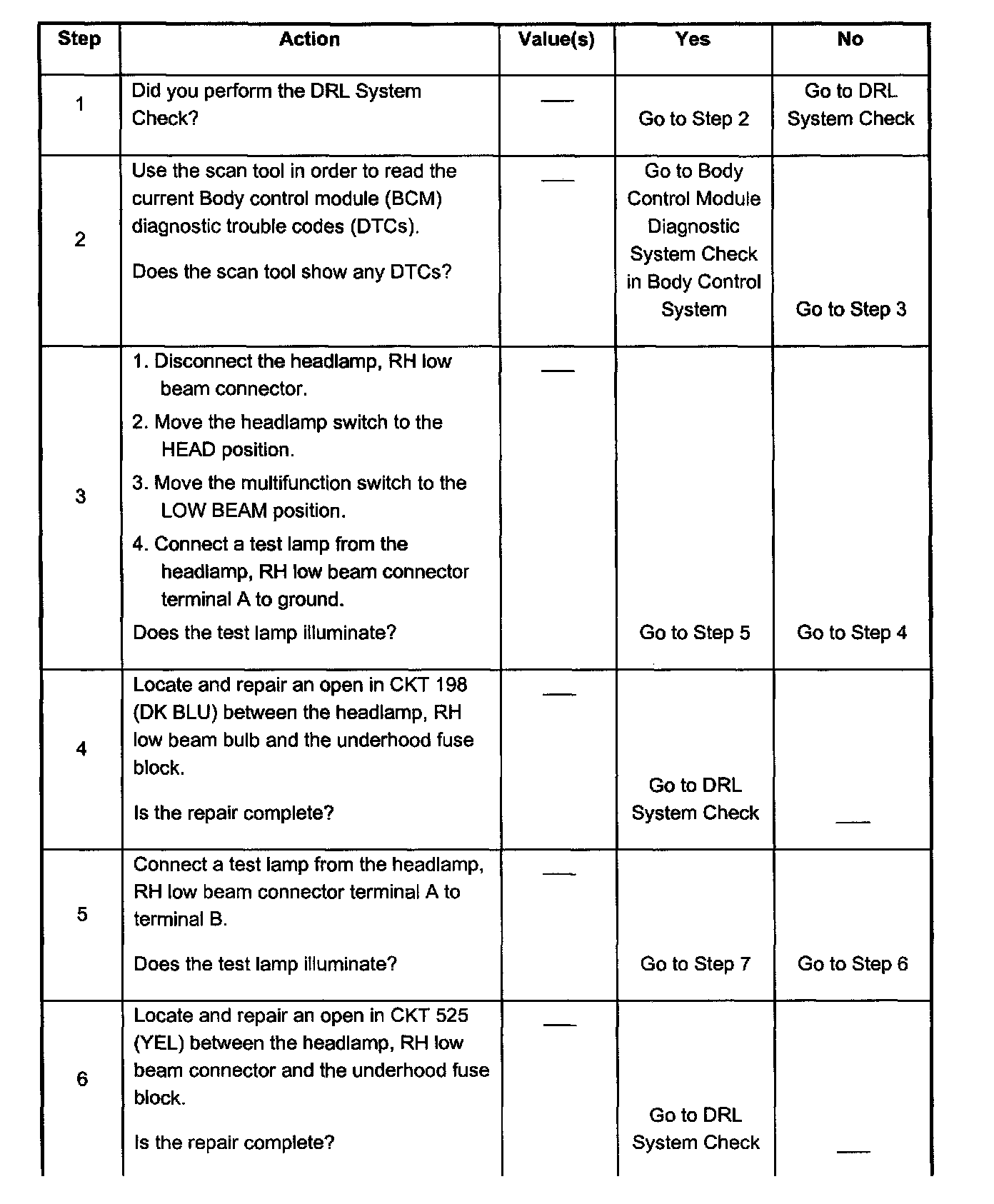

Steps 1 - 6:

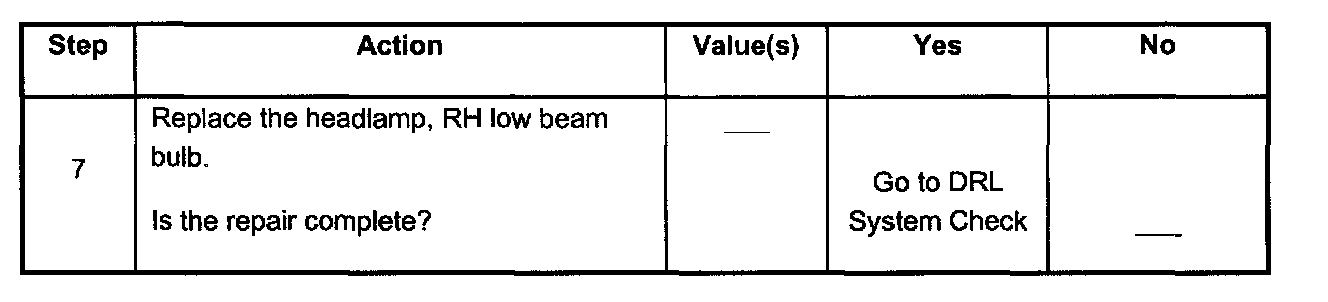

Step 7:
