Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Headlamps >> Headlamps Inoperative - Left Low Beam

Headlamps Inoperative - Left Low Beam

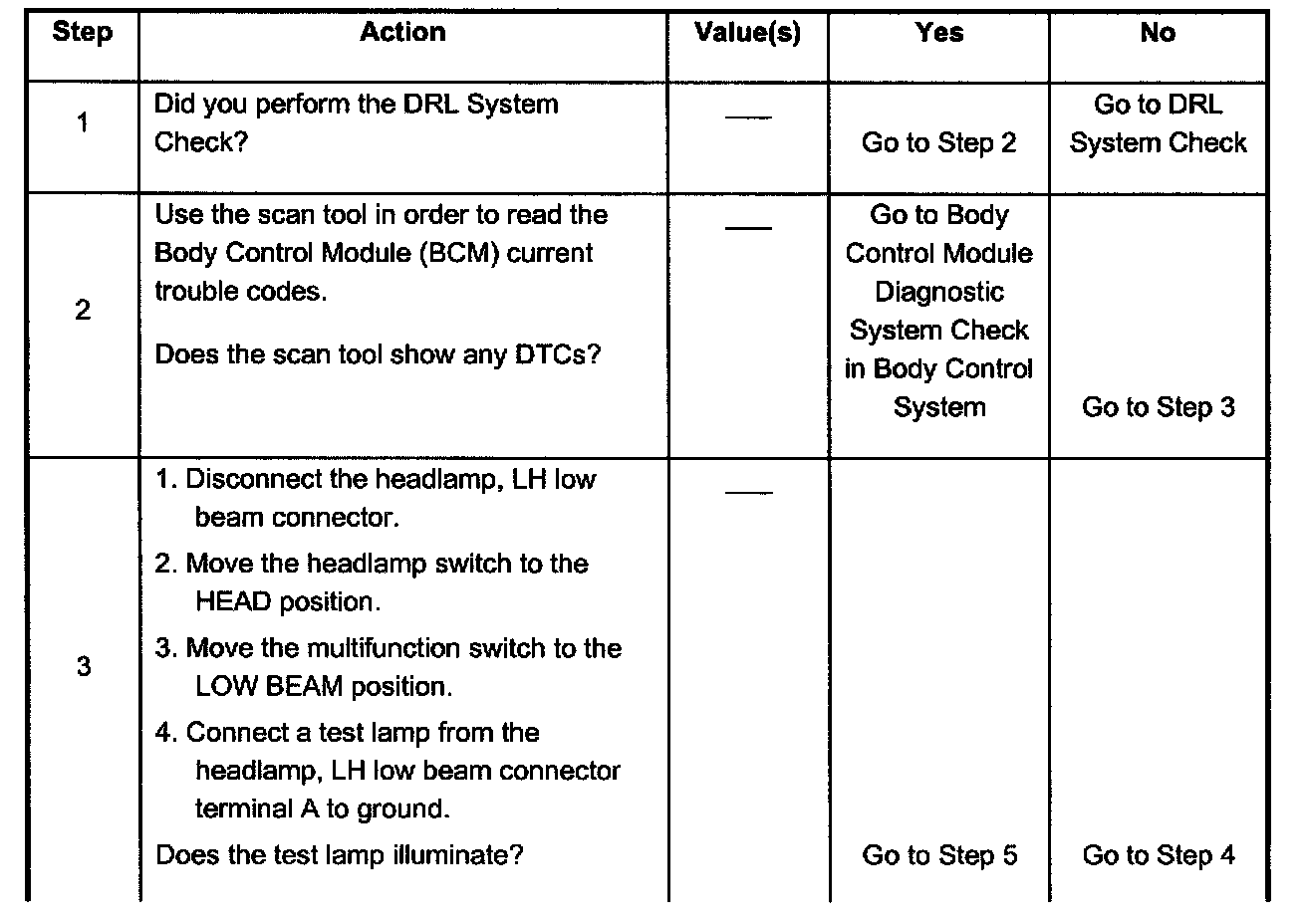

Steps 1 - 3:

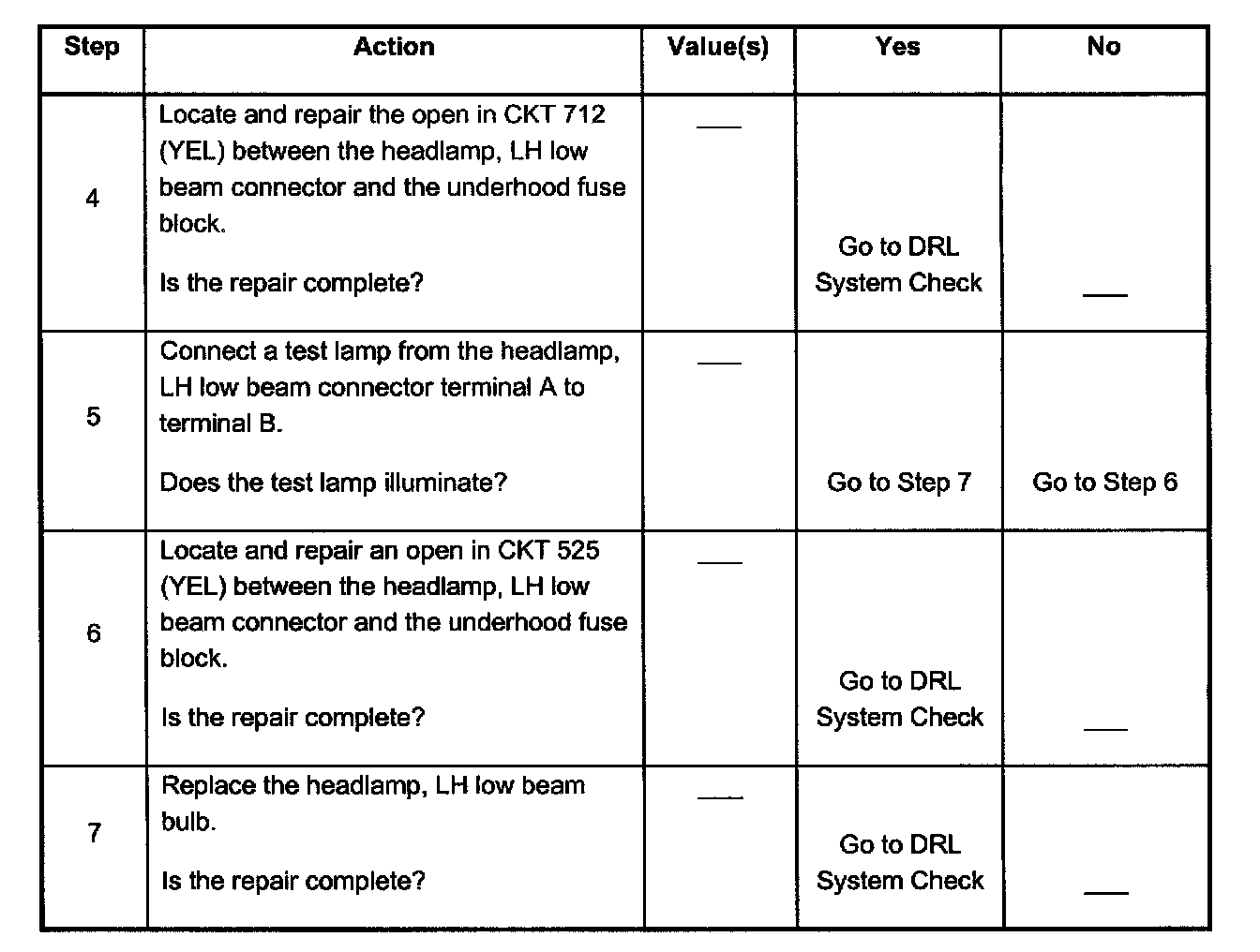

Steps 4 - 7:
