Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Fog Lamps >> Fog Lamps Inoperative - All

Fog Lamps Inoperative - All

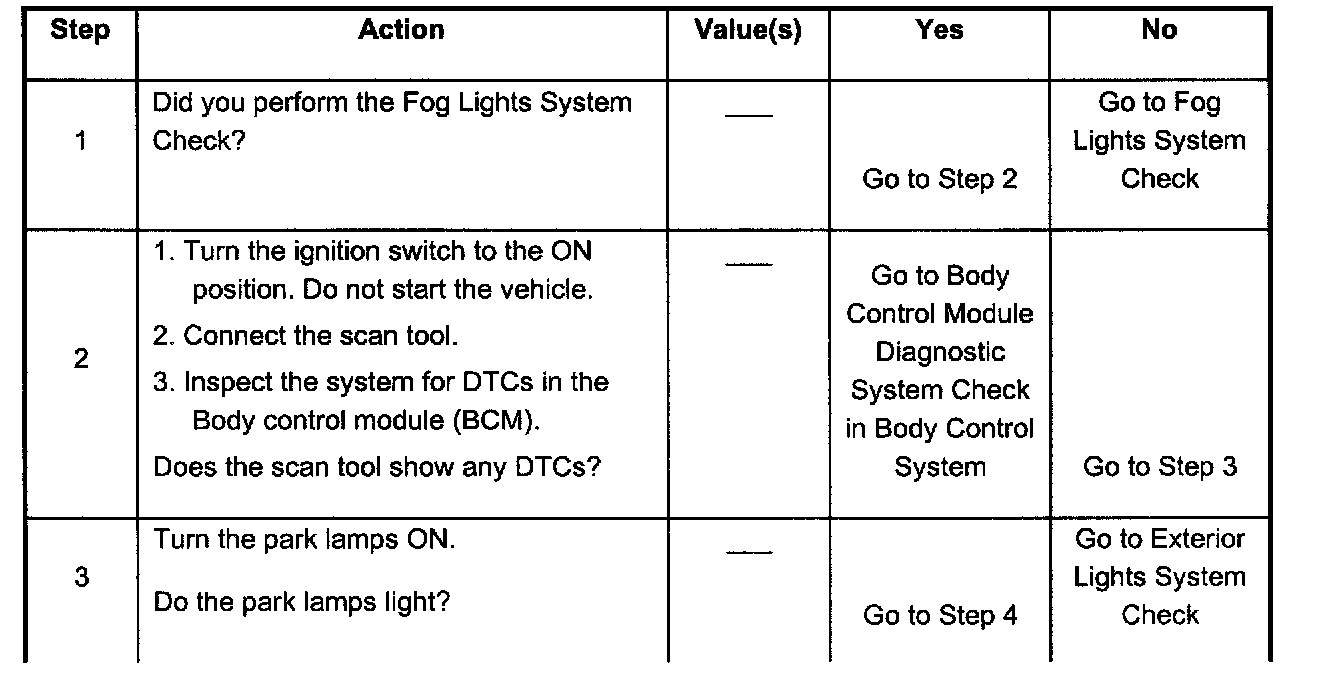

Steps 1 - 3:

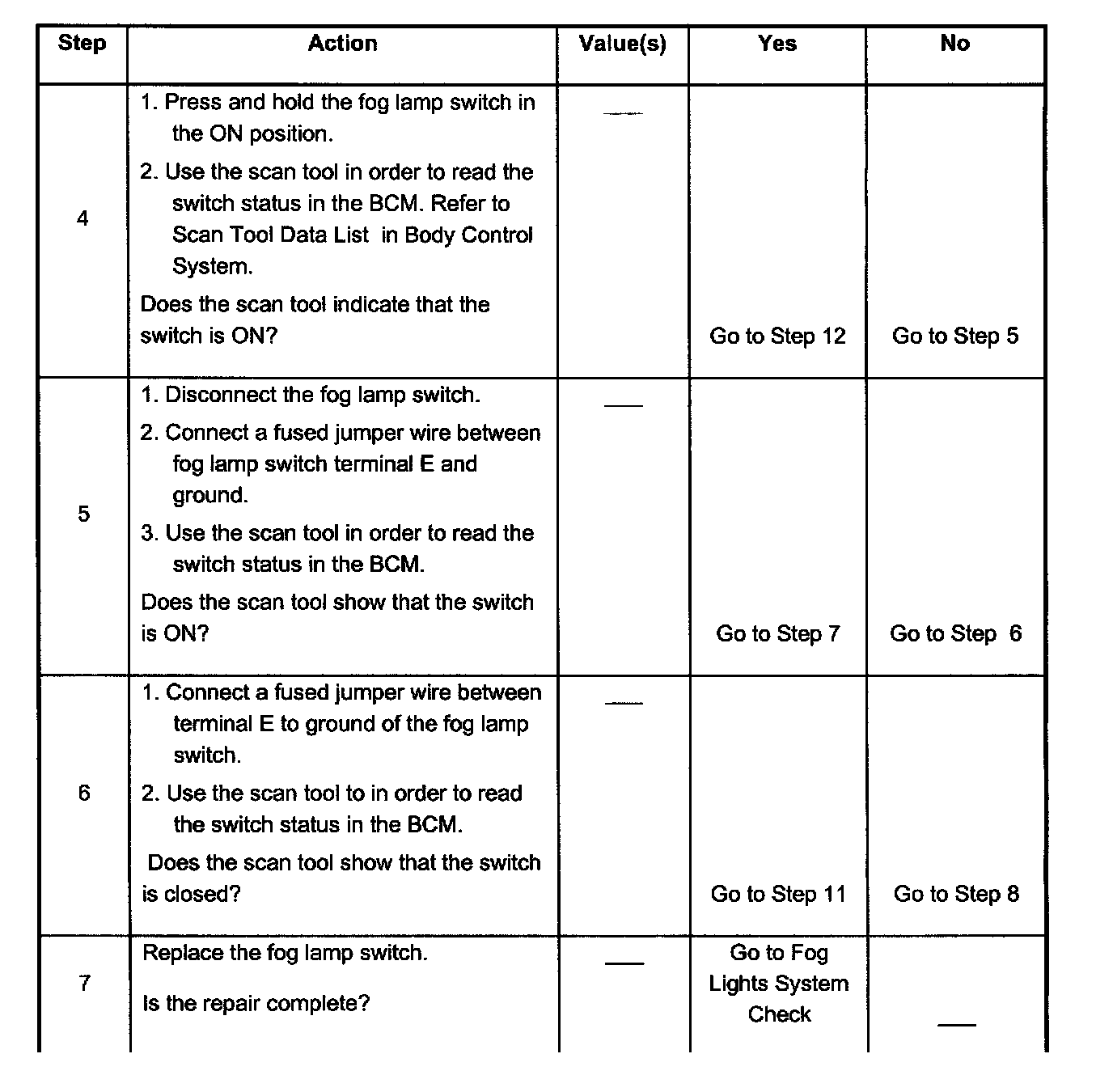

Steps 4 - 7:



Steps 8 - 13:

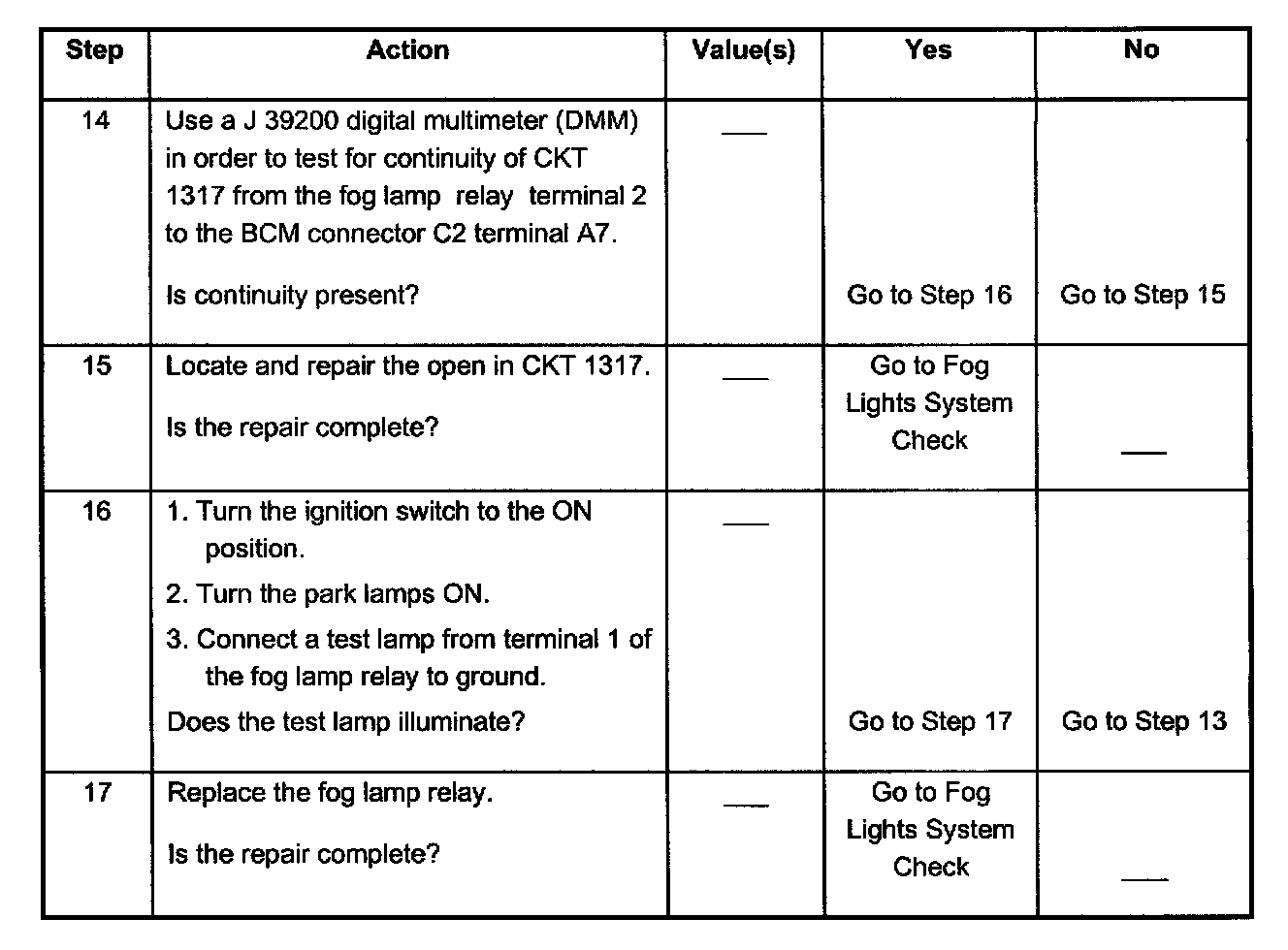

Steps 14 - 17:
