Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Daytime Running Lamps (DRL) >> DRL Inoperative, Headlamp Switch Operates Normally

DRL Inoperative, Headlamp Switch Operates Normally

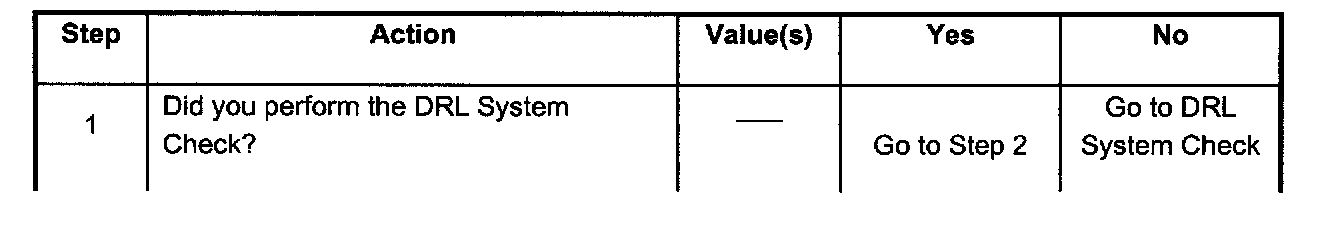

Step 1:

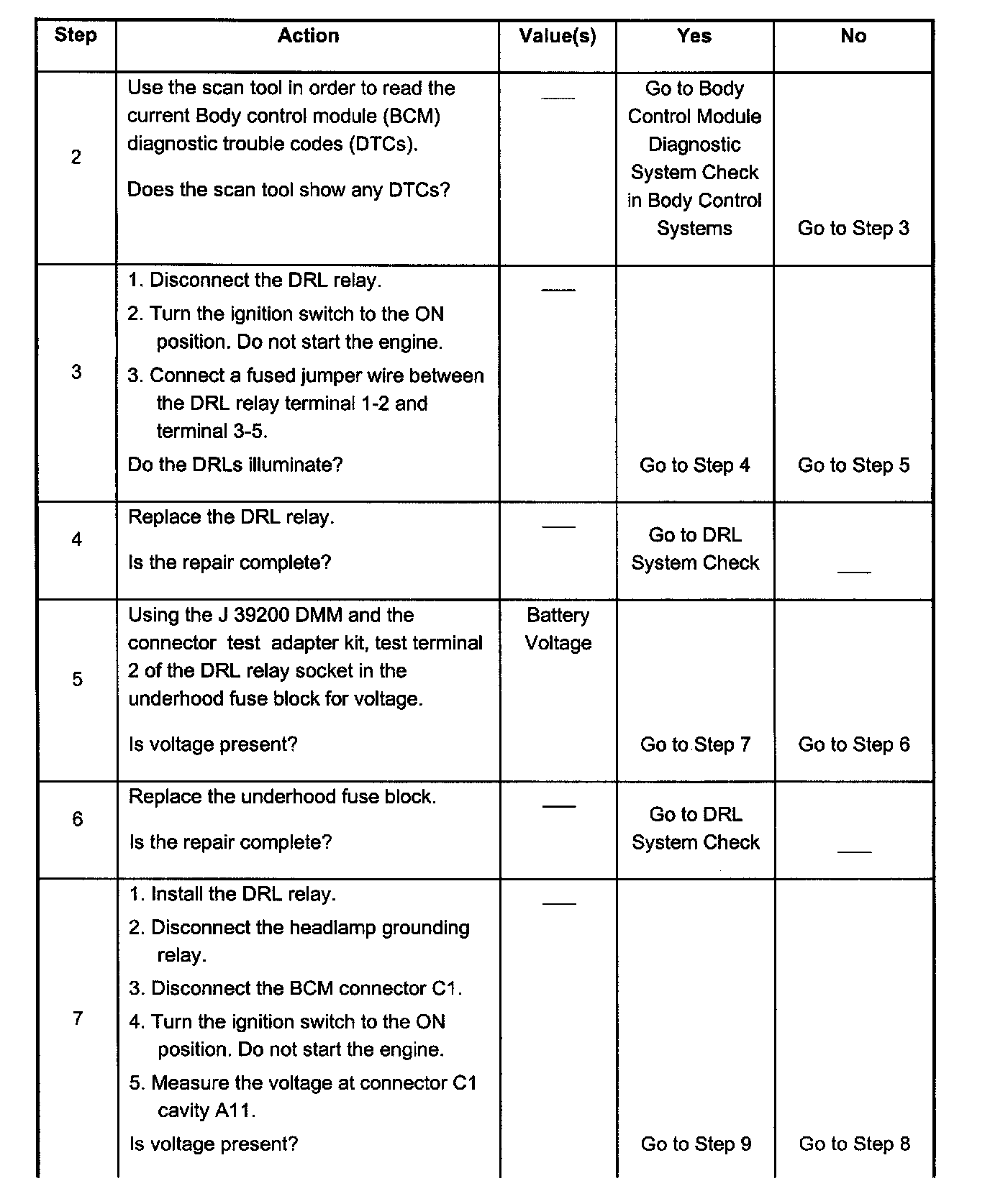

Steps 2 - 7:

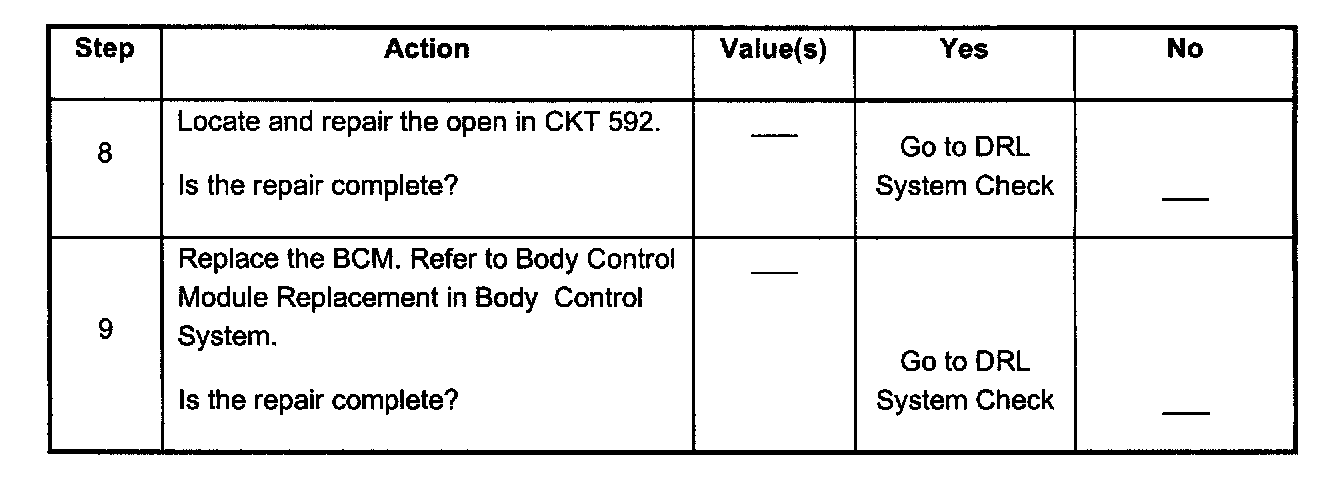

Steps 8 - 9:
