FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Backup Lamps >> Backup Lamps Inoperative

Backup Lamps Inoperative

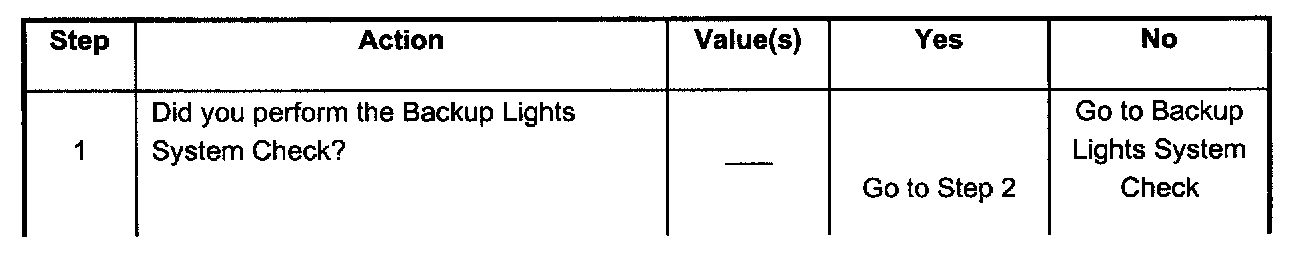

Step 1:

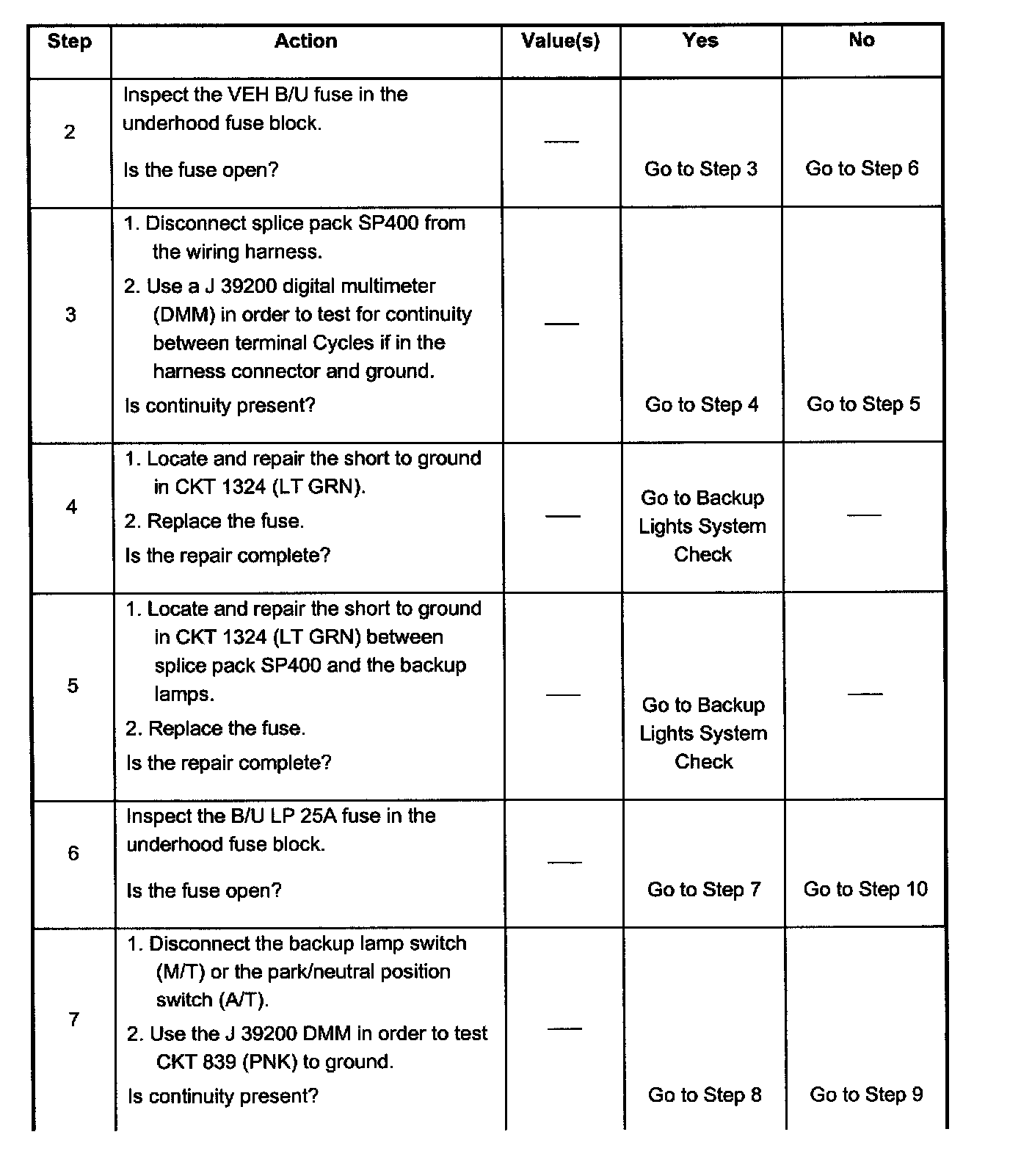

Steps 2 - 7:

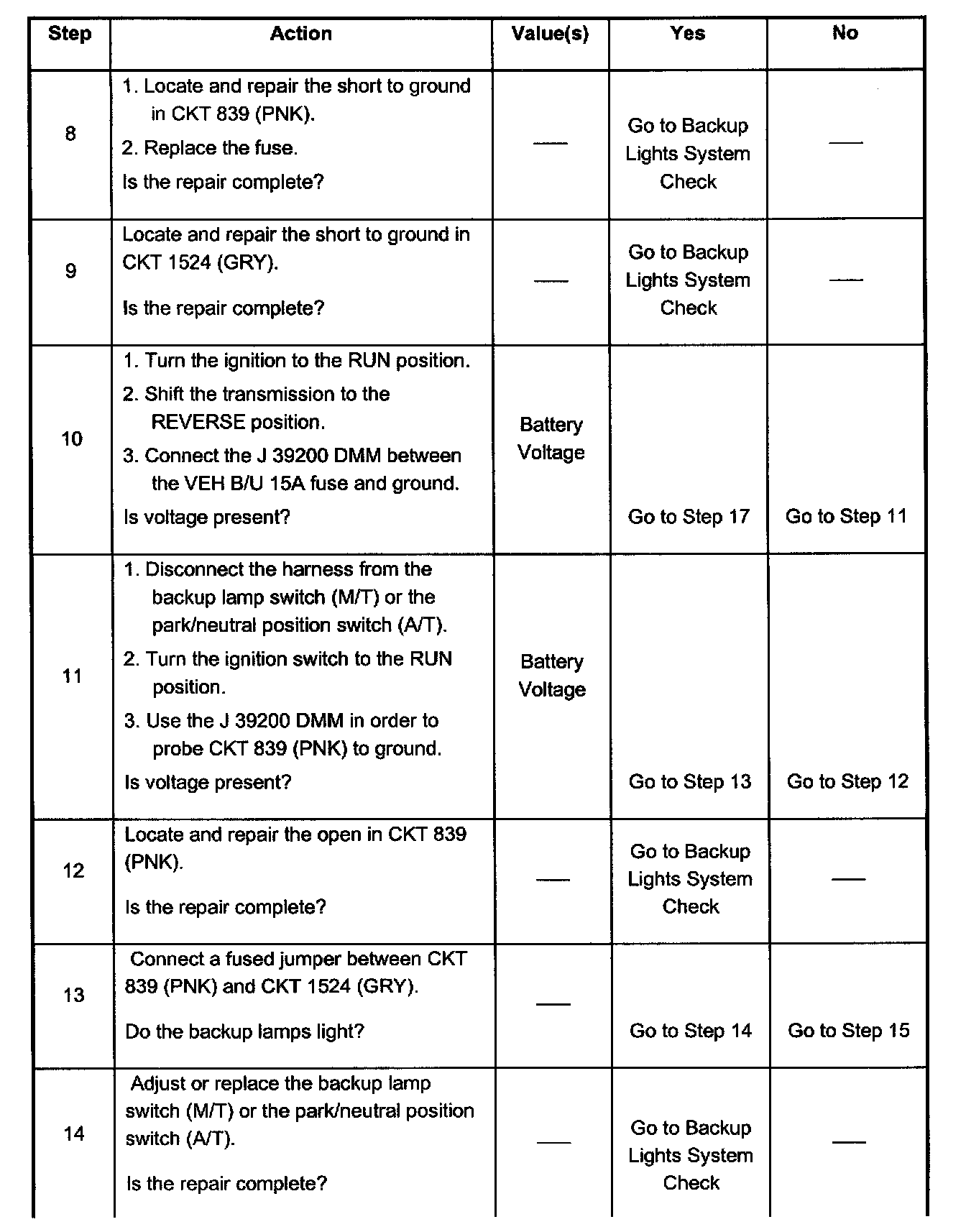

Steps 8 - 14:

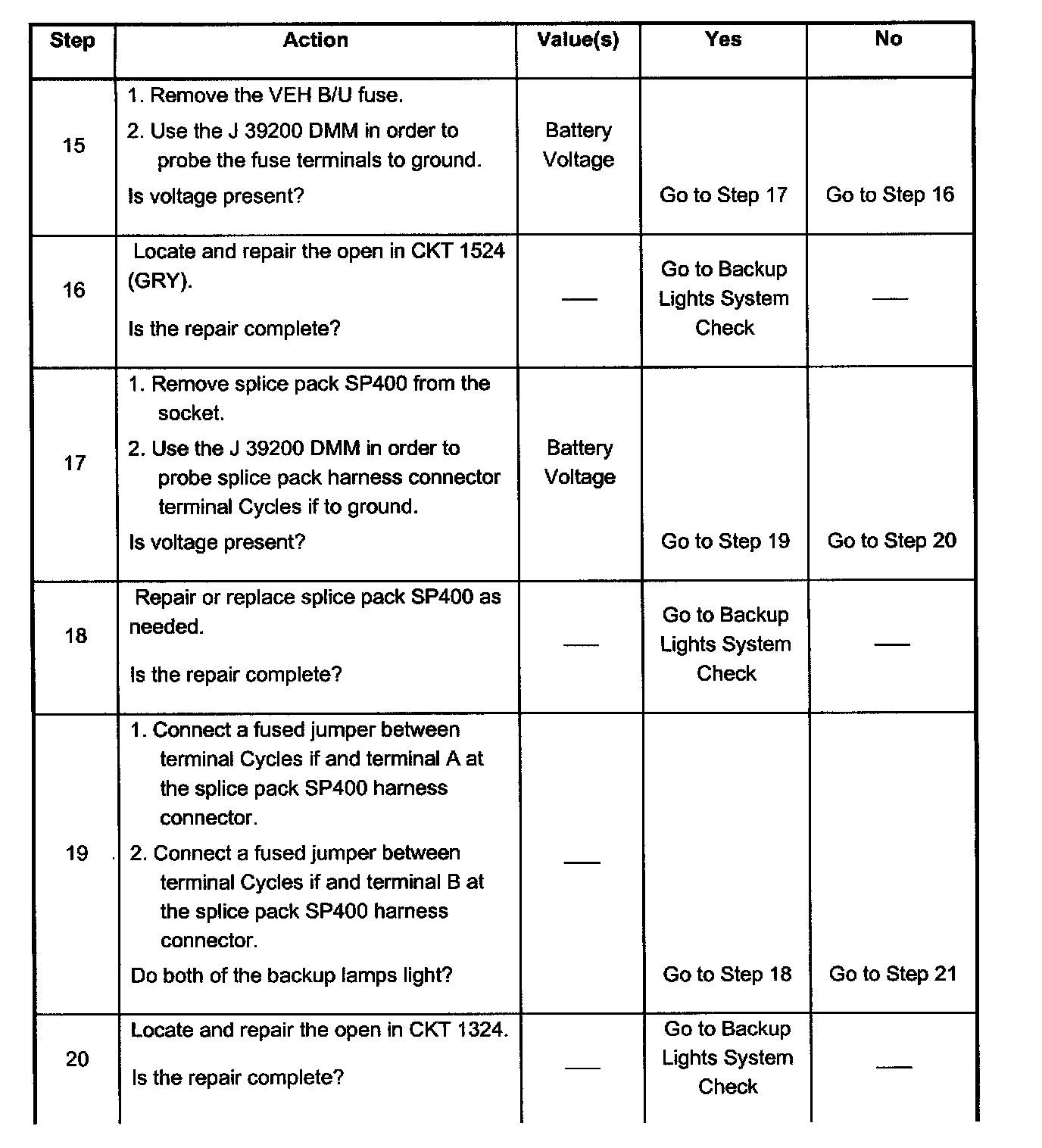

Steps 15 - 20:

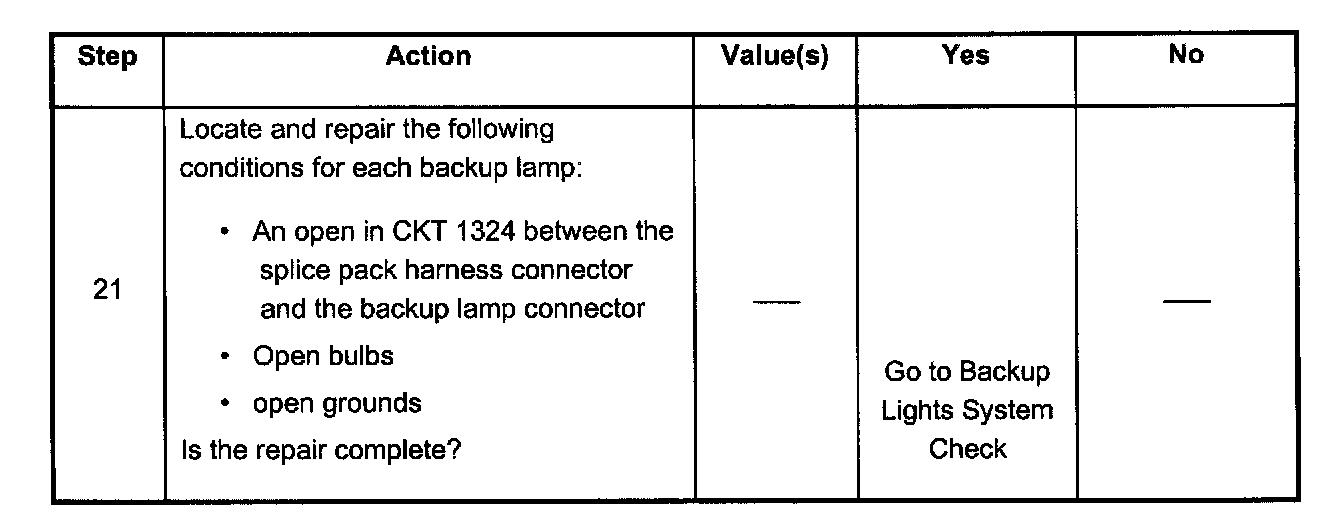

Step 21:
