Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Backup Lamps >> Backup Lamps Always on

Backup Lamps Always on

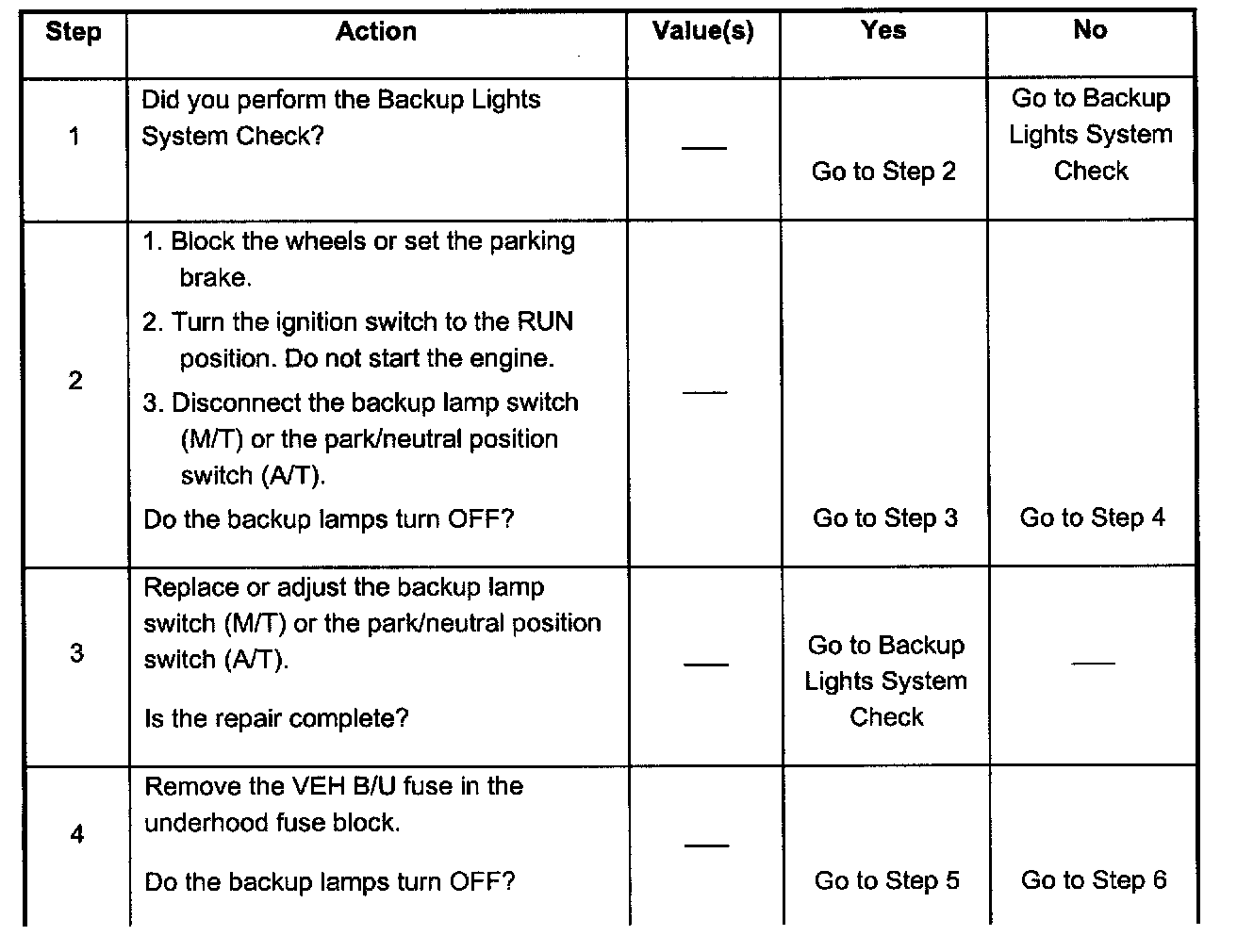

Steps 1 - 4:

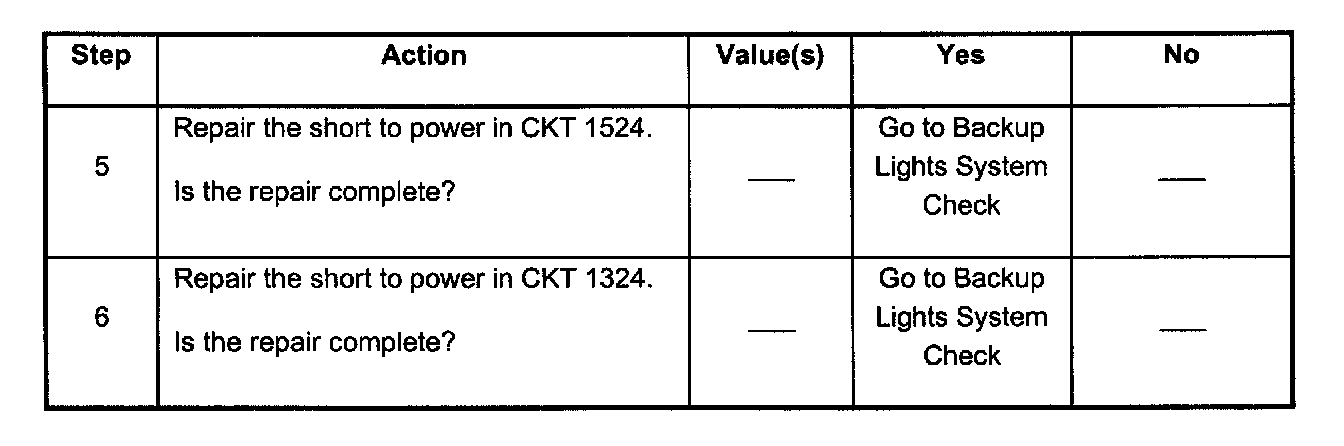

Steps 5 - 6:
