FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Backup Lamps >> Backup Lamp Inoperative - One Lamp

Backup Lamp Inoperative - One Lamp

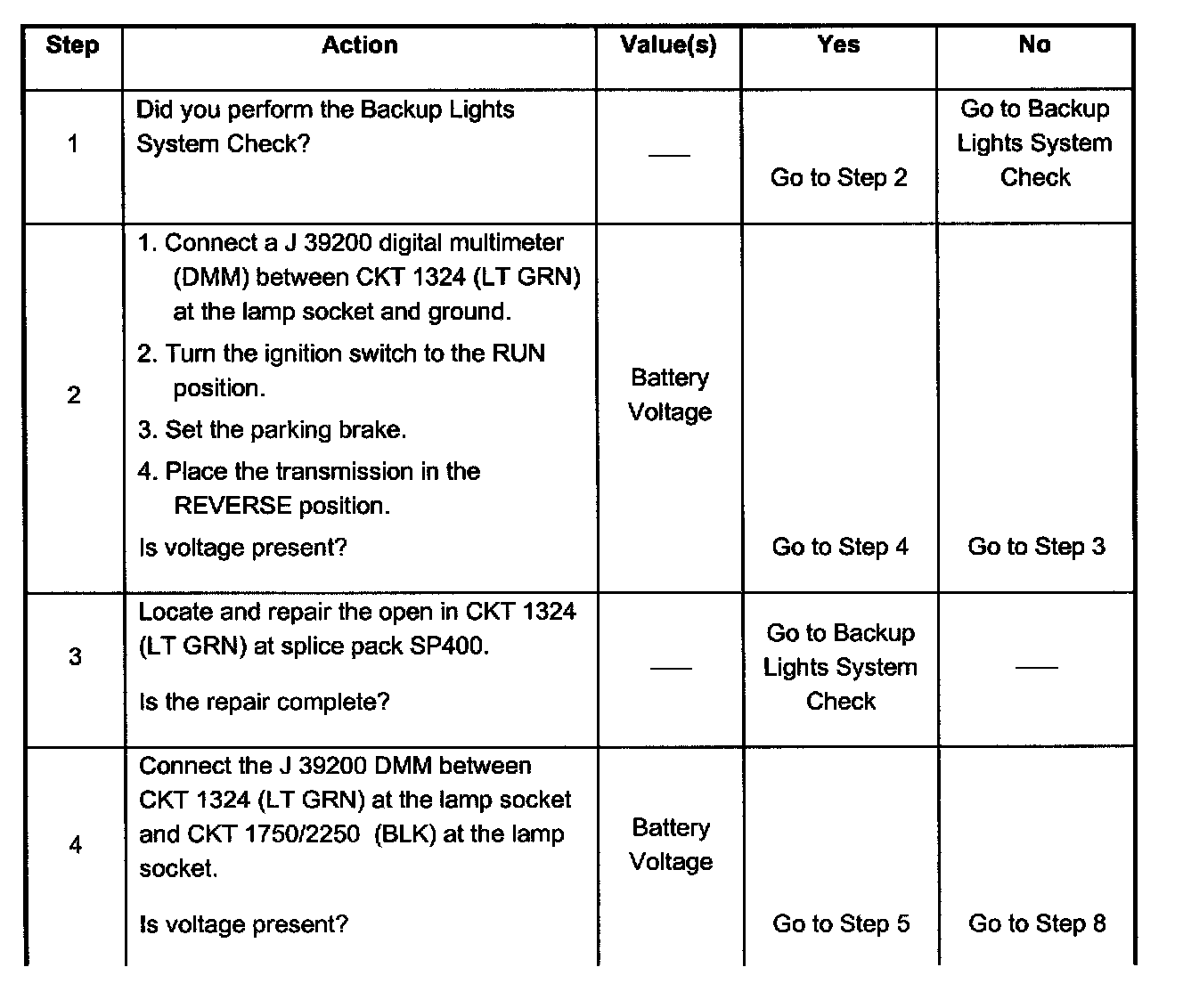

Steps 1 - 4:

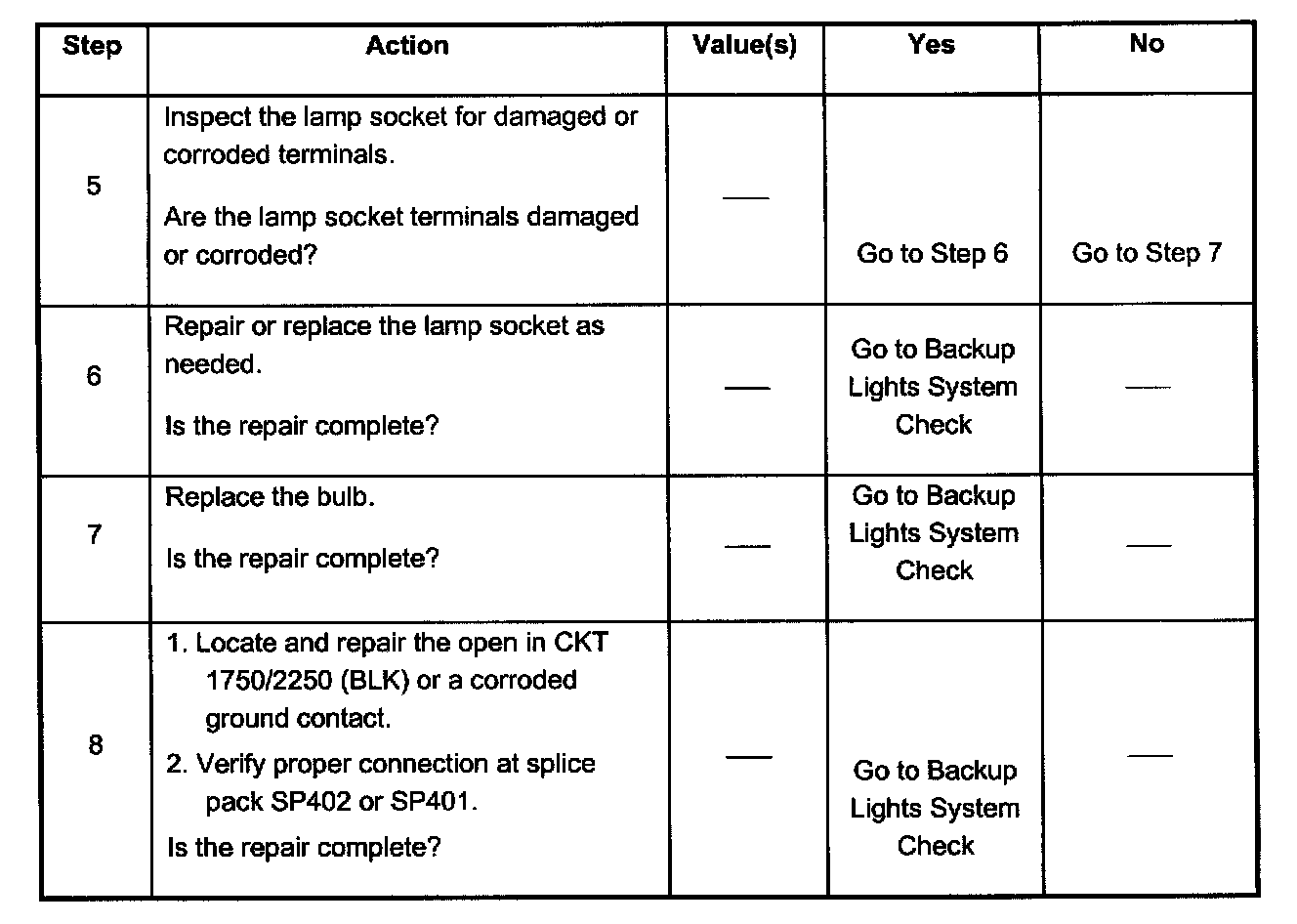

Steps 5 - 8:
