Ambient Light Sensor: Service and Repair

Removal Procedure

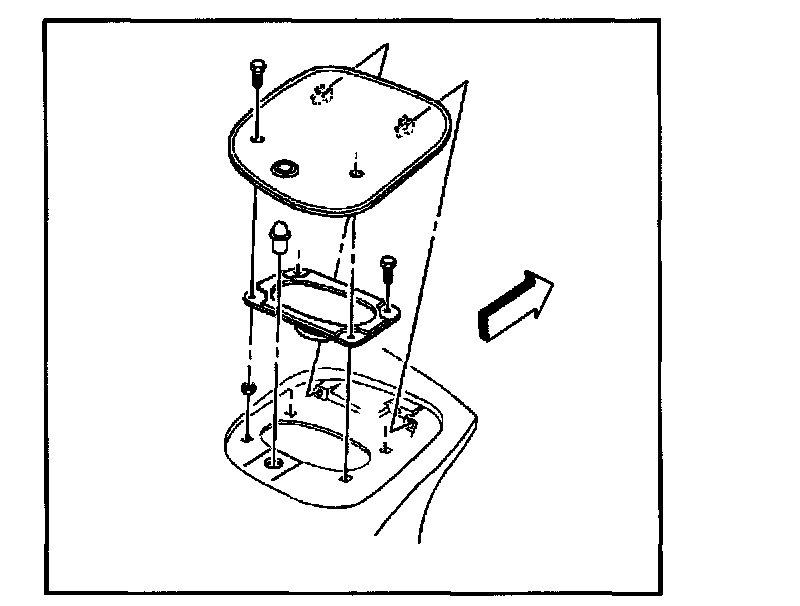

1. Remove the front speaker grille from the vehicle.

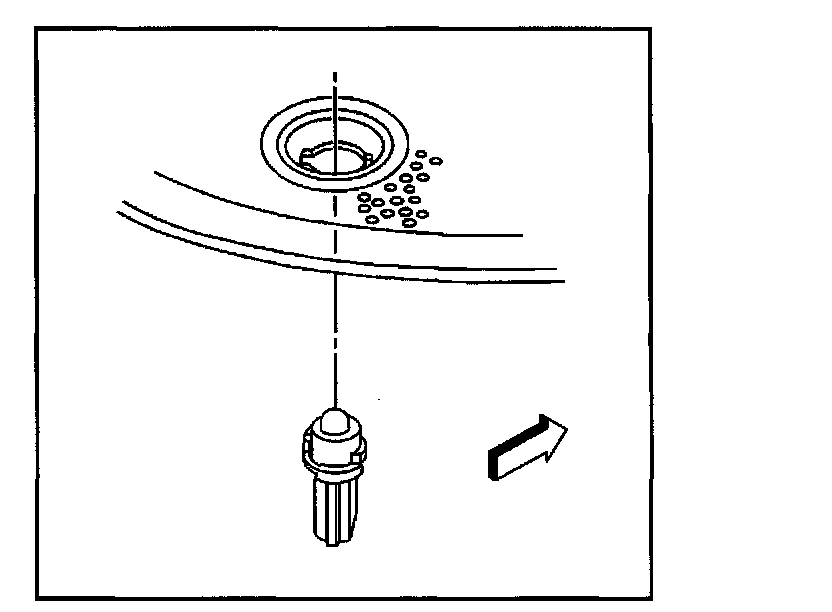

2. Turn the sensor counter-clockwise 1/4 turn to remove.
3. Disconnect the electrical connection from the DRL ambient light sensor.

Installation Procedure
1. Connect the electrical connection to the DRL ambient light sensor.




2. Insert the sensor and turn counter-clockwise 1/4 turn to seat.




3. Install the front speaker grille to the vehicle.
