Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Lighting and Horns >> License Plate Lamp >> Locations

License Plate Lamp: Locations

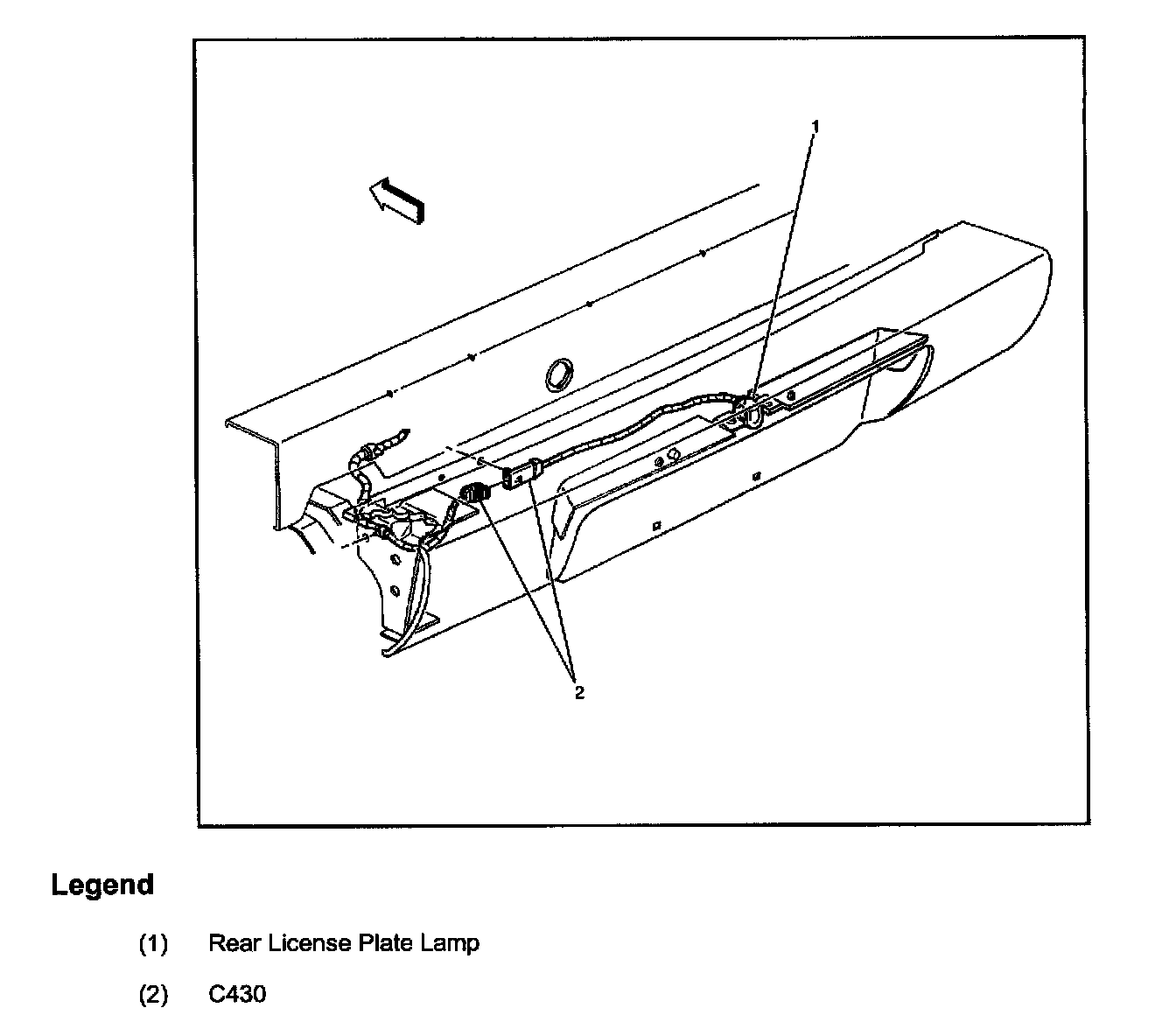

License Lamp Wiring (Fleetside Pickup):

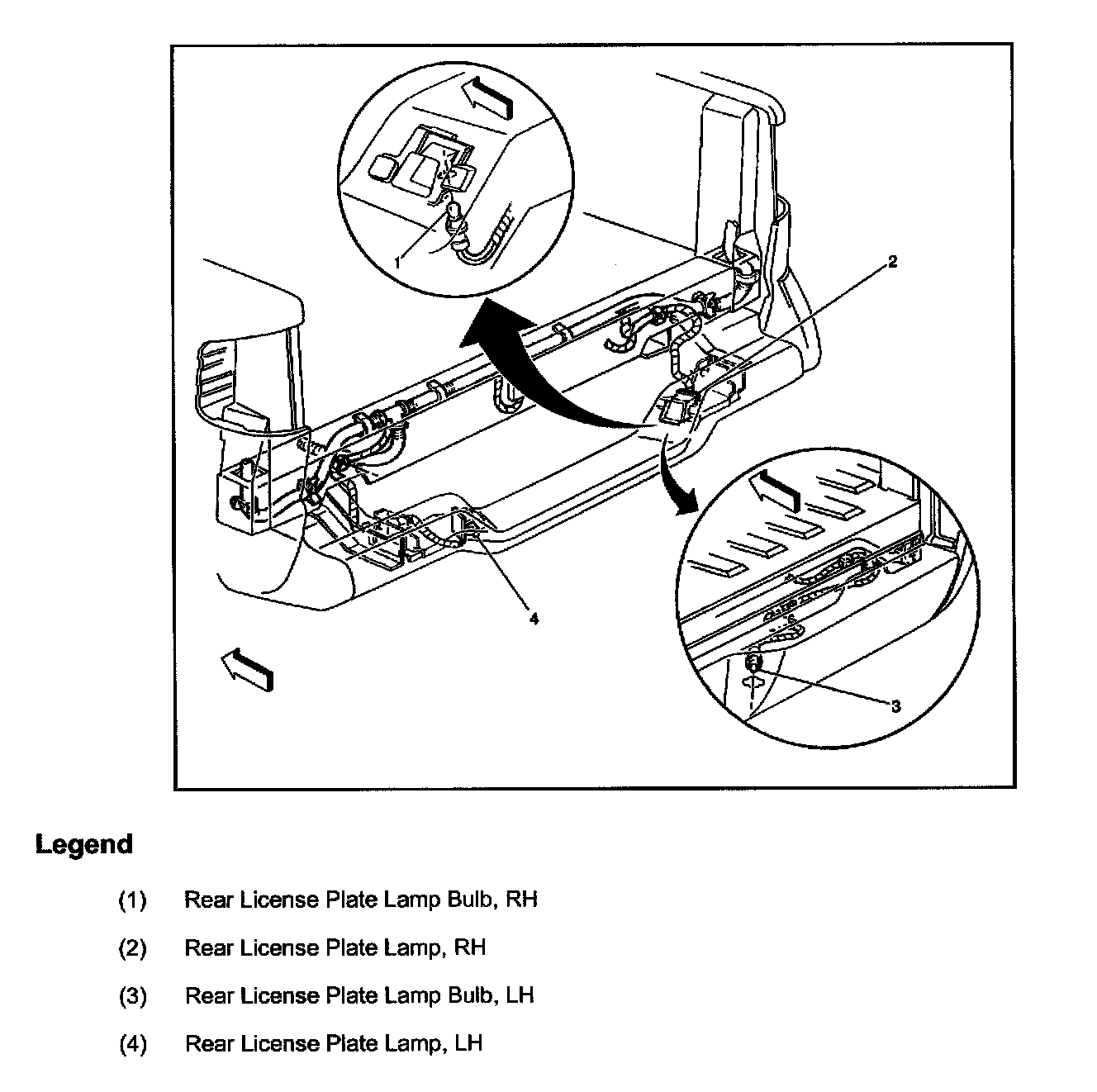

License Lamp Wiring (Sportside Pickup):
