Connector Views

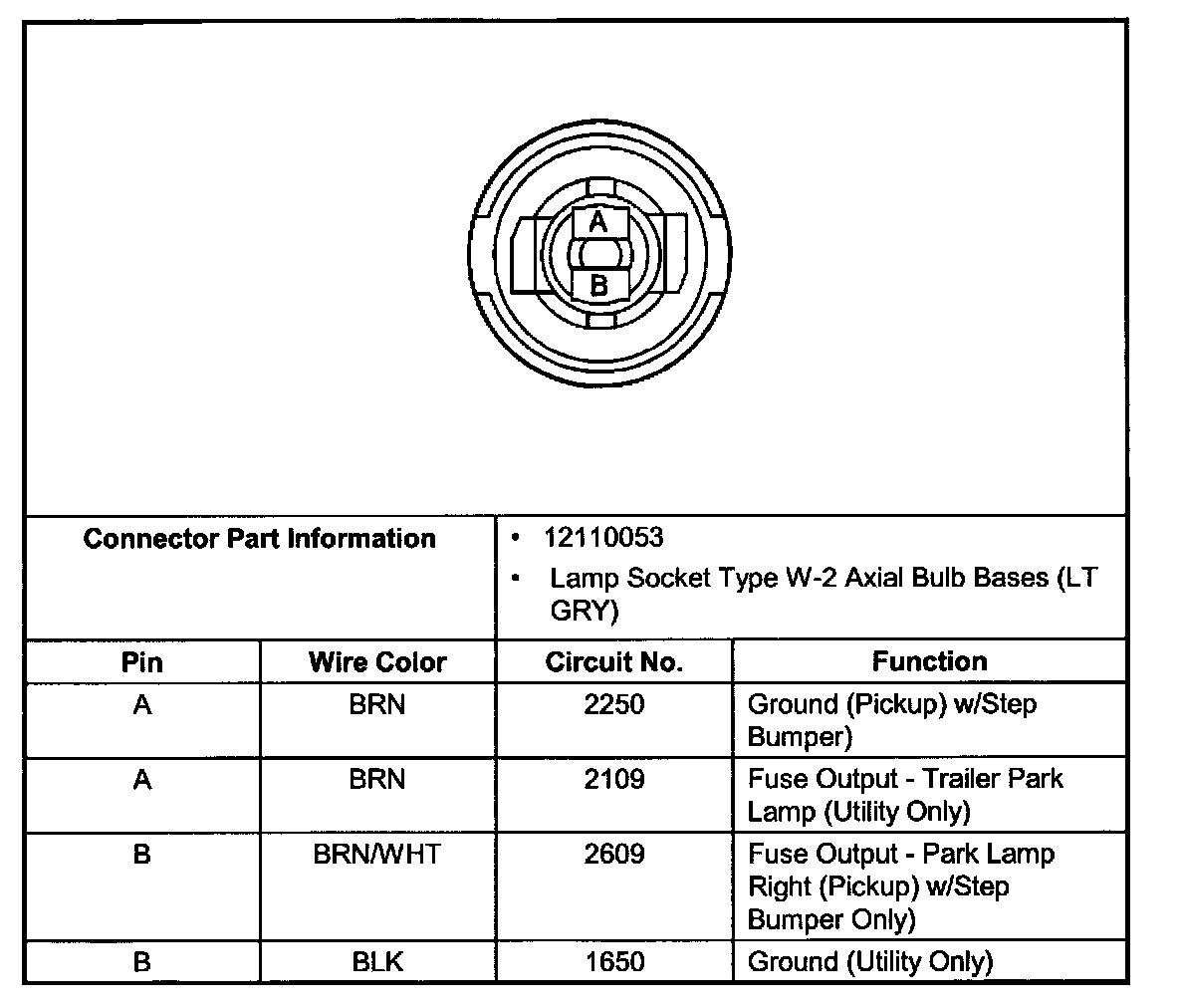

Lighting Systems Connector End Views - Rear Licence Plate Lamp, LH Connector (Pickup w/Step Bumper):

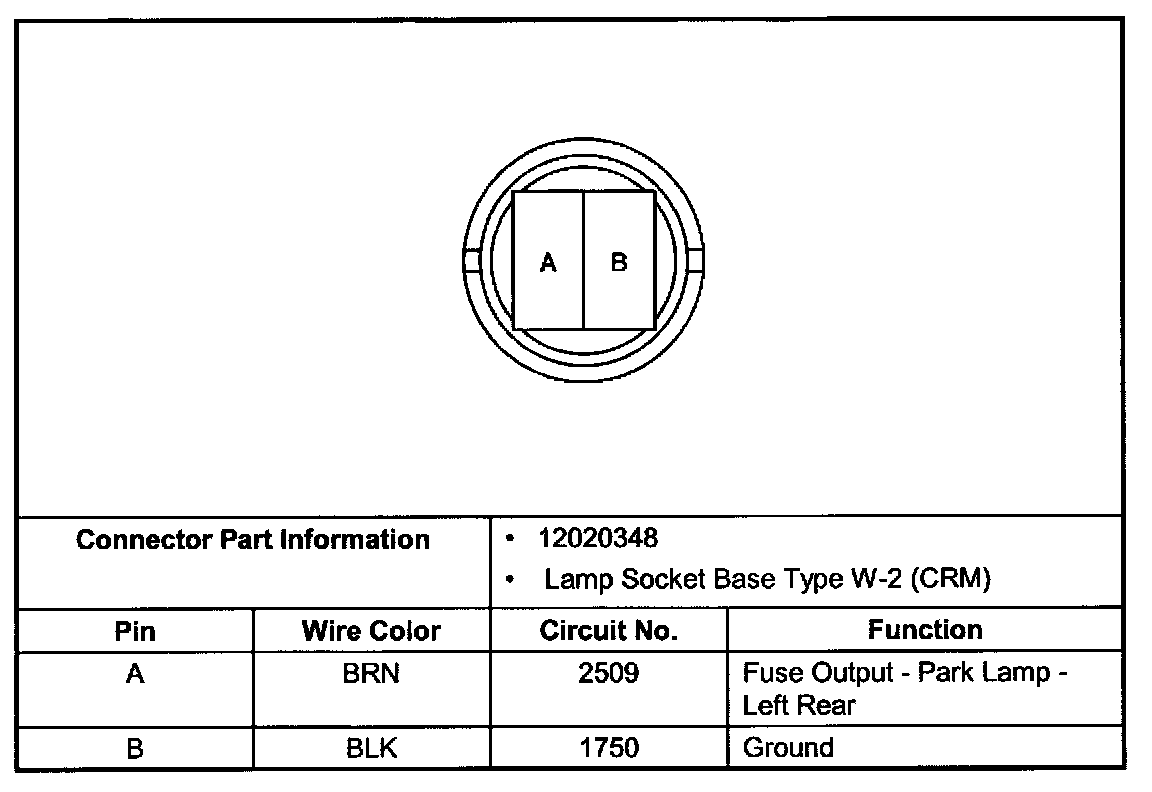

Lighting Systems Connector End Views - Rear Licence Plate Lamp, RH Connector (Pickup w/Step Bumper):

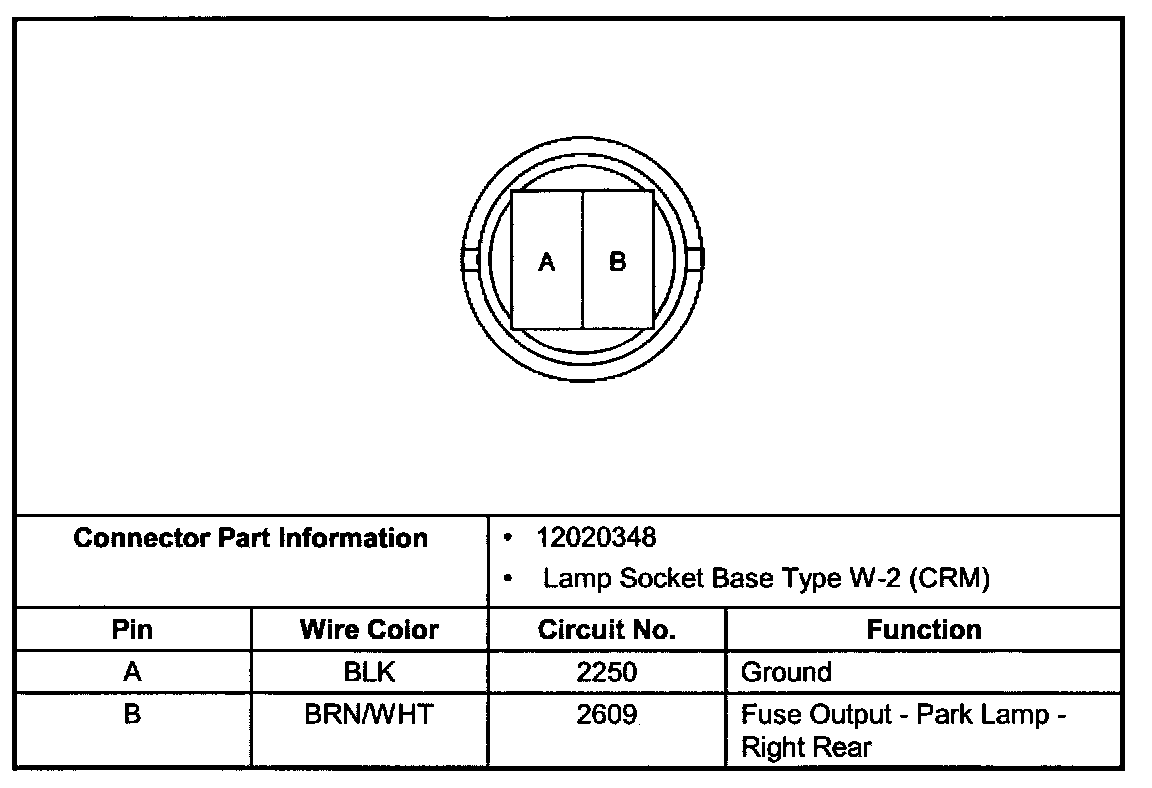

Lighting Systems Connector End Views - Rear Licence Plate Lamp, LH Connector (Pickup w/o Rear Step Bumper):

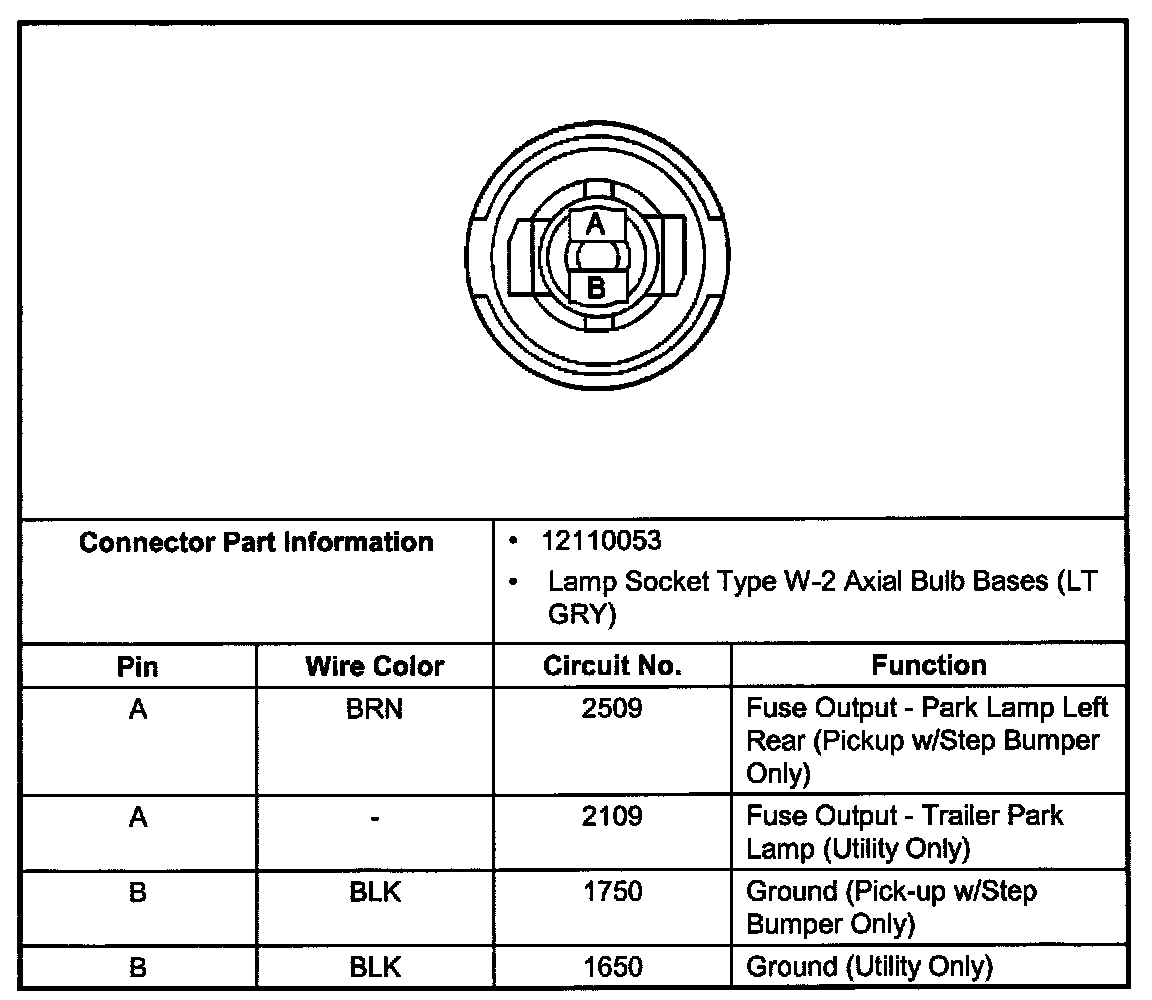

Lighting Systems Connector End Views - Rear Licence Plate Lamp, RH Connector (Pickup w/o Rear Step Bumper):
