Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Testing and Inspection >> Diagnosis By Symptom >> Horns Inoperative

Horns Inoperative

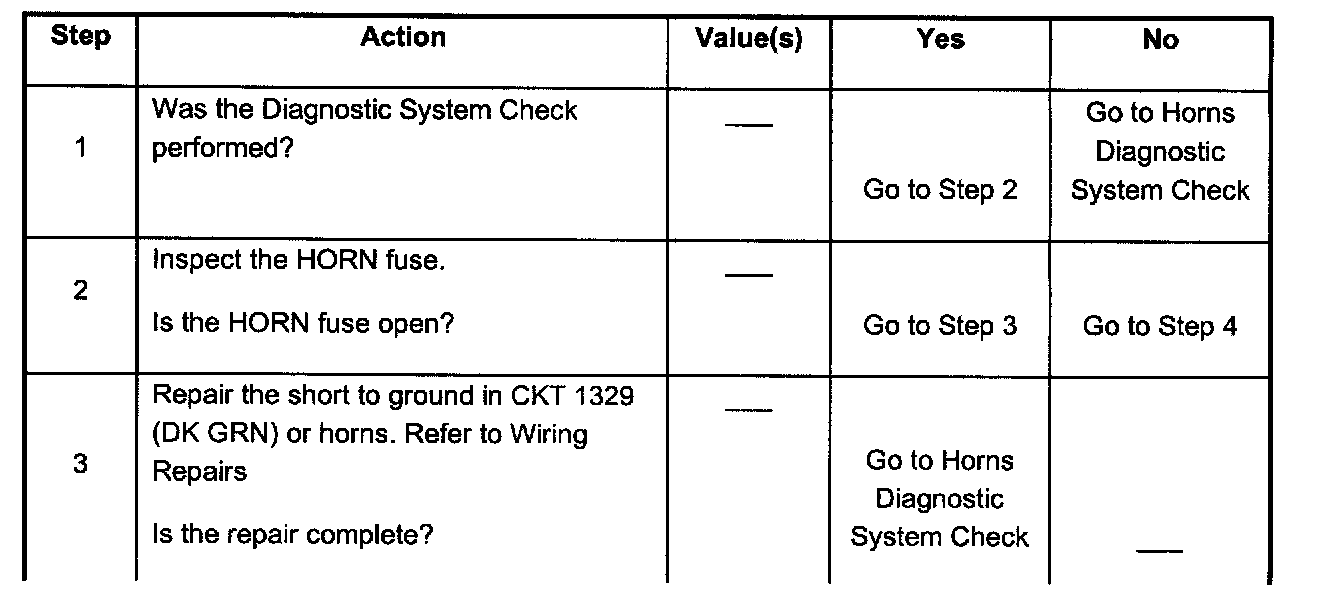

Steps 1 - 3:



Steps 4 - 10:

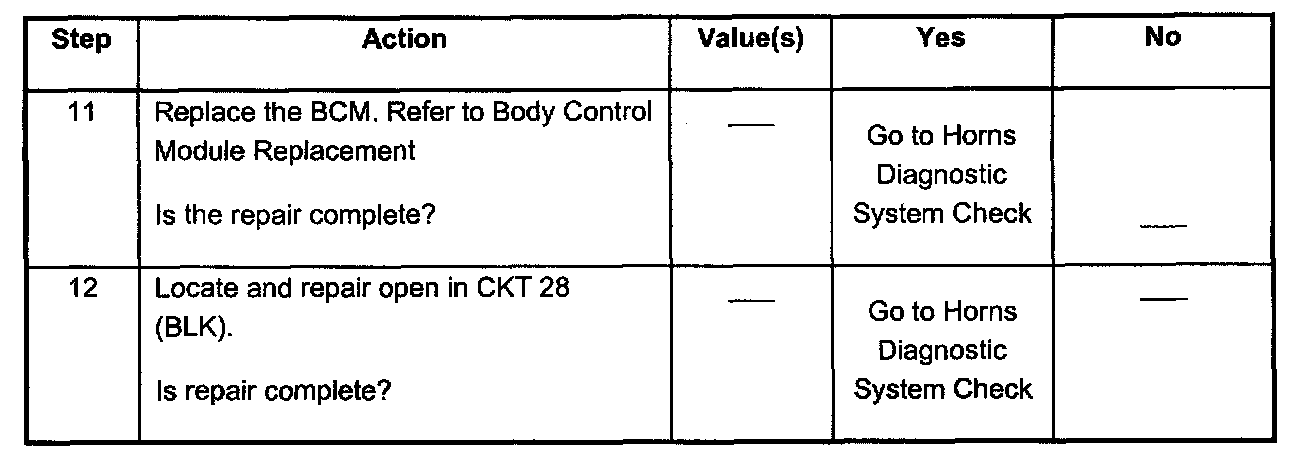

Steps 11 - 12:
