Ash Tray Lamp: Service and Repair

Removal Procedure

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the battery negative cable.




2. Remove the ash tray.
3. Remove the knee bolster.

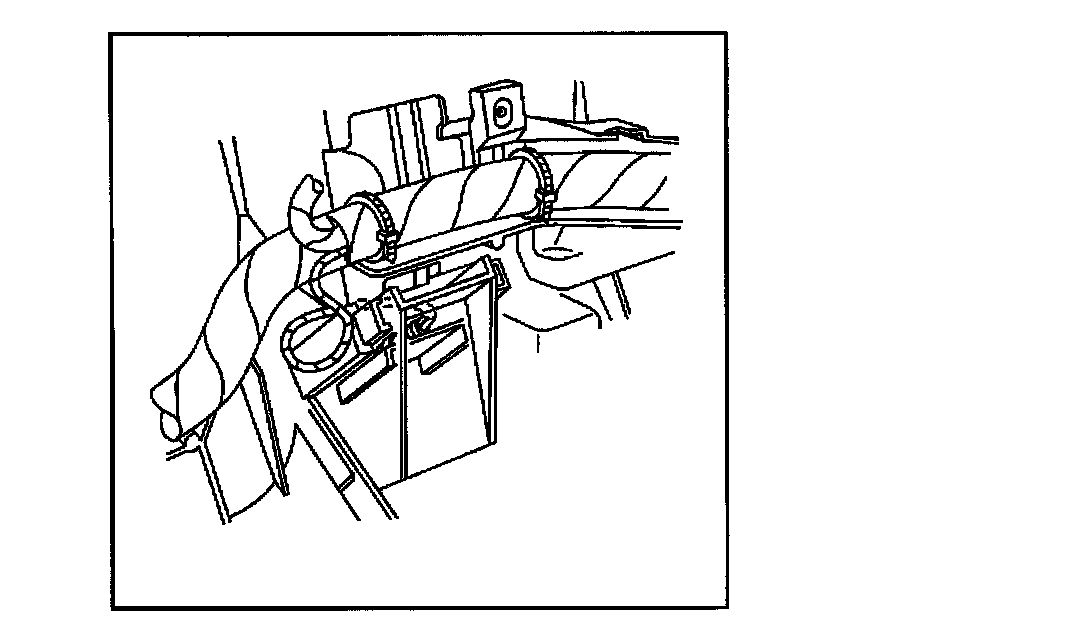

4. Remove the screws that retain the ash tray housing to the instrument panel.
5. Slide the ash tray housing forward.

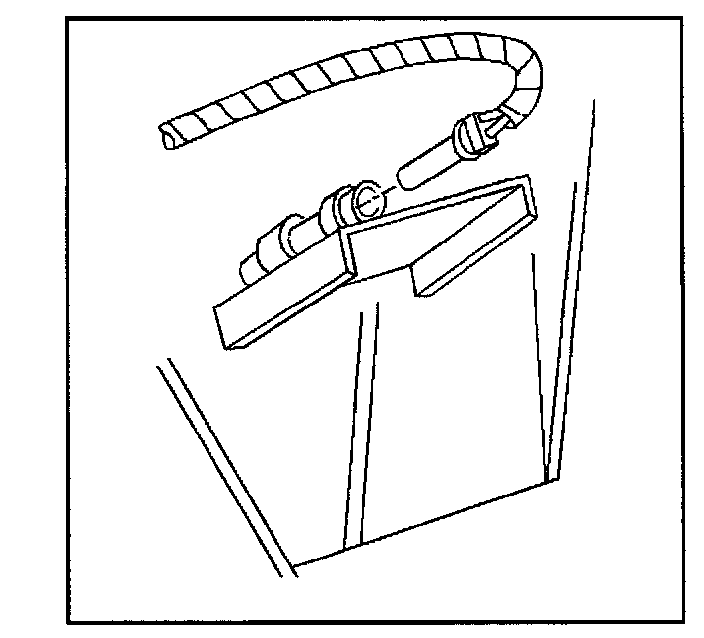

6. Perform the following steps in order to remove the bulb from the ash tray housing:
1. Squeeze the metal tangs on the bulb shield
2. Lift the bulb from the socket.

Installation Procedure




1. Install the bulb to the ash tray housing
- Insert the bulb into the socket.
- Squeeze the tangs on the bulb shield and push the bulb shield into the housing.




2. Slide the ash tray housing back into the instrument panel.

NOTE: Refer to Fastener Note in Service Precautions.

3. Install the screws that retain the ash tray housing to the instrument panel.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).

4. Install the knee bolster.
5. Install the ash tray.
6. Connect the battery negative cable.
