Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Non Trouble Code Diagnostic Procedures >> Instrument Cluster System Check

Instrument Cluster System Check

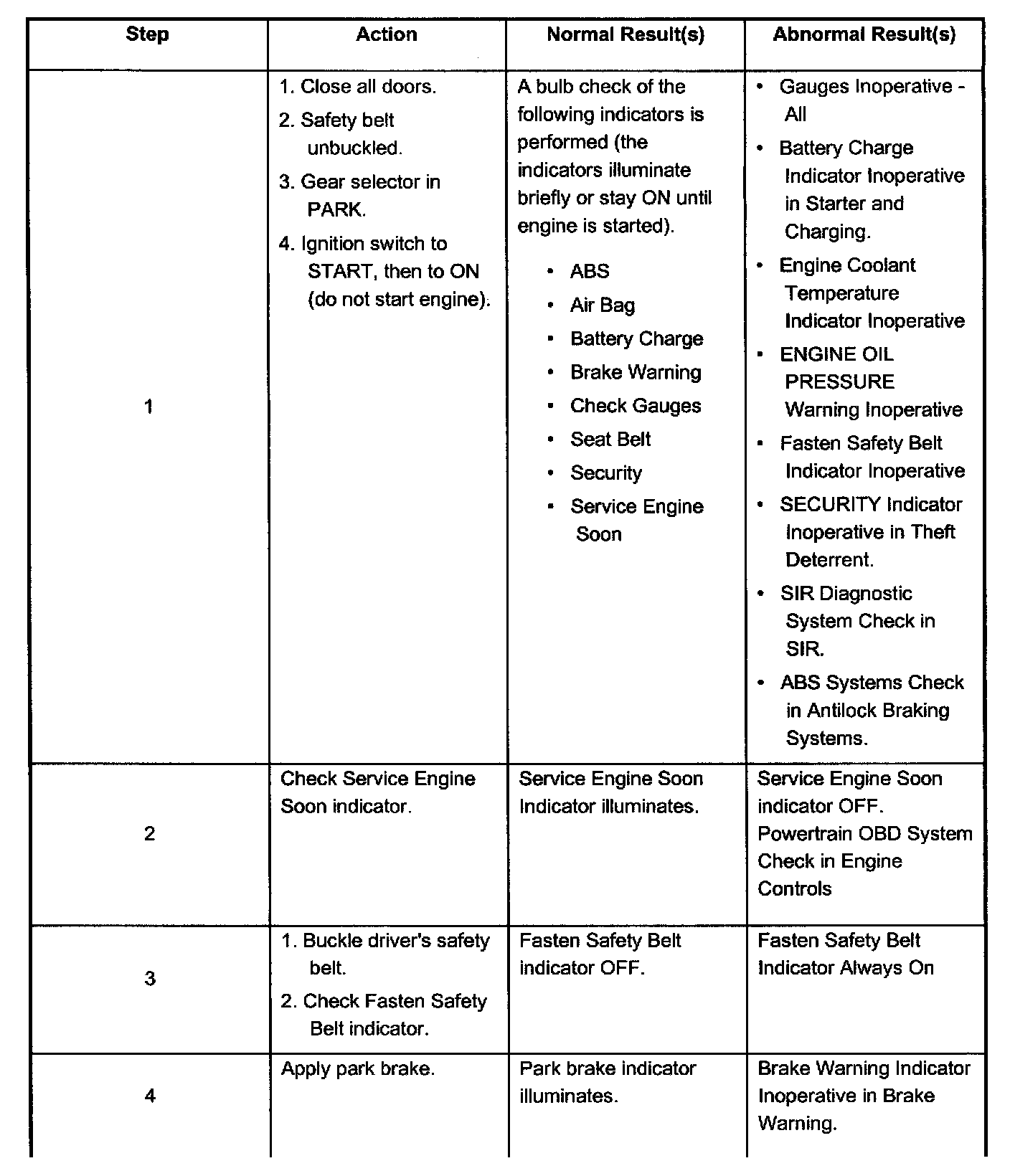

Steps 1 - 4:

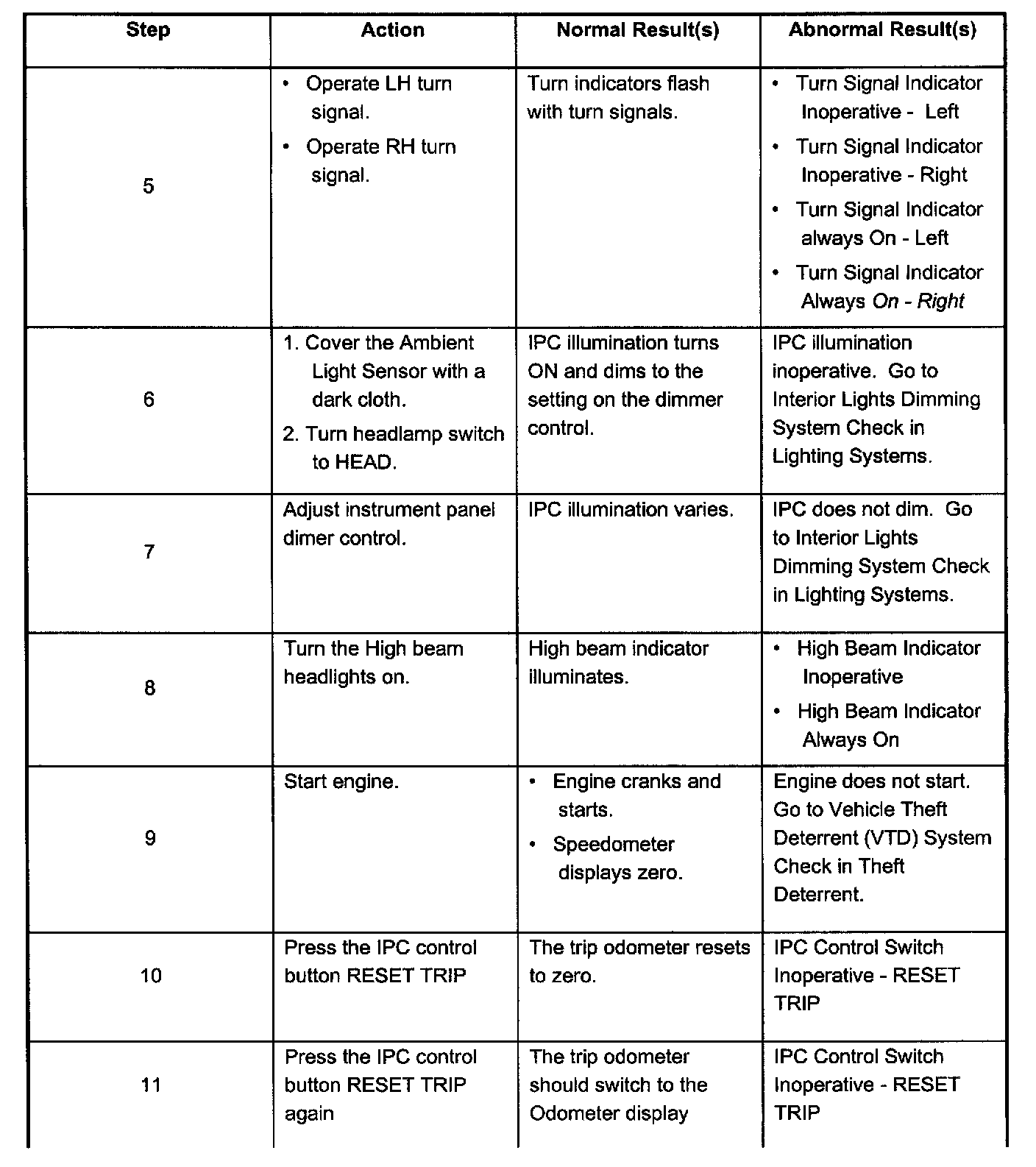

Steps 5 - 11:



Steps 12 - 20:

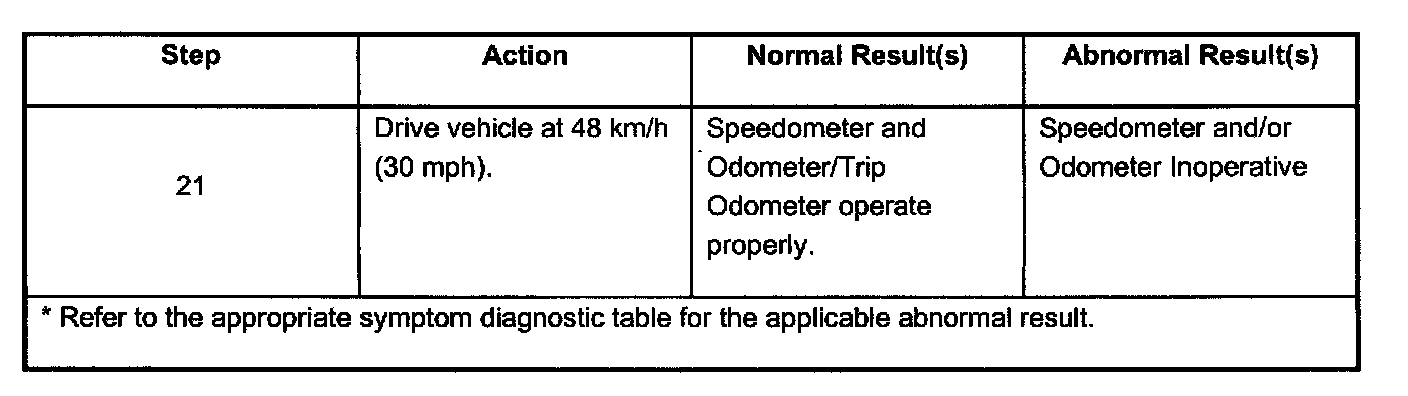

Step 21:
