Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Non Trouble Code Diagnostic Procedures >> Diagnosis By Symptom >> ENG Oil Pressure Gauge Inaccurate or Inoperative

ENG Oil Pressure Gauge Inaccurate or Inoperative

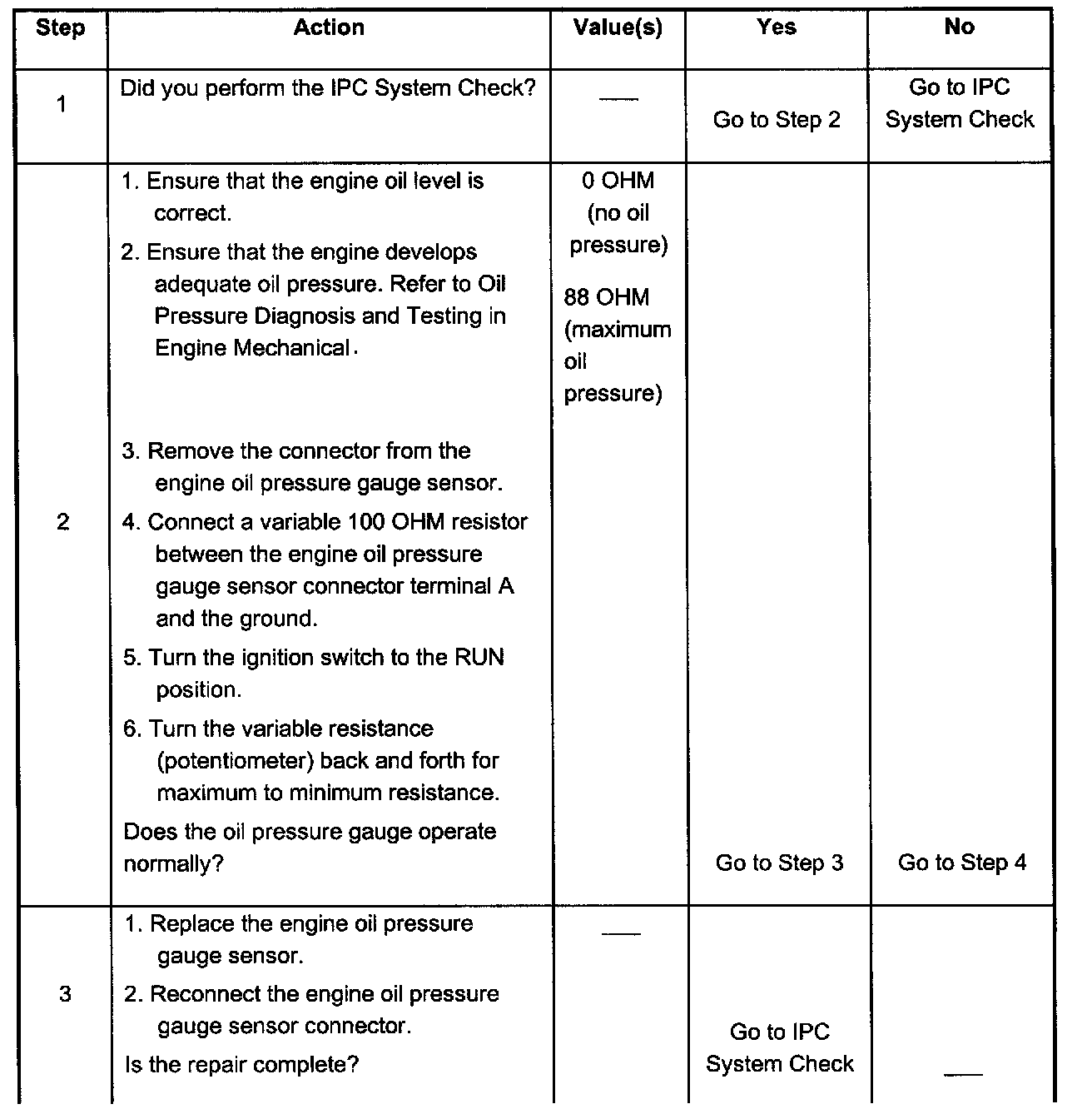

Steps 1 - 3:

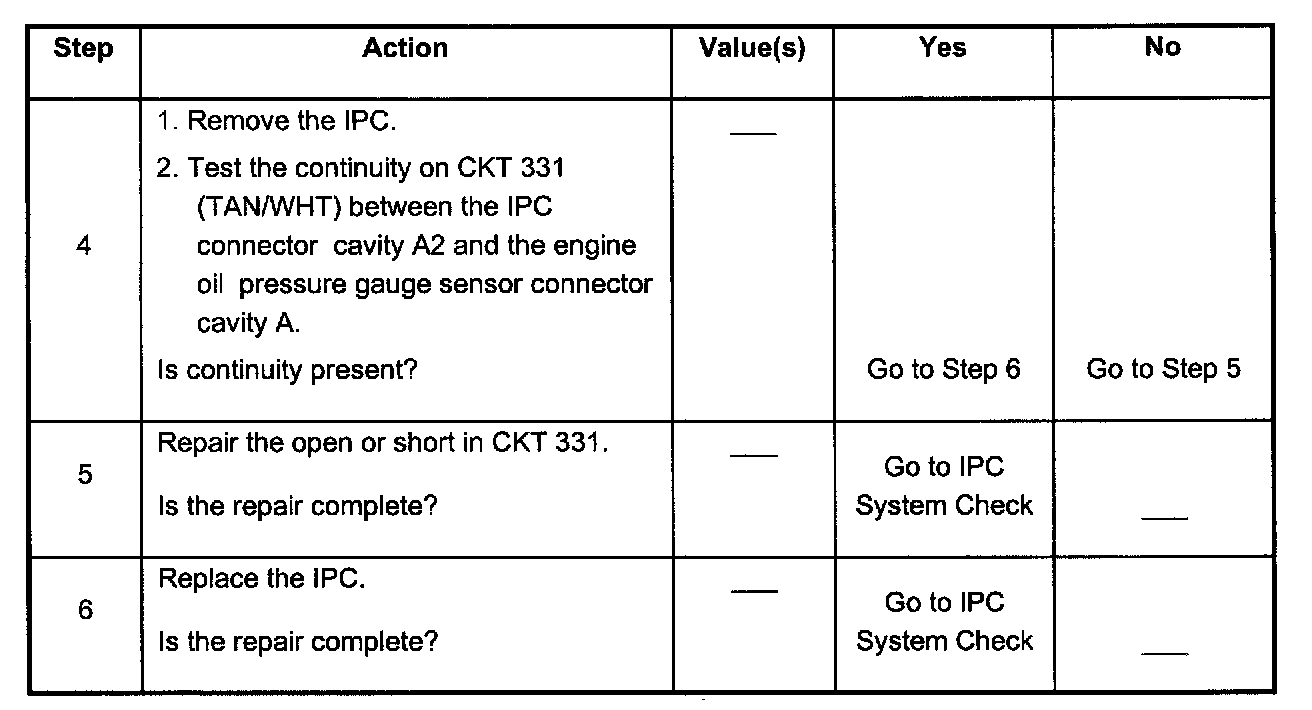

Steps 4 - 6:
