Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Testing and Inspection >> Diagnosis By Symptom >> Key-In-Ignition Chime Inoperative

Key-In-Ignition Chime Inoperative

Steps 1 - 7:



Steps 8 - 13:

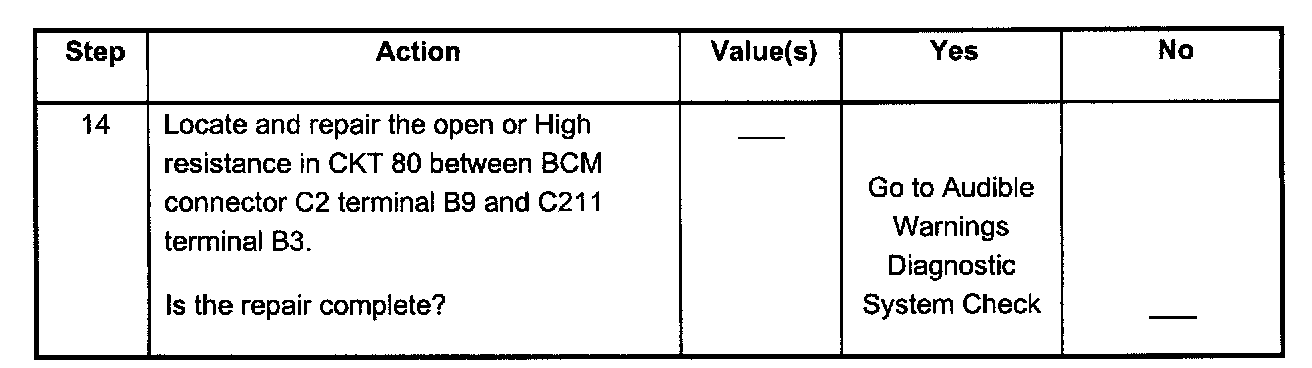

Step 14:
