Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Testing and Inspection >> Diagnosis By Symptom >> Fasten Safety Belt Chime Inoperative

Fasten Safety Belt Chime Inoperative

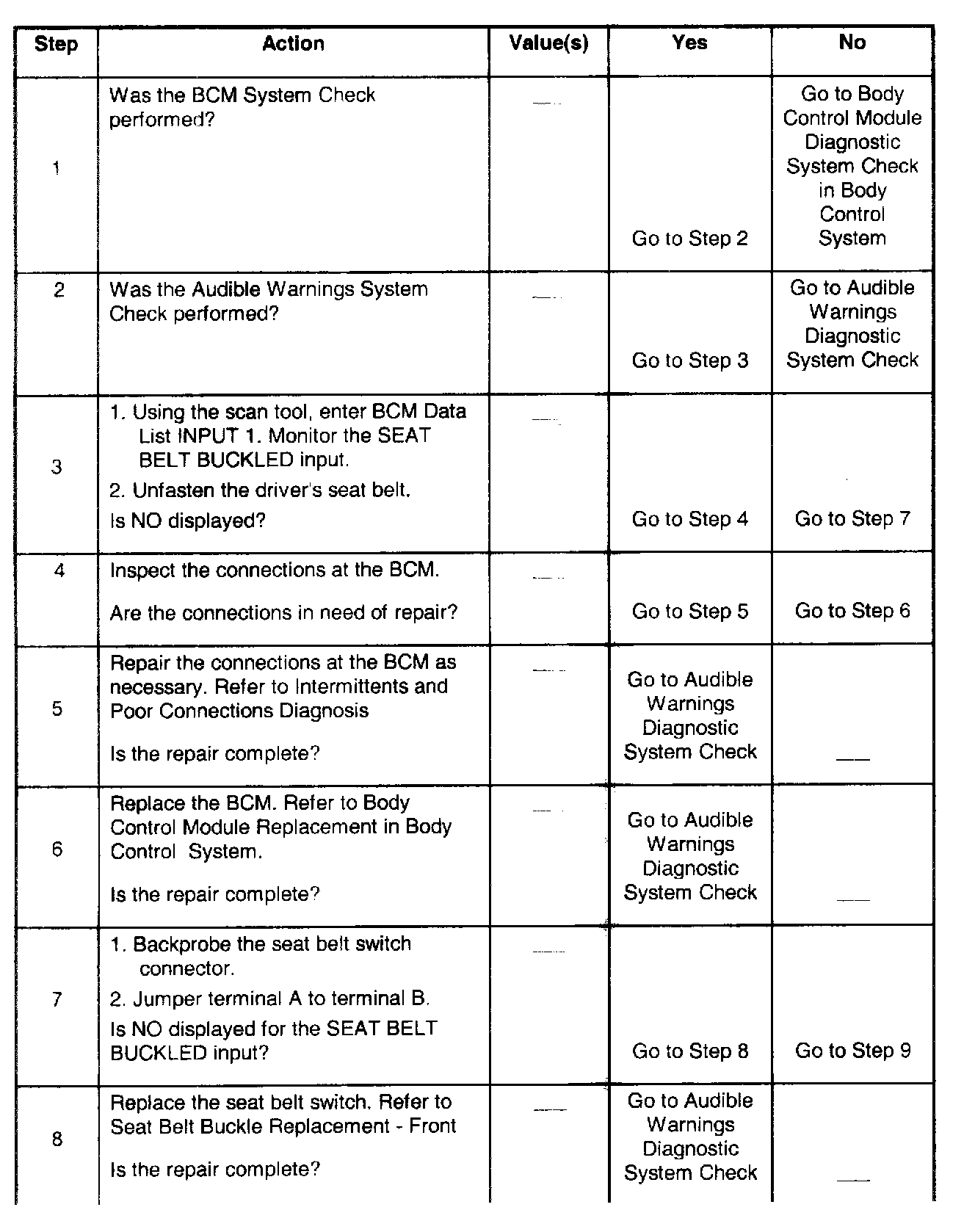

Steps 1 - 8:



Steps 9 - 12:
