Vacuum Reservoir HVAC: Service and Repair

Vacuum Tank Replacement

Removal Procedure

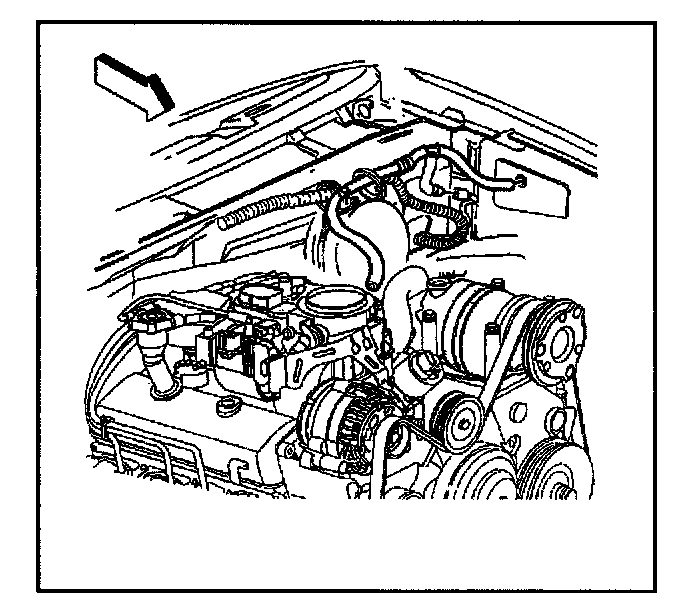

1. Disconnect the vacuum hose(s).




2. Using a flat-bladed tool, depress the retainer tabs in order to remove the vacuum tank

Installation Procedure




1. Install the vacuum tank. Ensure that the retaining tabs lock into place.




2. Install the vacuum hose(s).
