Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Blower/Fan Motor >> Blower Motor - Operates Continuously >> With A/C

With A/C

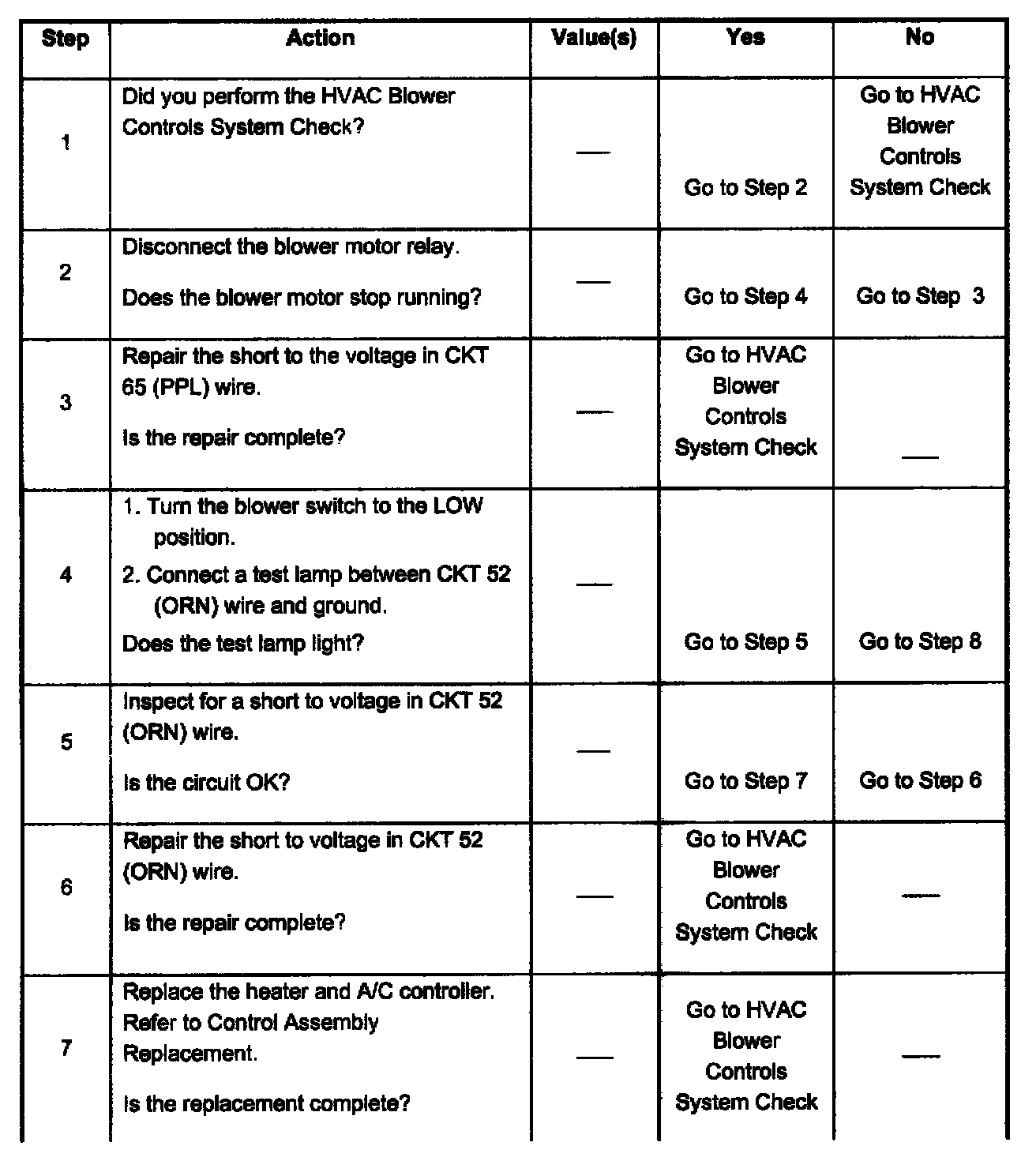

Steps 1 - 7:



Step 8:
