Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Blower/Fan Motor >> Blower Motor - Inoperative

Blower Motor - Inoperative

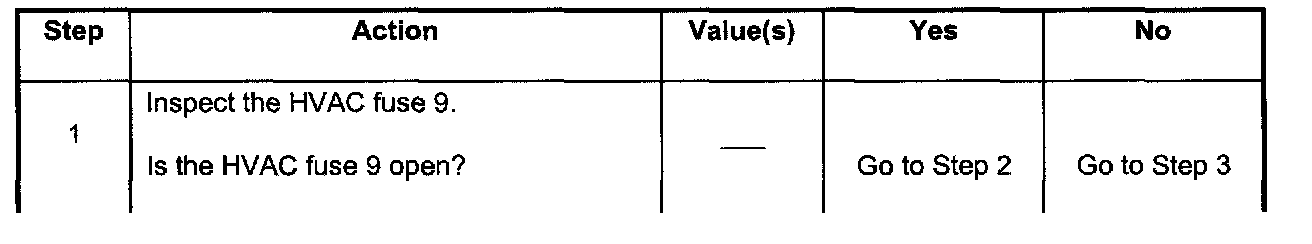

Step 1:

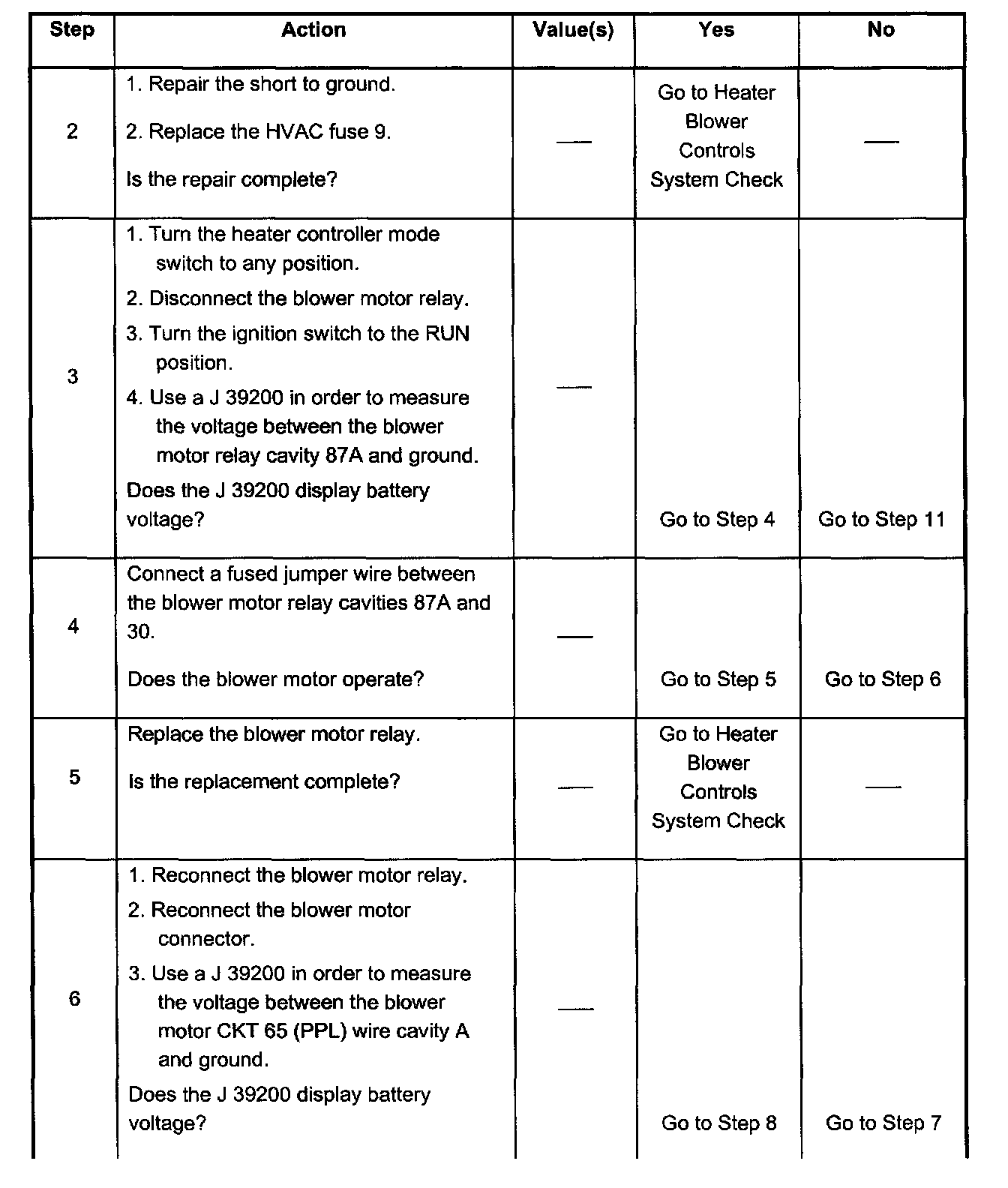

Steps 2 - 6:

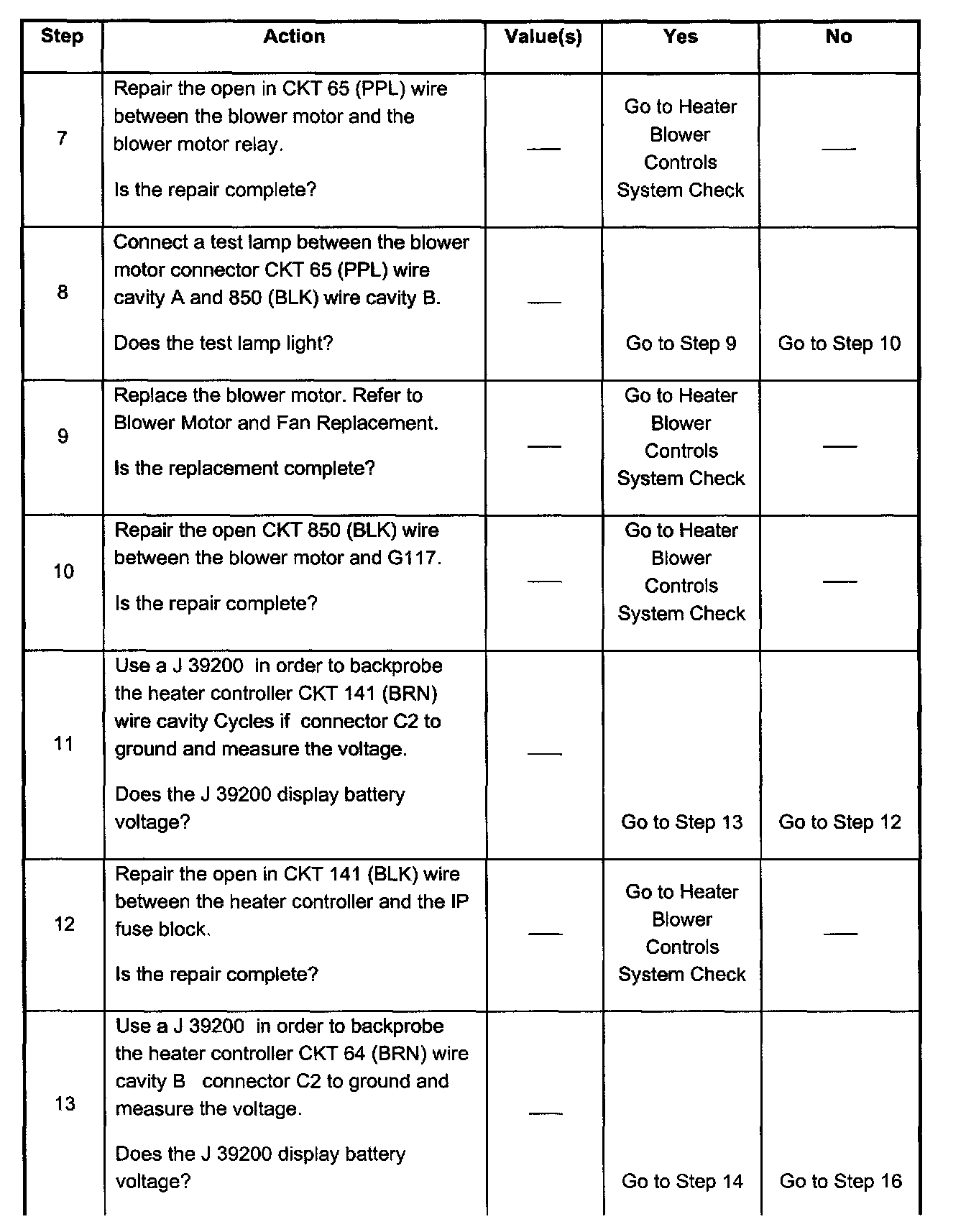

Steps 7 - 13:

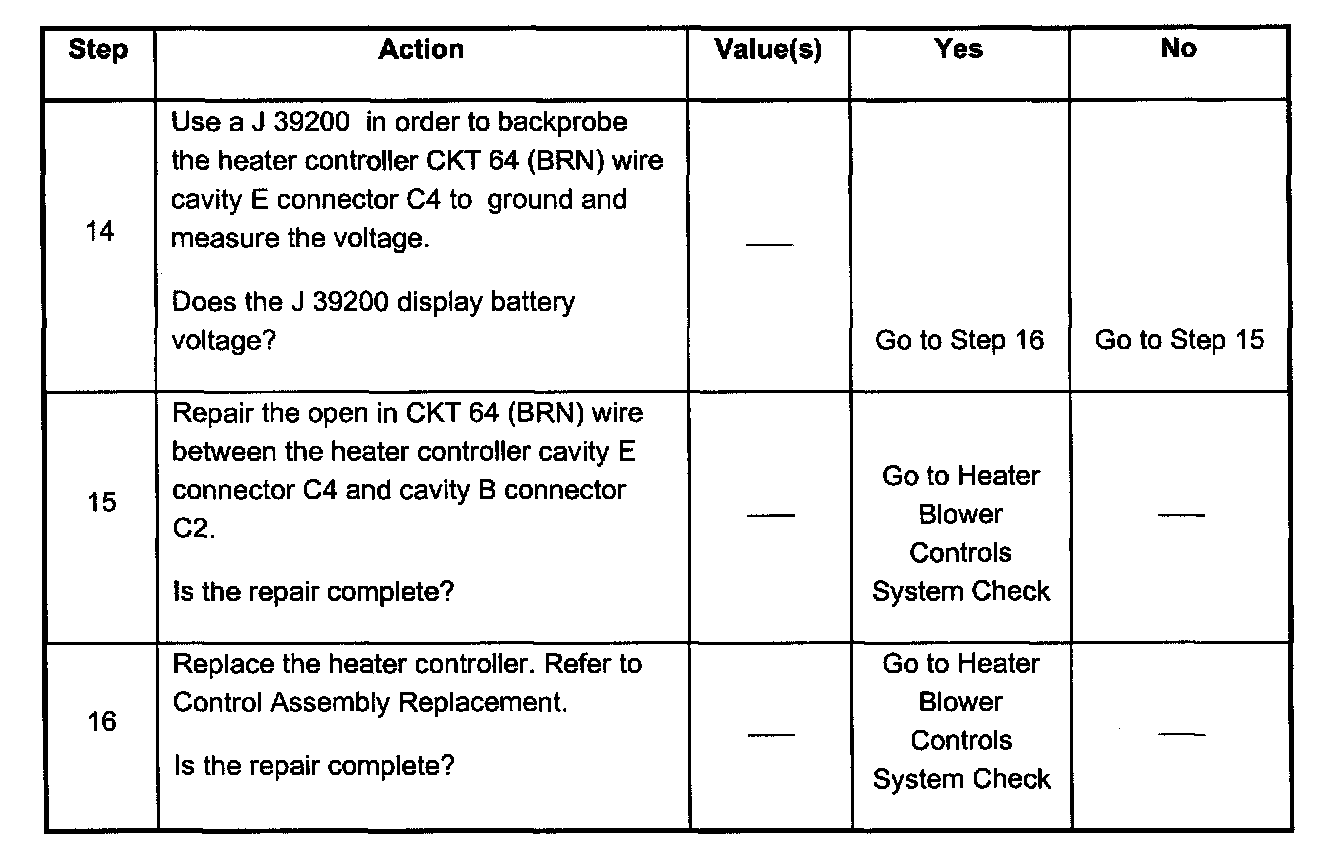

Steps 14 - 16:
