Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Air Delivery System Check (HVAC)

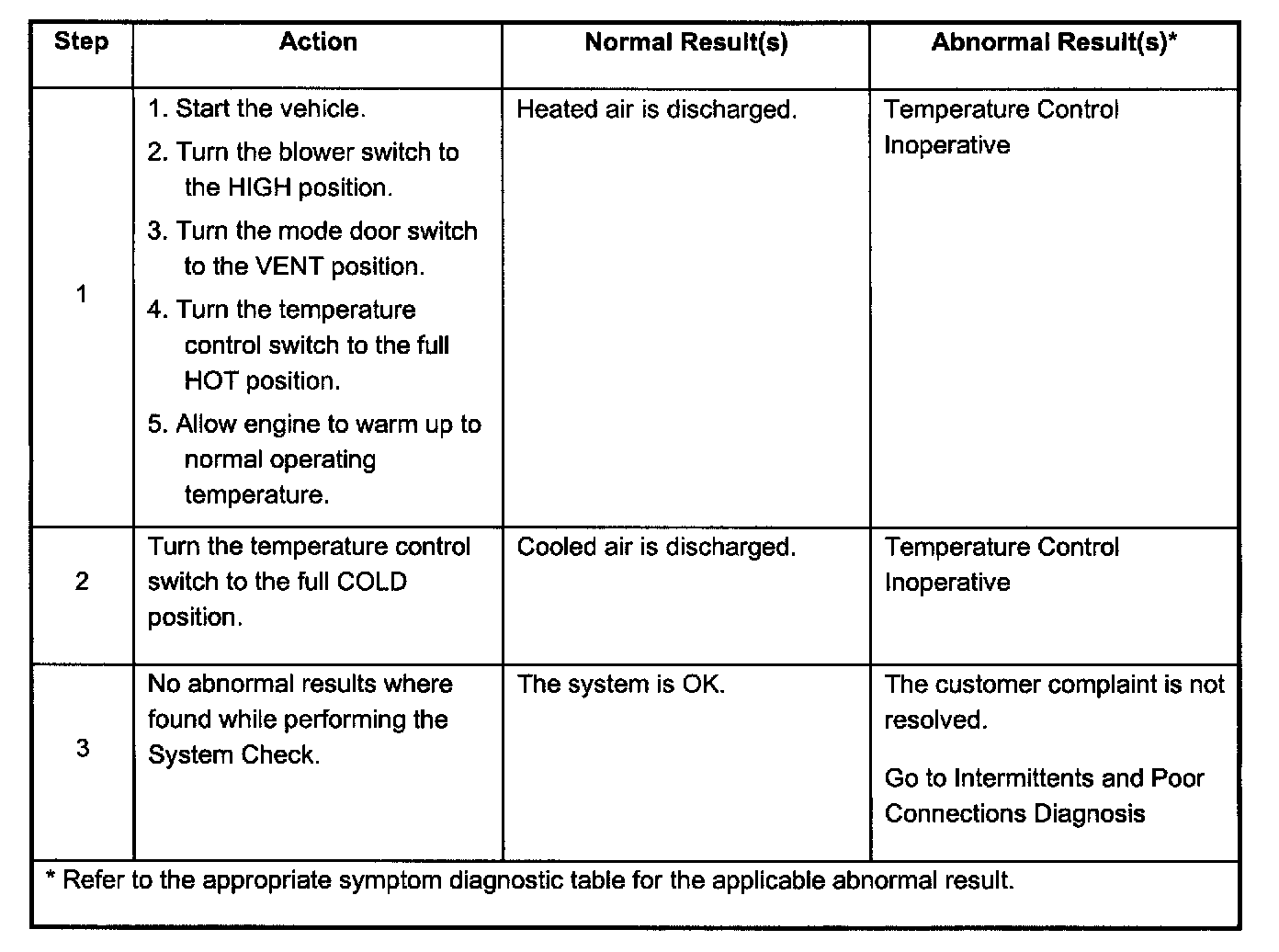

Air Delivery System Check (HVAC)

Steps 1 - 3:
