Air Register: Service and Repair
Air Outlet Replacement - DefrosterWITH A/C

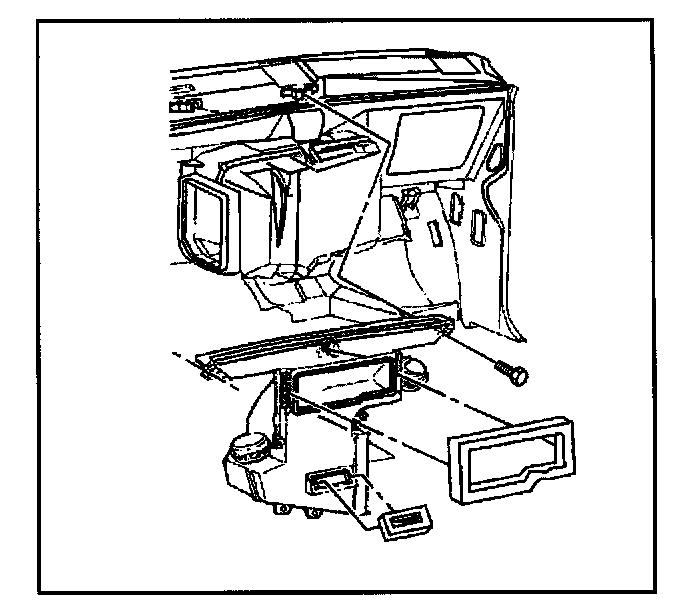

Removal Procedure
1. Remove the air distributor duct.
2. Remove the vacuum connectors, as necessary.
3. Remove the windshield defroster nozzle screws.
4. Remove the windshield defroster nozzle from the heater assembly.
Installation Procedure
1. Install the windshield defroster nozzle to the heater assembly.
NOTE: Refer to Fastener Note in Service Precautions.
2. Install the windshield defroster nozzle screws.
Tighten
Tighten the screws to 2 N.m (18 lb in).
3. Install the vacuum connectors, as necessary.
4. Install the air distributor duct.
WITHOUT A/C
Removal Procedure
1. Remove the instrument panel.
2. Disconnect the vacuum connectors, as necessary.
3. Remove the windshield defroster nozzle screws.
4. Remove the windshield defroster nozzle from the heater assembly.
Installation Procedure
1. Install the windshield defroster nozzle to the heater assembly.
NOTE: Refer to Fastener Note in Service Precautions.
2. Install the windshield defroster nozzle screws.
Tighten
Tighten the screws to 2 N.m (18 lb in).
3. Connect the vacuum connectors, as necessary.
4. Install the instrument panel.
