Air Distributor Duct
Air Distributor Duct ReplacementWITH A/C

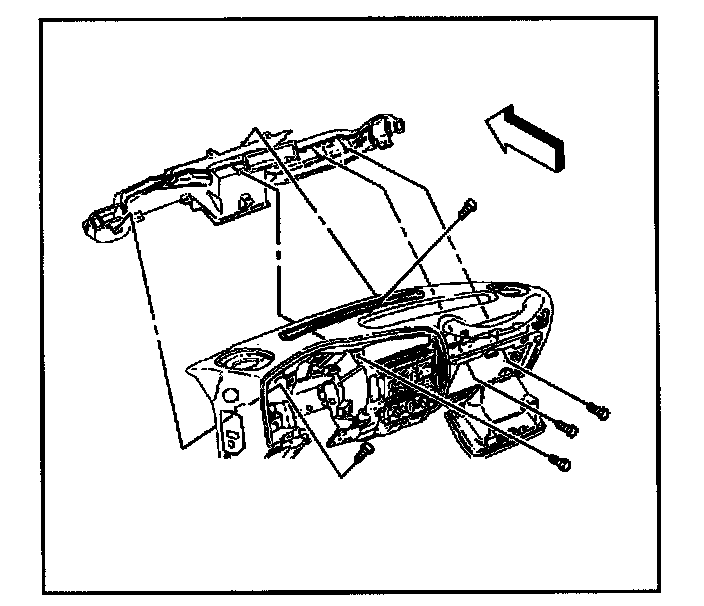

Removal Procedure
1. Remove the instrument panel.
2. Remove the air distributor duct screws.
3. Remove the air distributor duct.
Installation Procedure
1. Install the air distributor duct.
NOTE: Refer to Fastener Note in Service Precautions.
2. Install the air distributor dust screws.
Tighten
Tighten the screws to 1.9 N.m (17 lb in).
3. Install the instrument panel.
WITHOUT A/C
Removal Procedure
1. Remove the instrument panel.
2. Remove the air distributor duct screws.
3. Remove the air distributor duct.
Installation Procedure
1. Install the air distributor duct.
NOTE: Refer to Fastener Note in Service Precautions.
2. Install the air distributor duct screws.
Tighten
Tighten the screws to 1.9 N.m (17 lb in).
3. Install the instrument panel.
