Heater Hoses

Removal Procedure

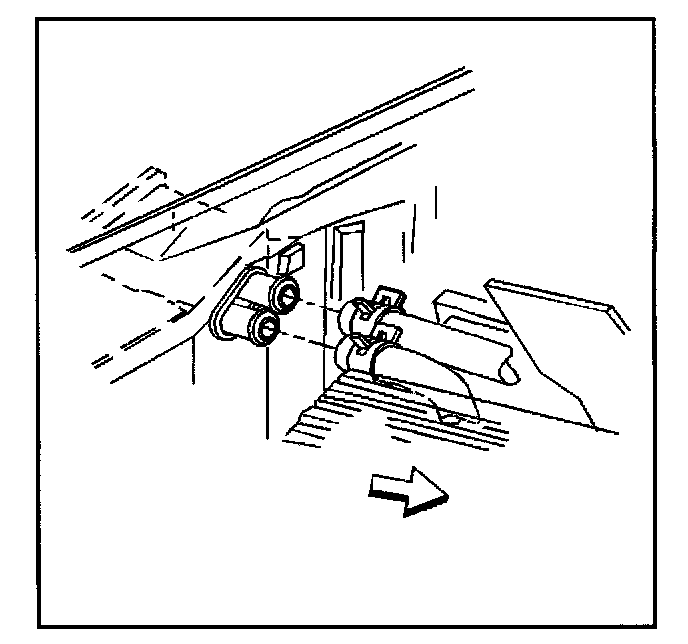

1. Drain the engine coolant.

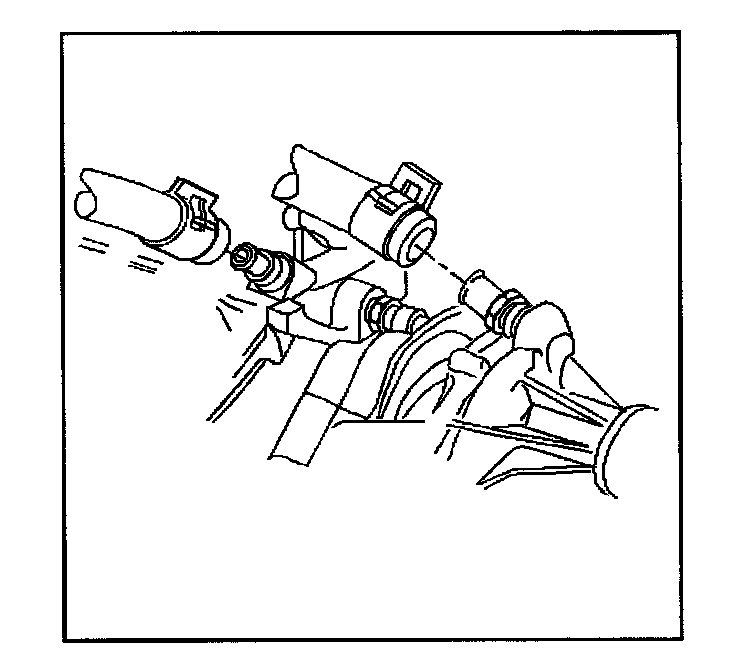

2. Disconnect the heater inlet hose from the heater hose fitting.




3. Remove the heater inlet hose from the heater core.




4. Disconnect the heater outlet hose from the heater hose fitting.




5. Remove the heater outlet hose from the heater core.

Installation Procedure




1. Connect the heater outlet hose to the heater core.




2. Connect the heater outlet hose to the heater hose fitting.




3 Connect the heater inlet hose to the heater core.




4. Connect the heater inlet hose to the heater hose fitting.
5. Install the engine coolant.
6. Check the system for leaks.
