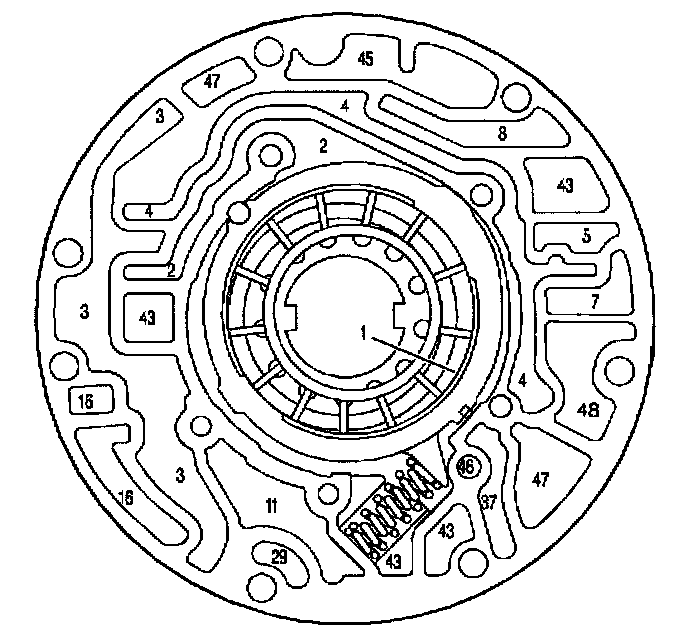

Pump Body Fluid Passages (Pump Cover Side)

Pump Body Fluid Passages (Pump Cover Side)
(1) Suction (Intake)
(2) Decrease
(3) Line
(4) Converter Feed
(5) Release
(7) To Cooler
(8) Lube from Cooler
(11) Torque Signal
(16) Reverse Input
(29) 3-4 Clutch
(37) Overrun Clutch
(43) Exhaust
(45) Vent
(46) Seal Drain
(47) Void
(48) Regulated Apply
