Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Vanity Lamp

Vanity Lamp

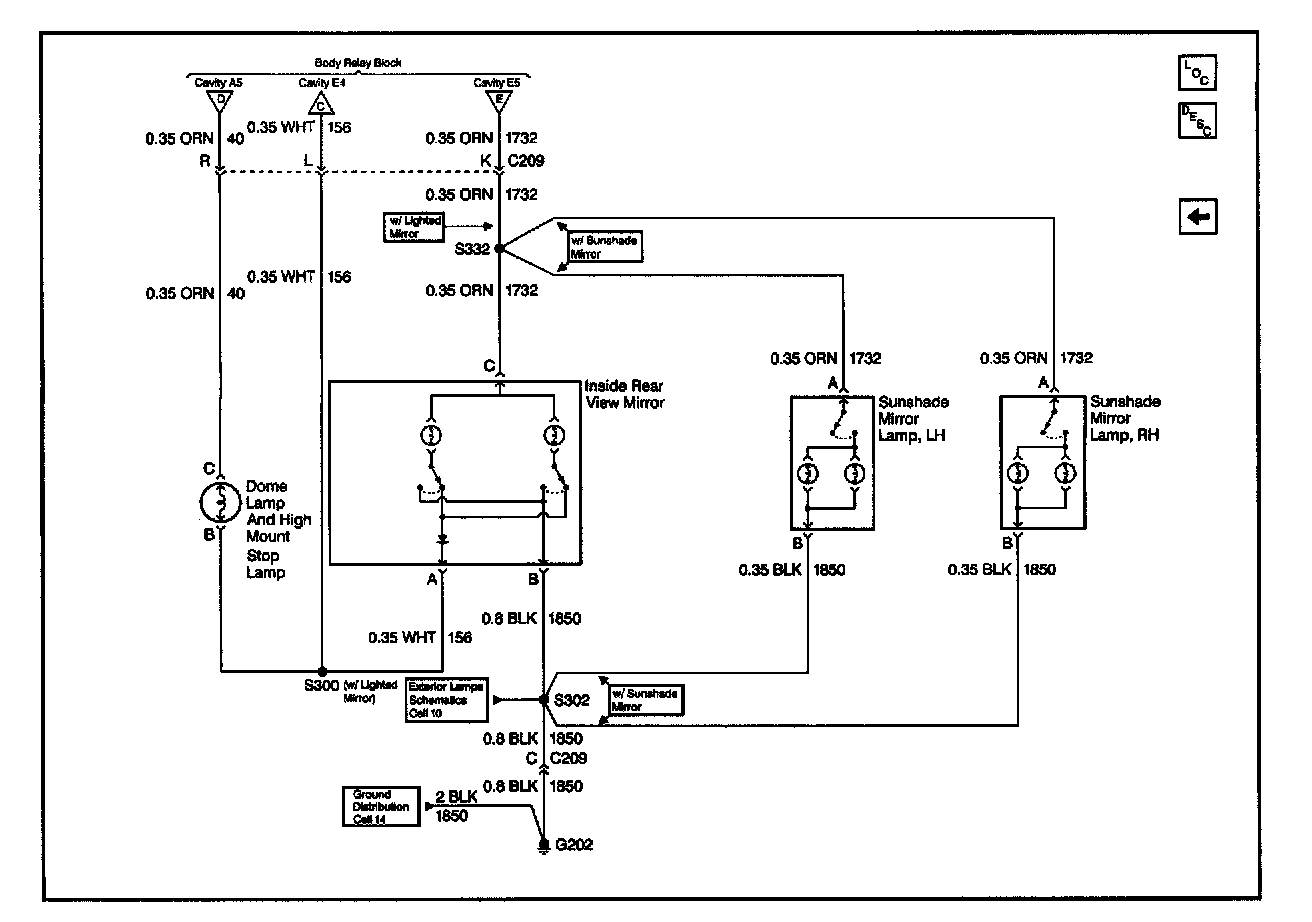

Interior Lights Schematics - Cell 114: Inside Rear View Mirror and Sunshade Mirror Lamps:
