Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Underhood Lamp

Underhood Lamp

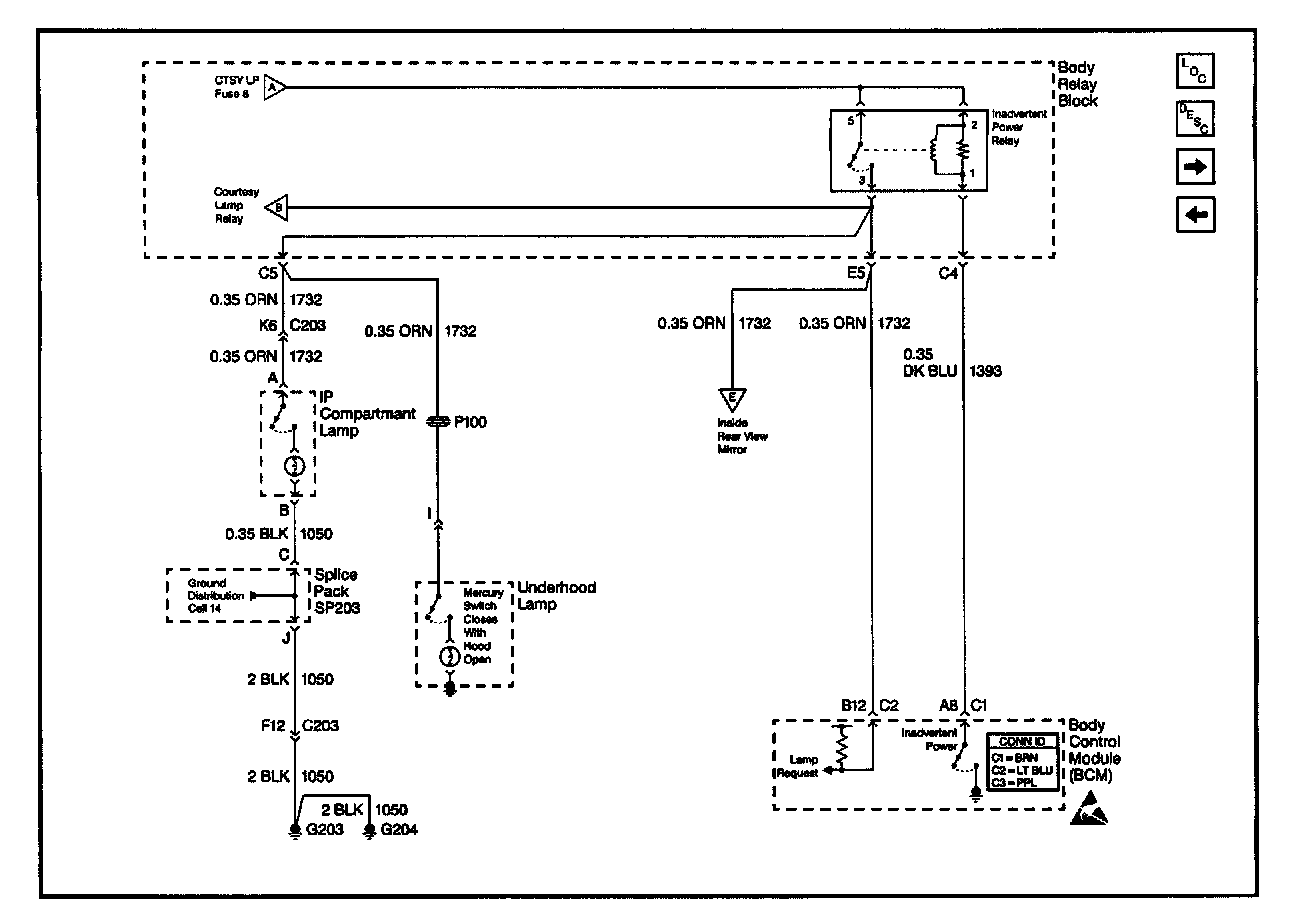

Interior Lights Schematics - Cell 114: Inadvertent Power Relay, IP Compartment and Underhood Lamps:
