Turn Signal Switch

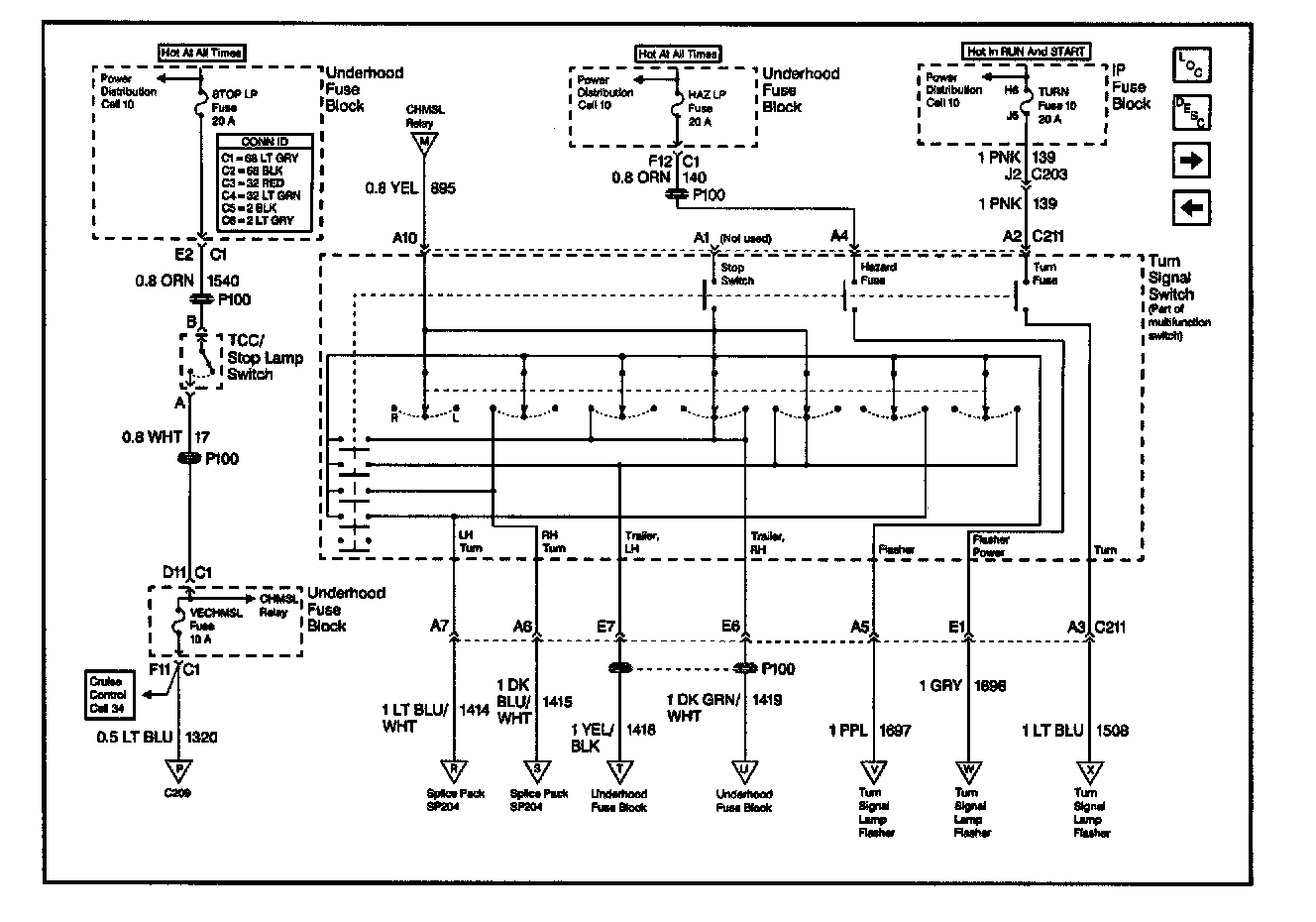

Exterior Lights Schematics - Cell 110: STOP LP, HAZ LP Fuses and Turn Signal Switch:
