Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Turn Signals >> Turn Signal Flasher

Turn Signal Flasher

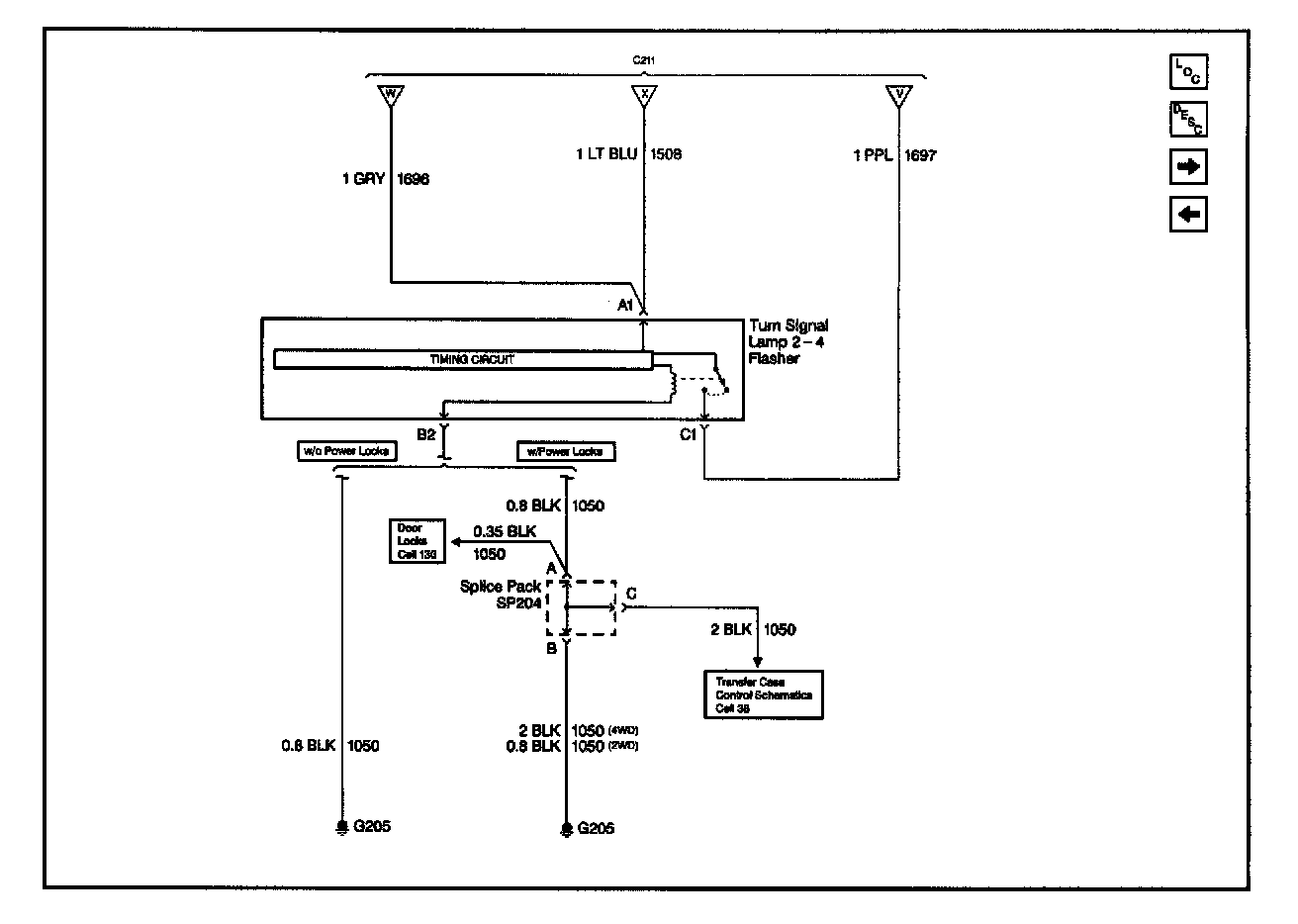

Exterior Lights Schematics - Cell 110: Turn Signal Lamp Flasher:
