Vanity Lamp
Vanity Lamp

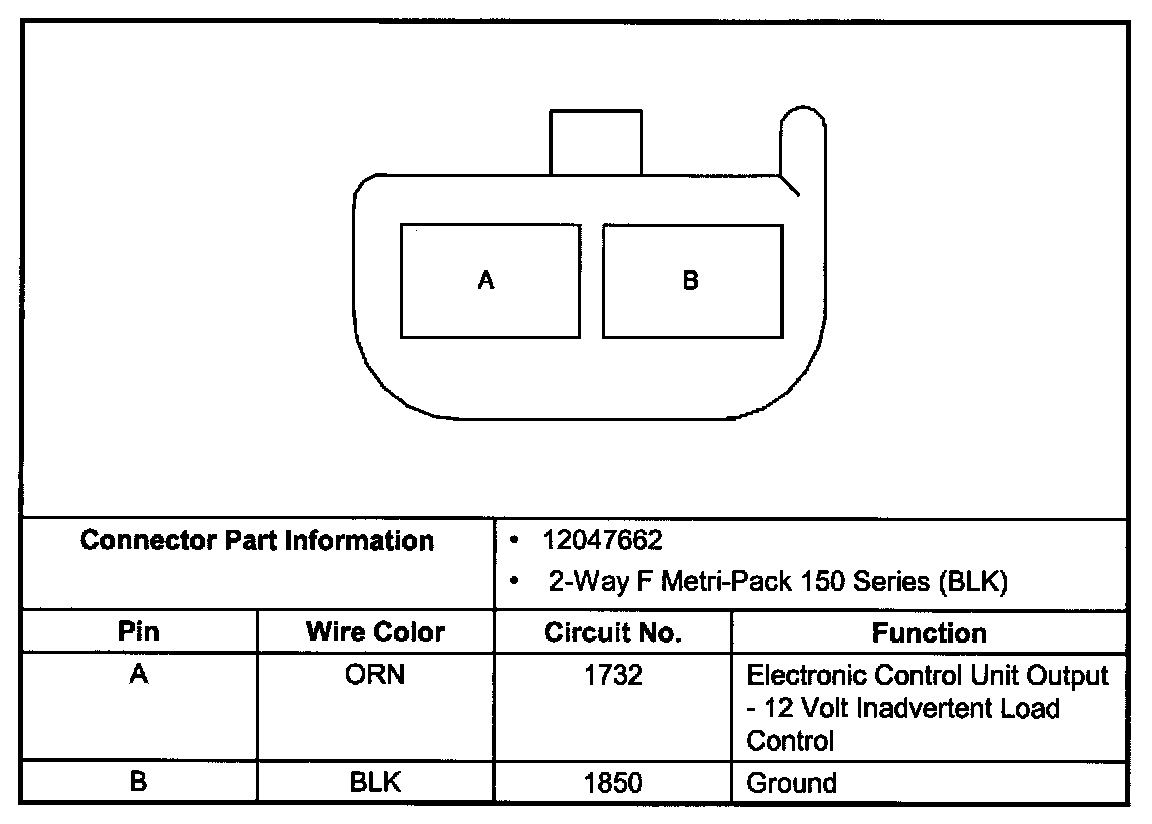

Lighting Systems Connector End Views - Sunshade Mirror Lamp, LH:
Lighting Systems Connector End Views - Sunshade Mirror Lamp, RH:
