Relay Box
Relay Box

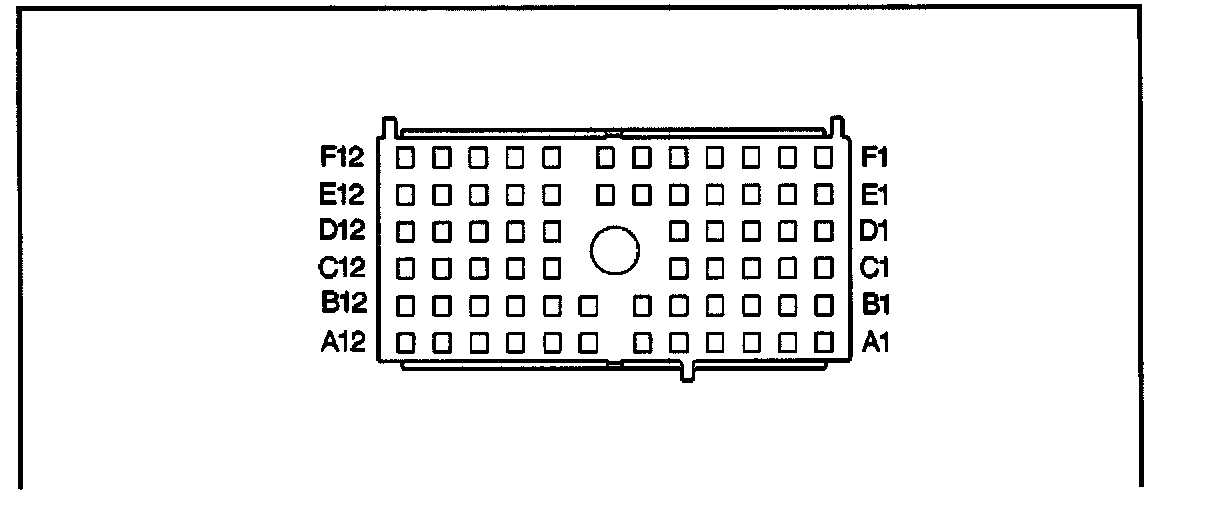

Body Relay Block:

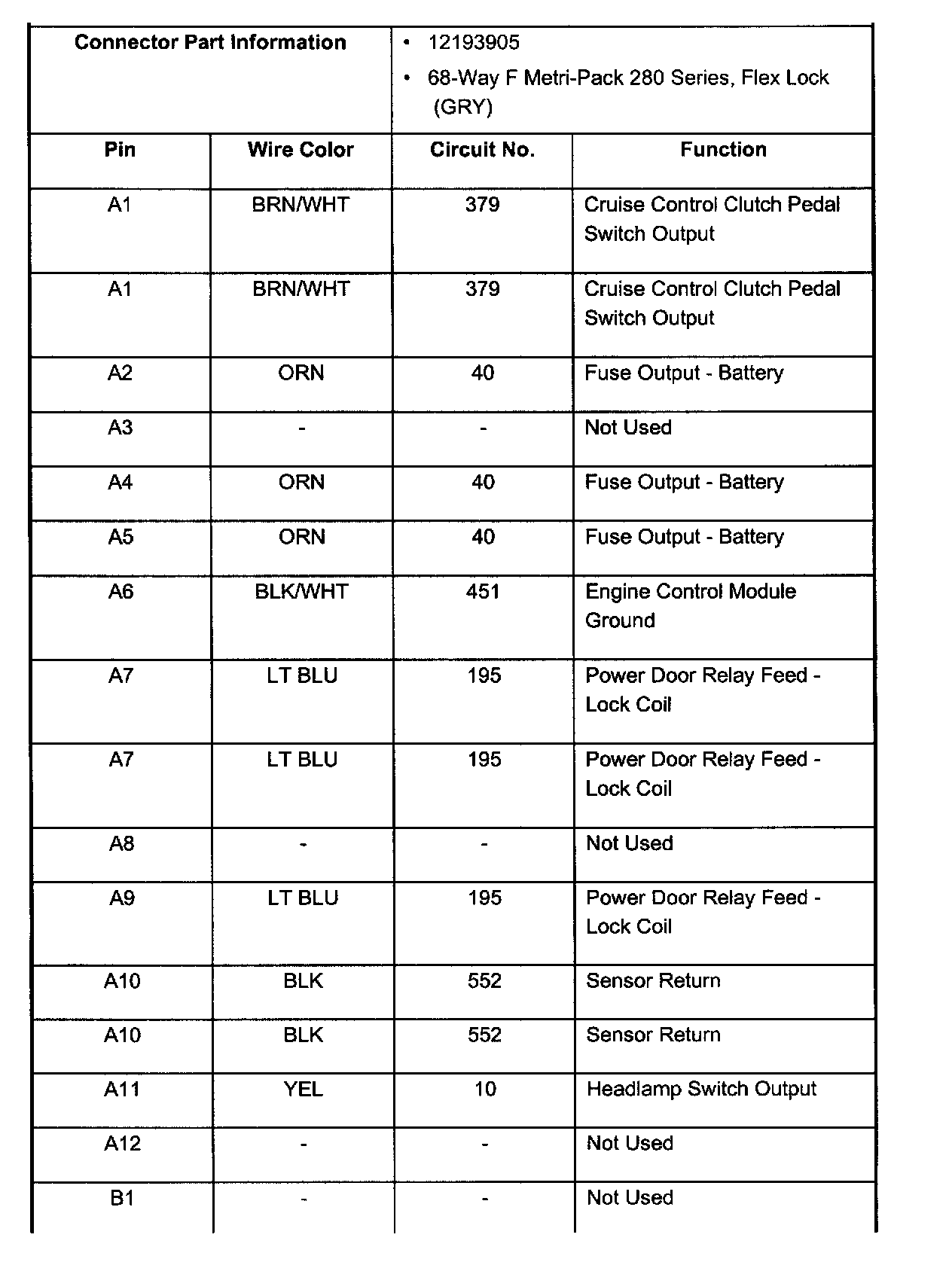

Pin A1 - B1:

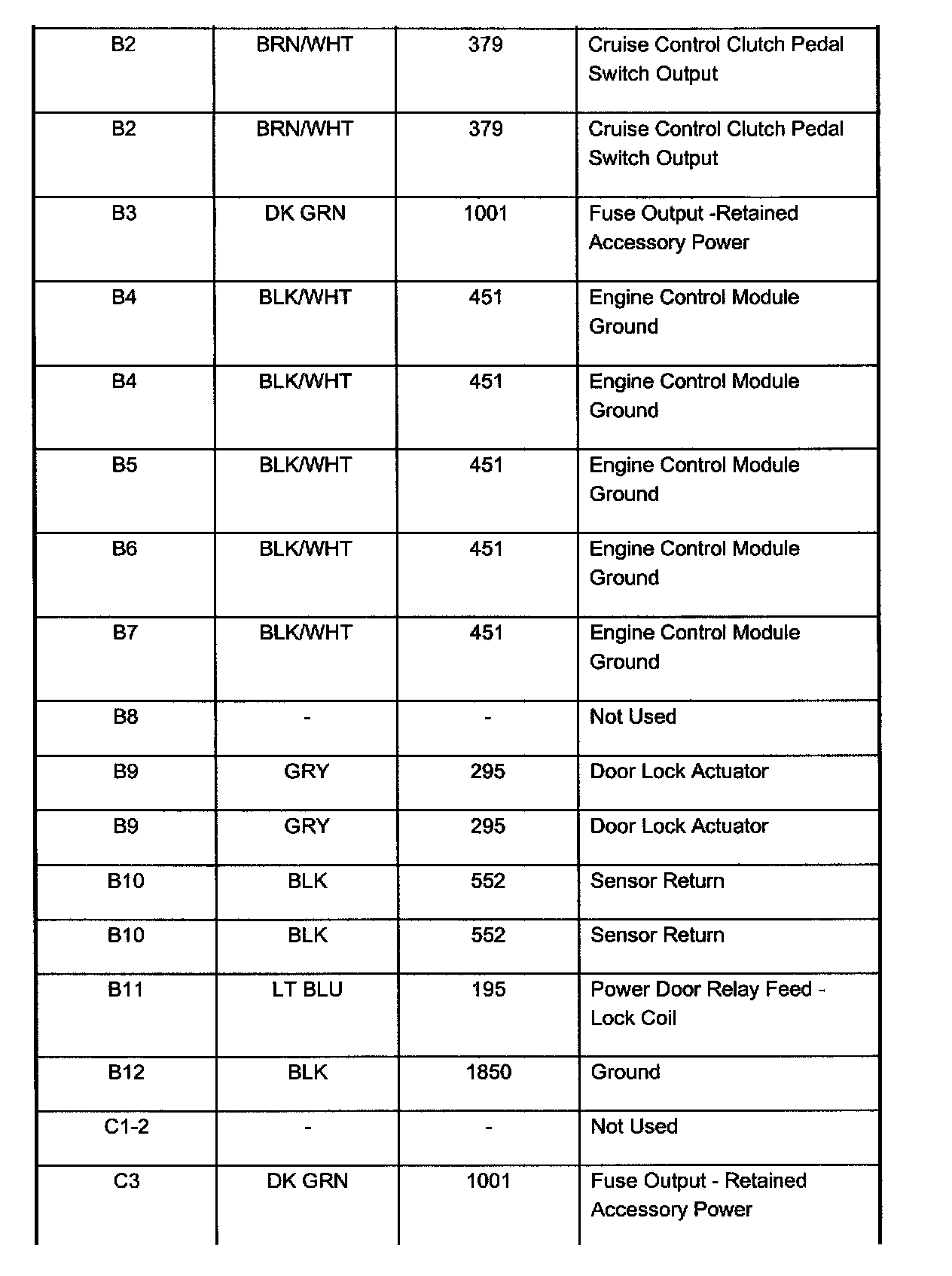

Pin B2 - C3:

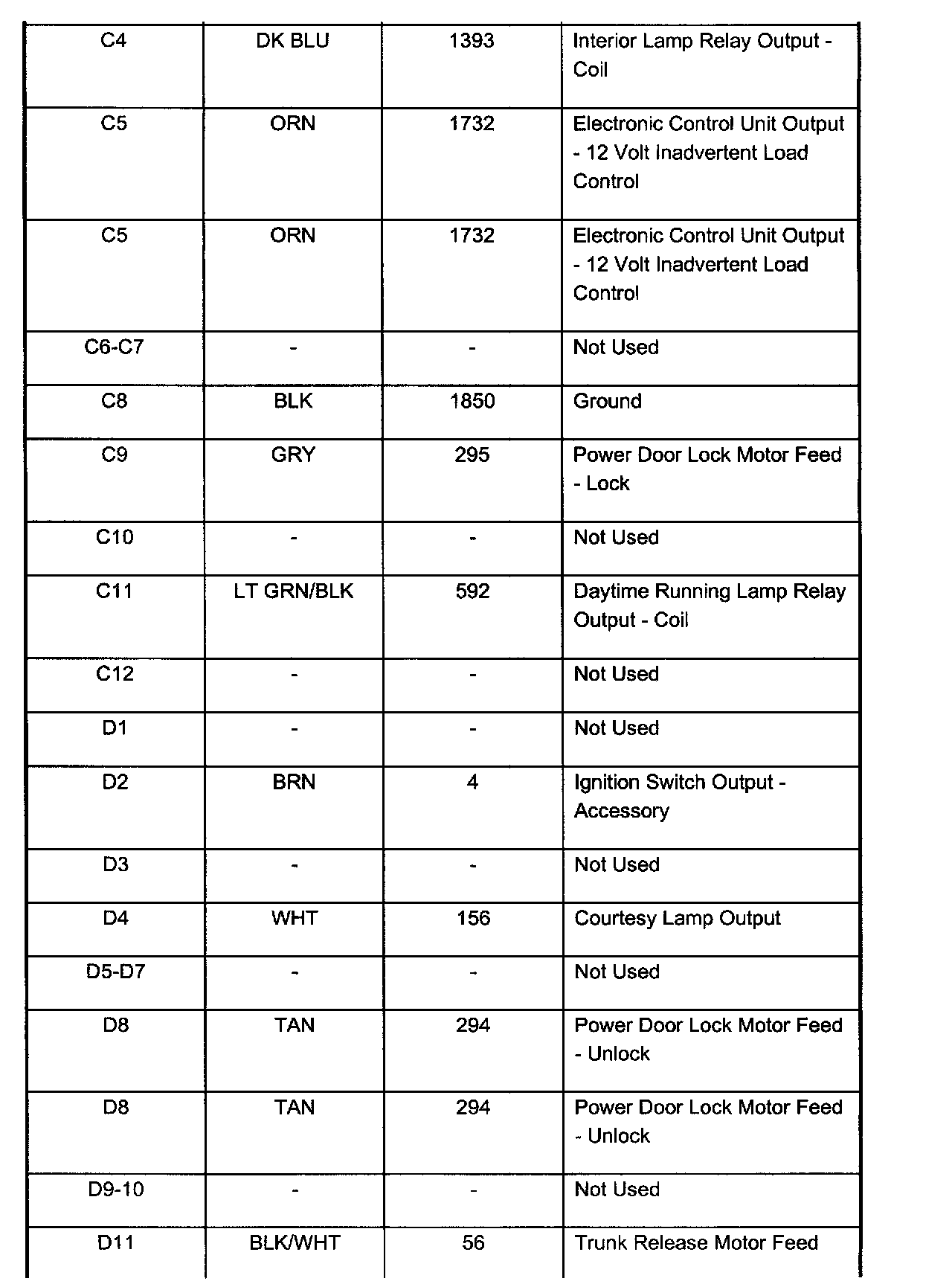

Pin C4 - D11:

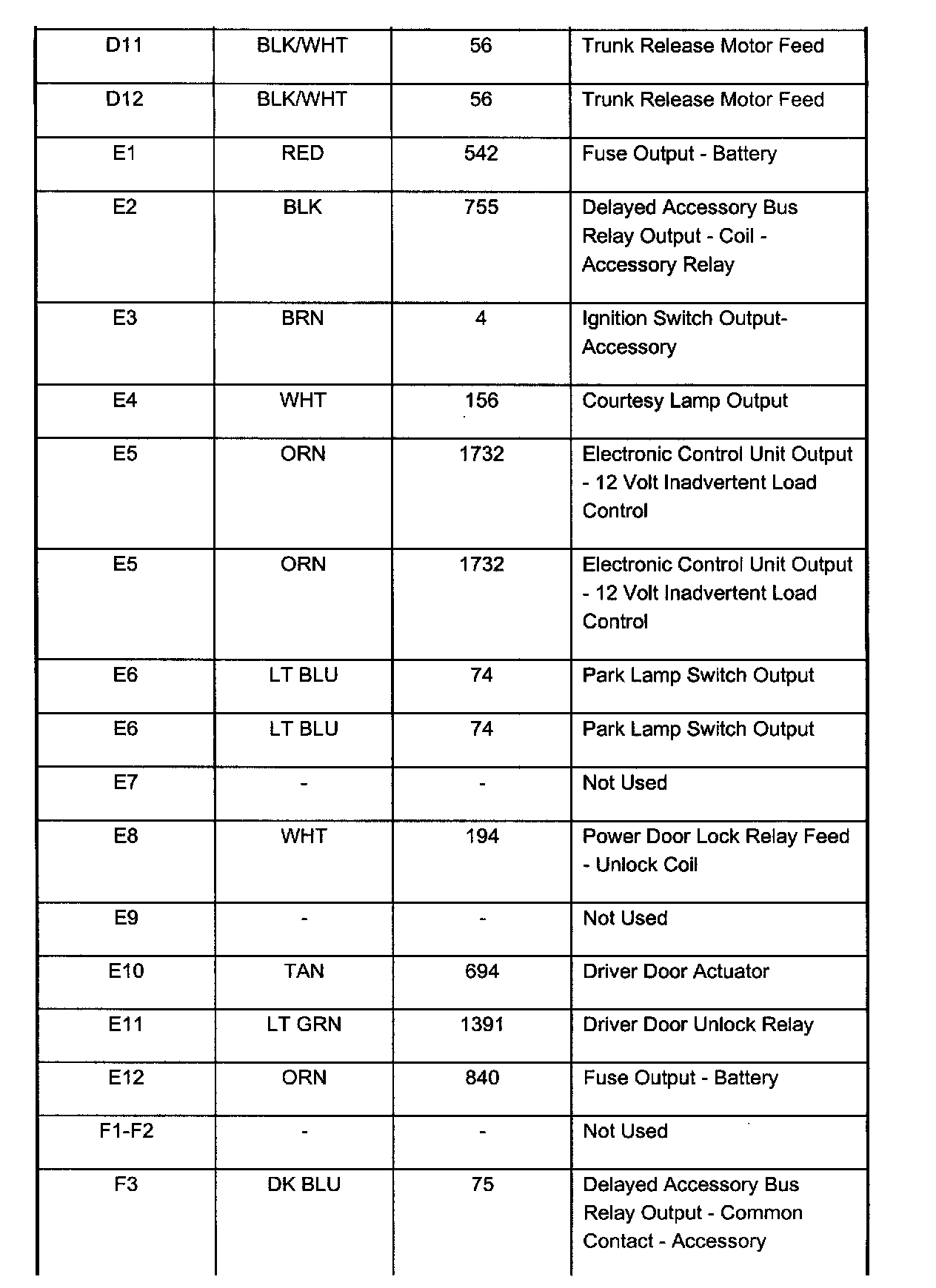

Pin D11 - F3:

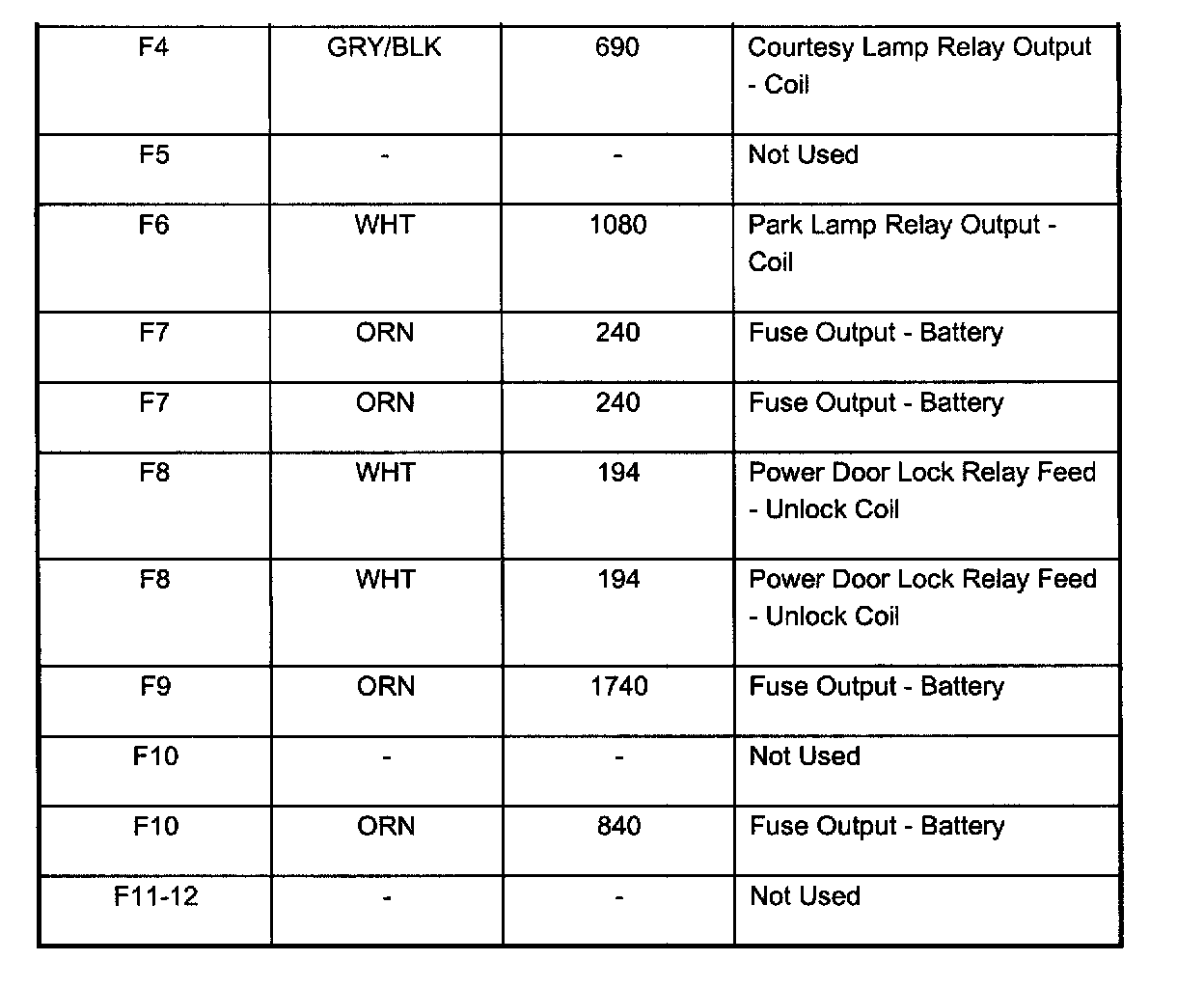

Pin F4 - F12:
