Power Window Motor

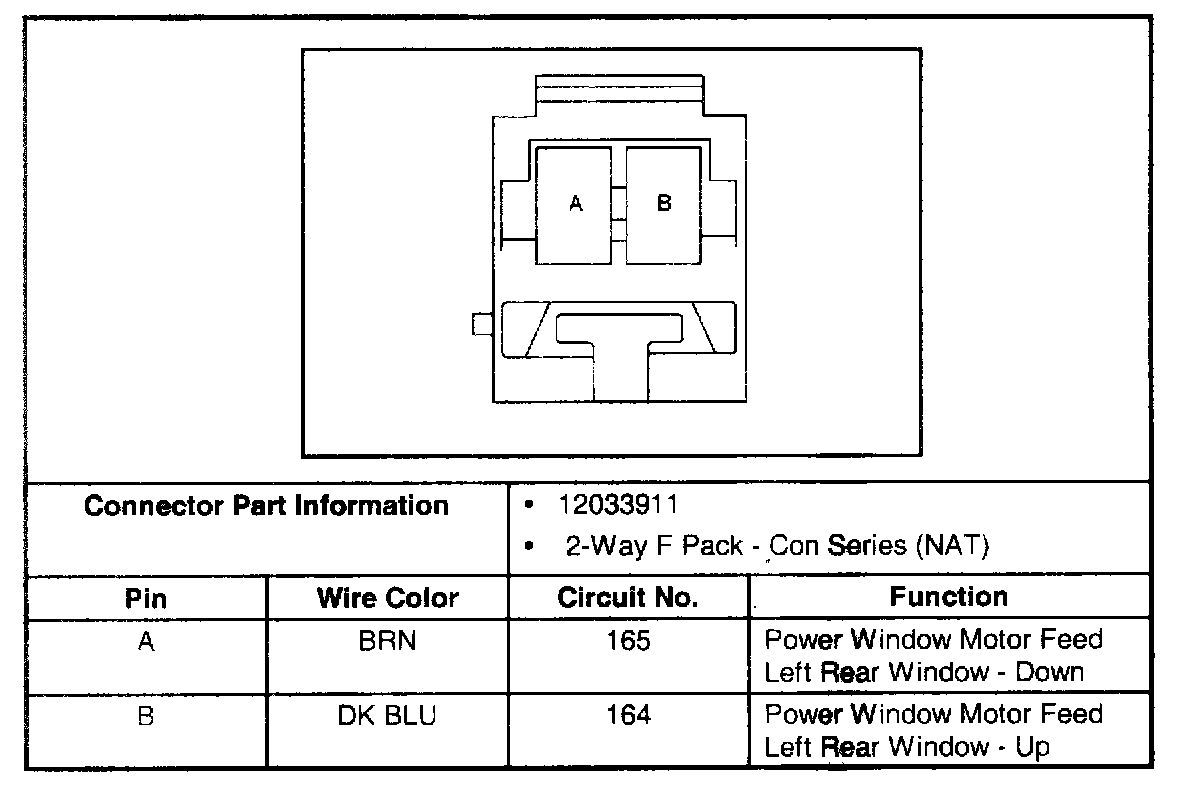

Side Window Regulator Motor, LH Connector:

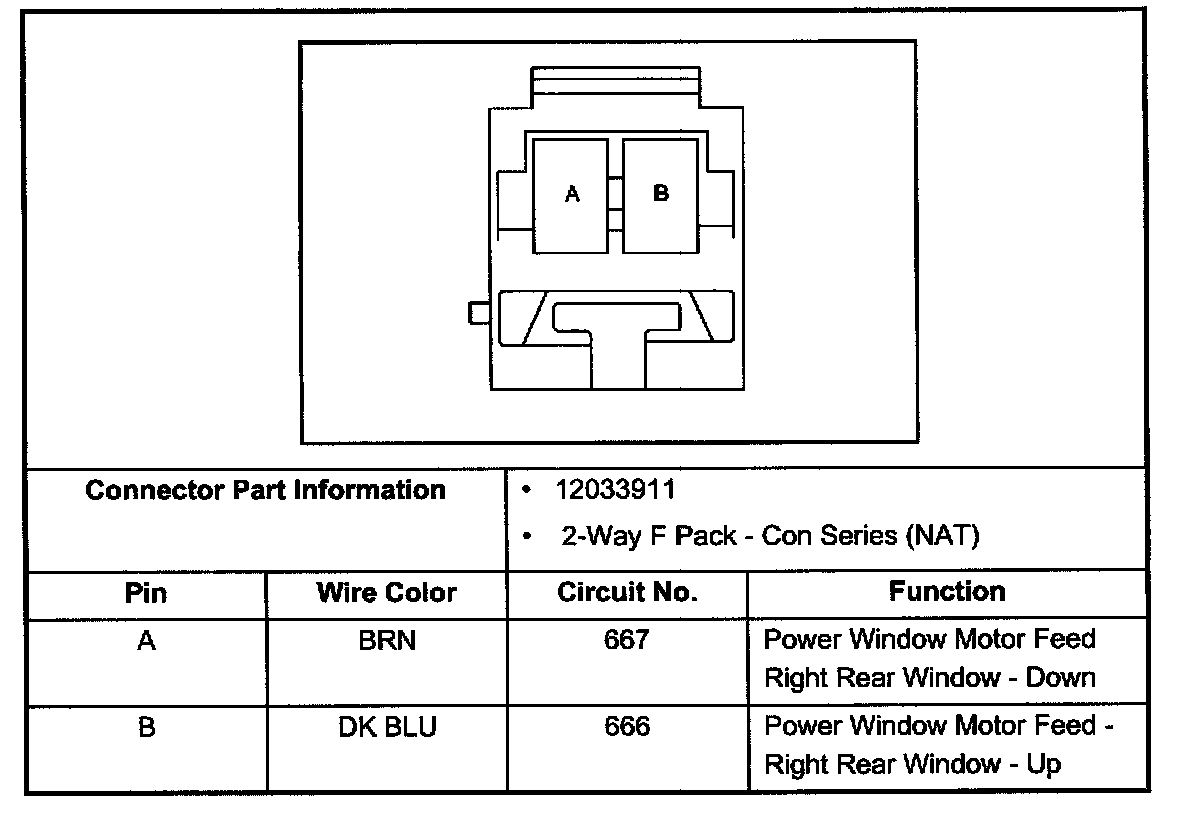

Side Window Regulator Motor, RH Connector:
