Isuzu Truck
>>
1999
>>
Hombre XS Space Cab 2WD V6-4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Mirror Switch
Power Mirror Switch

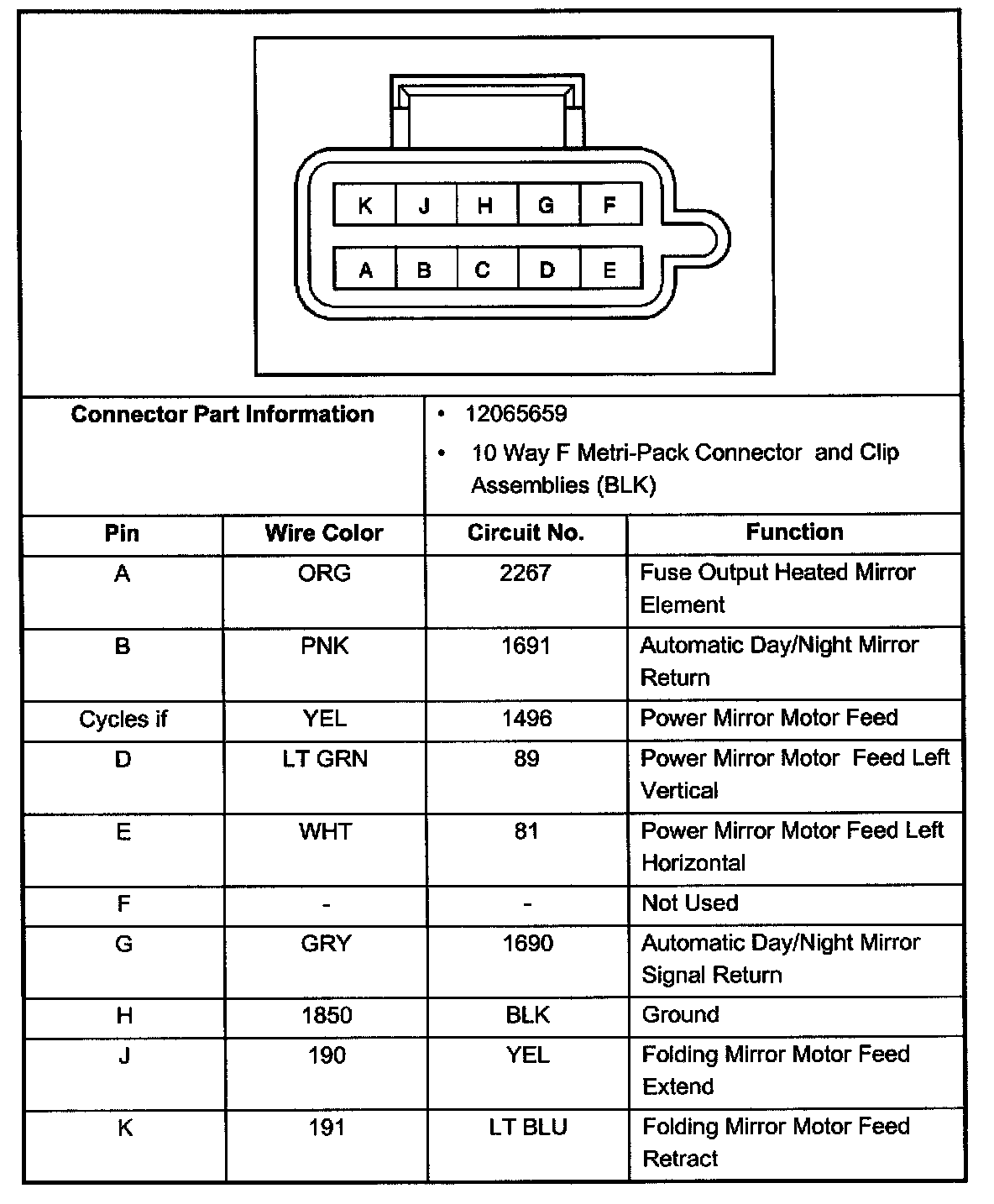

Outside Rear View Mirror Switch, Connector:

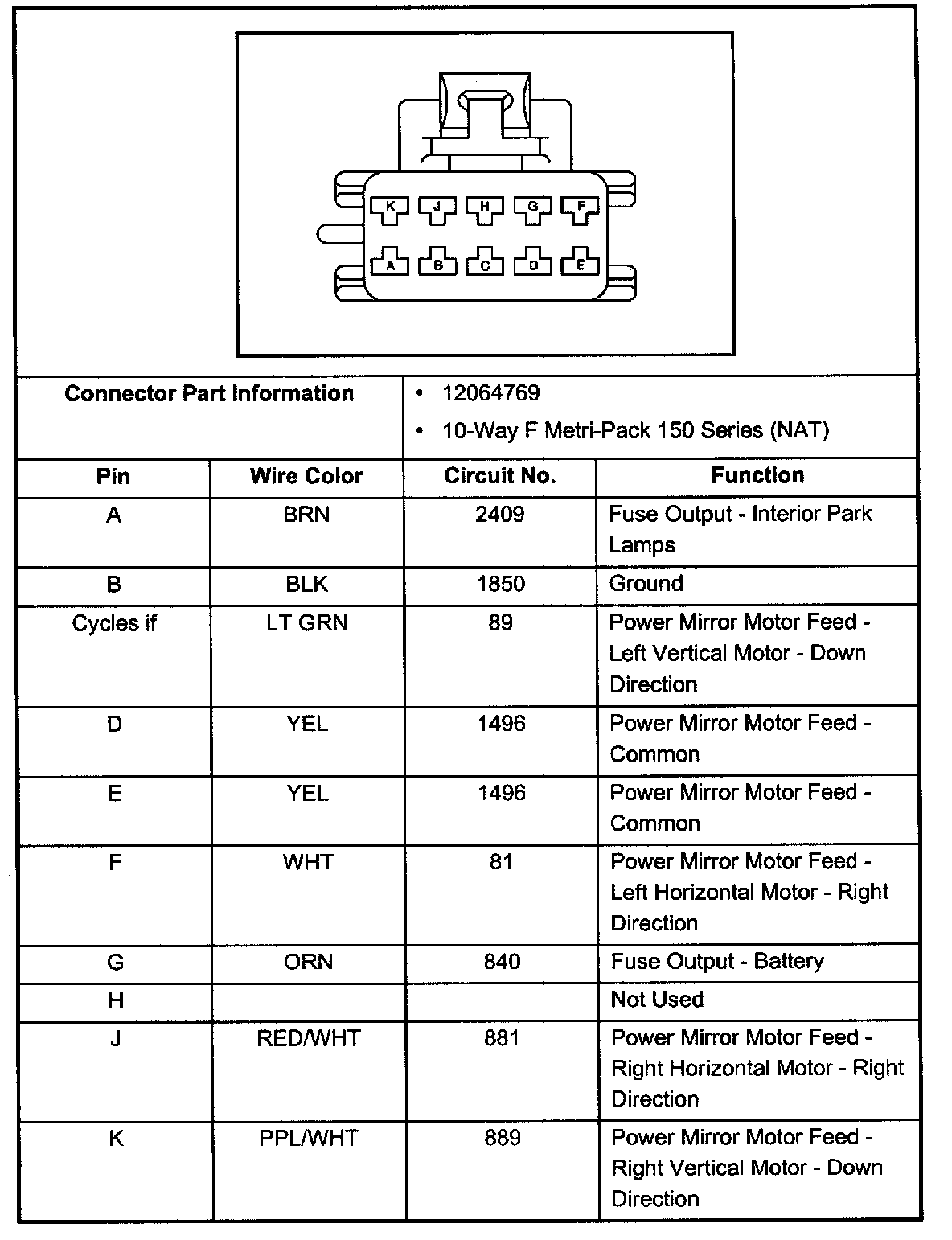

Outside Rear View Mirror, LH Connector:

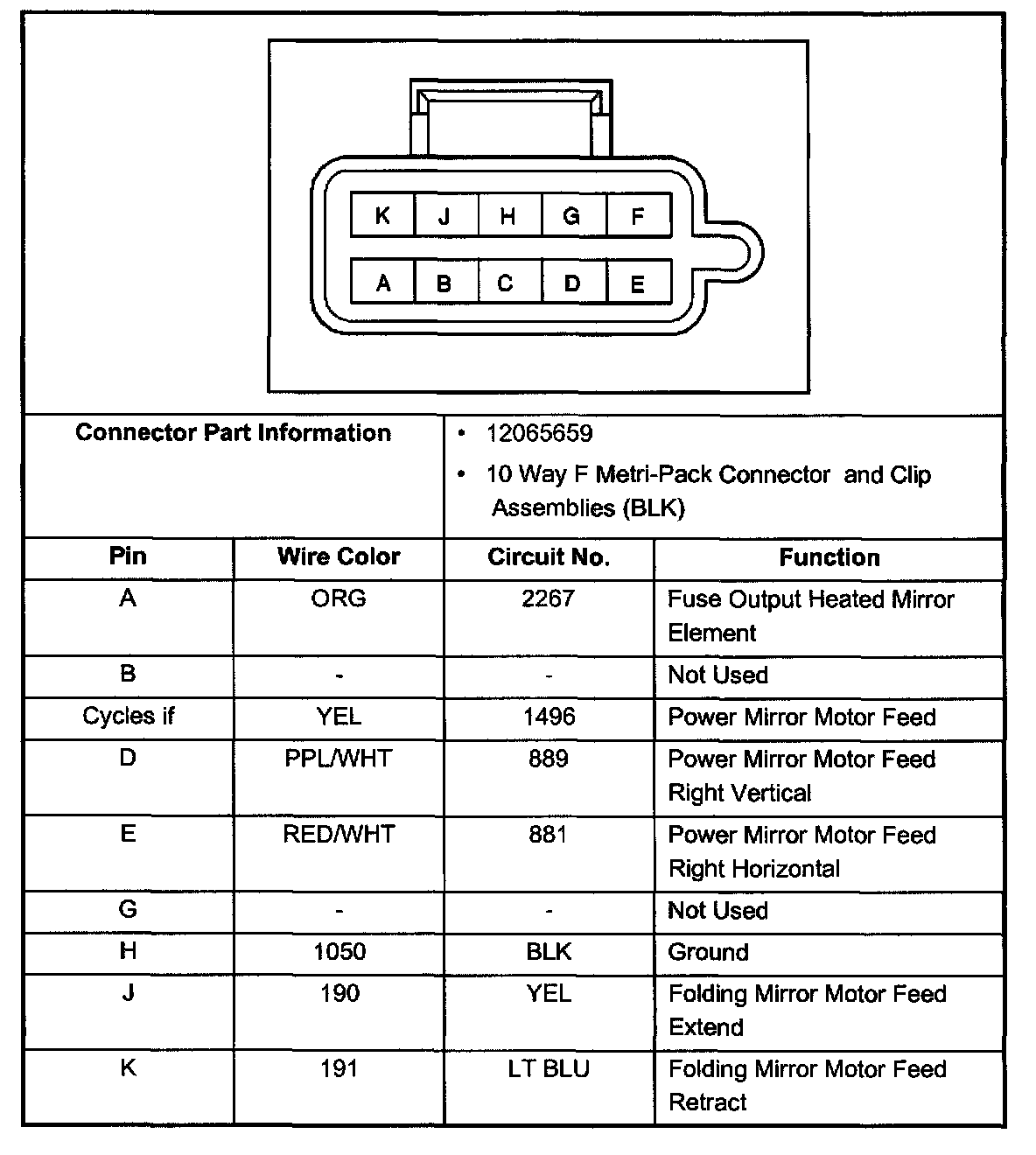

Outside Rear View Mirror, RH Connector:
