Impact Sensor
Impact Sensor

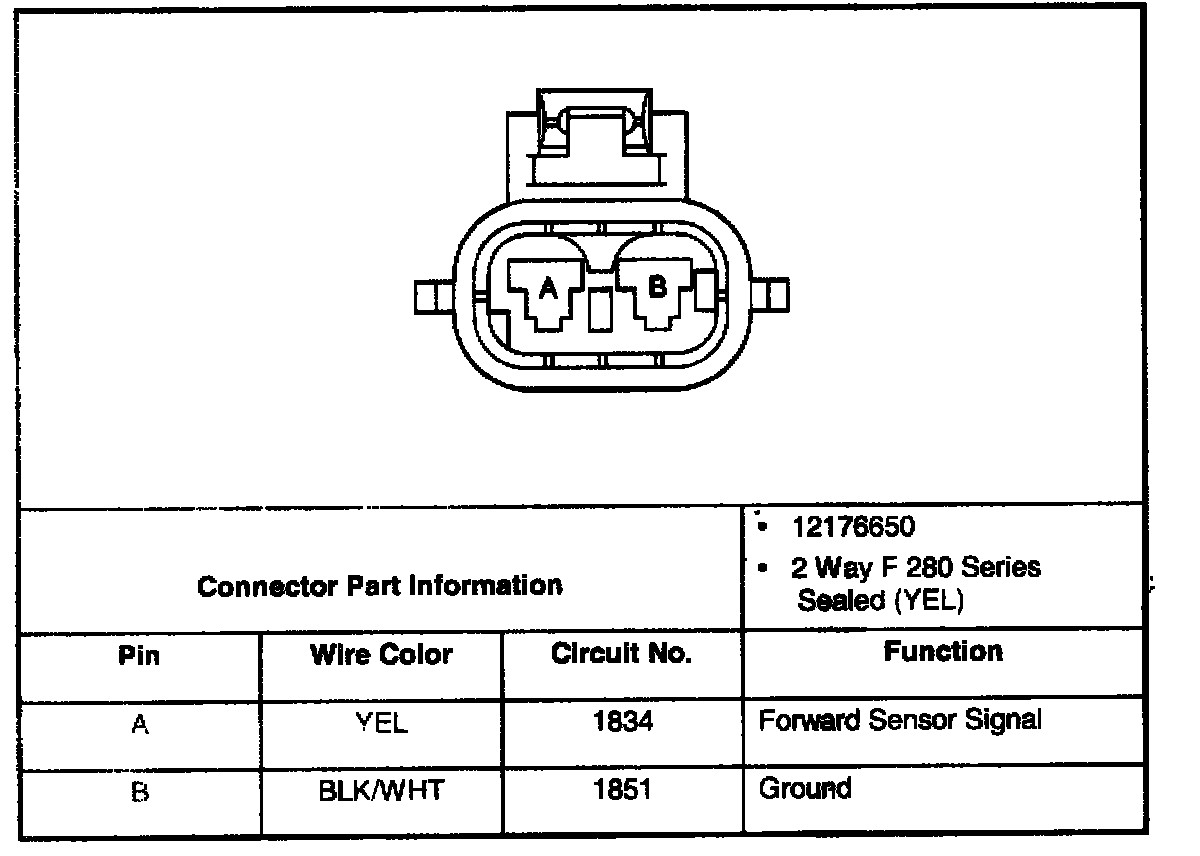

Supplemental Restraint System Front End Discriminating Sensor, LH Connector:
Supplemental Restraint System Front End Discriminating Sensor, RH Connector:
