Brake Light Switch
Brake Light Switch

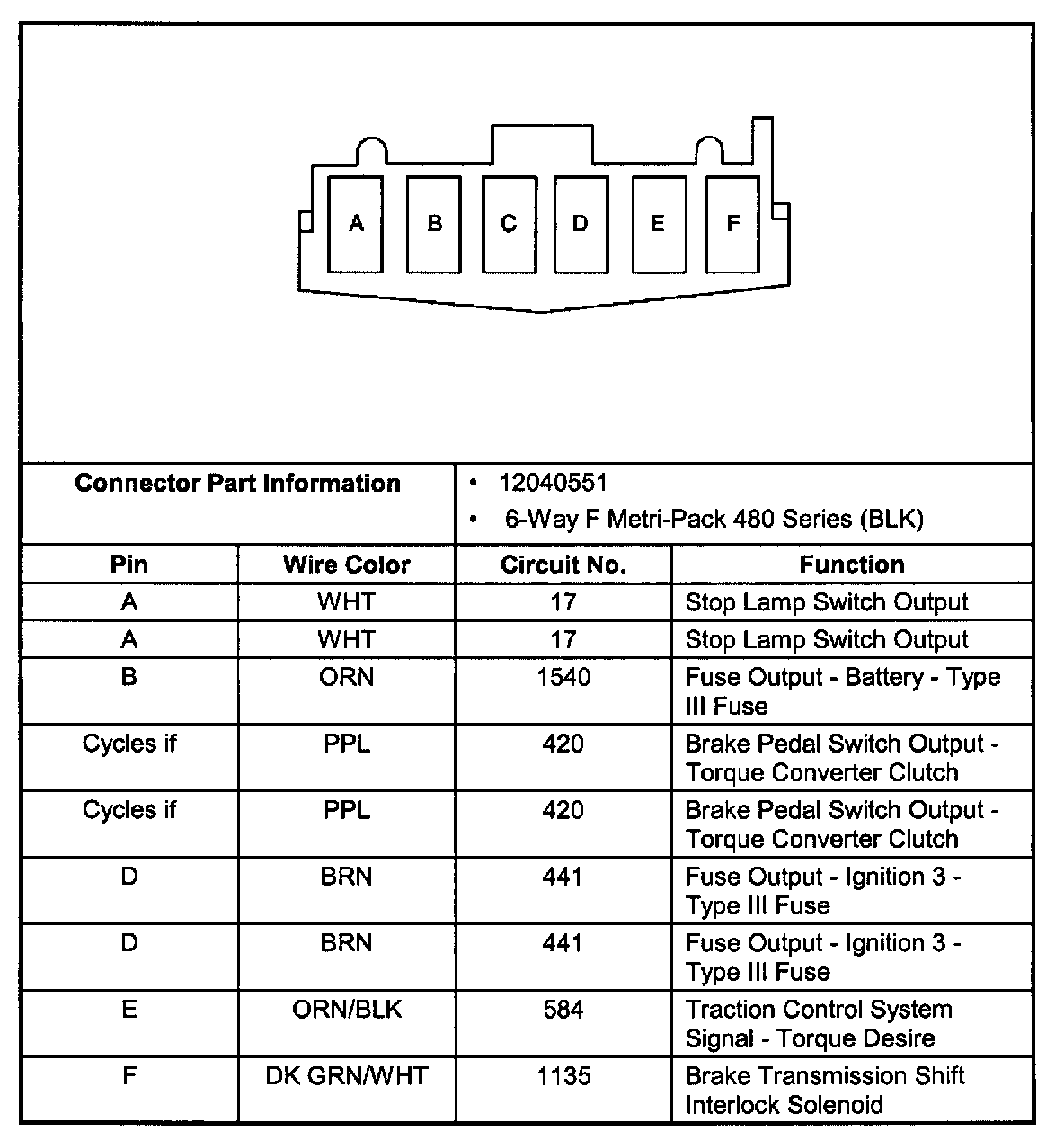

Lighting Systems Connector End Views - TCC/Stoplamp Switch Connector:
