Blower Motor

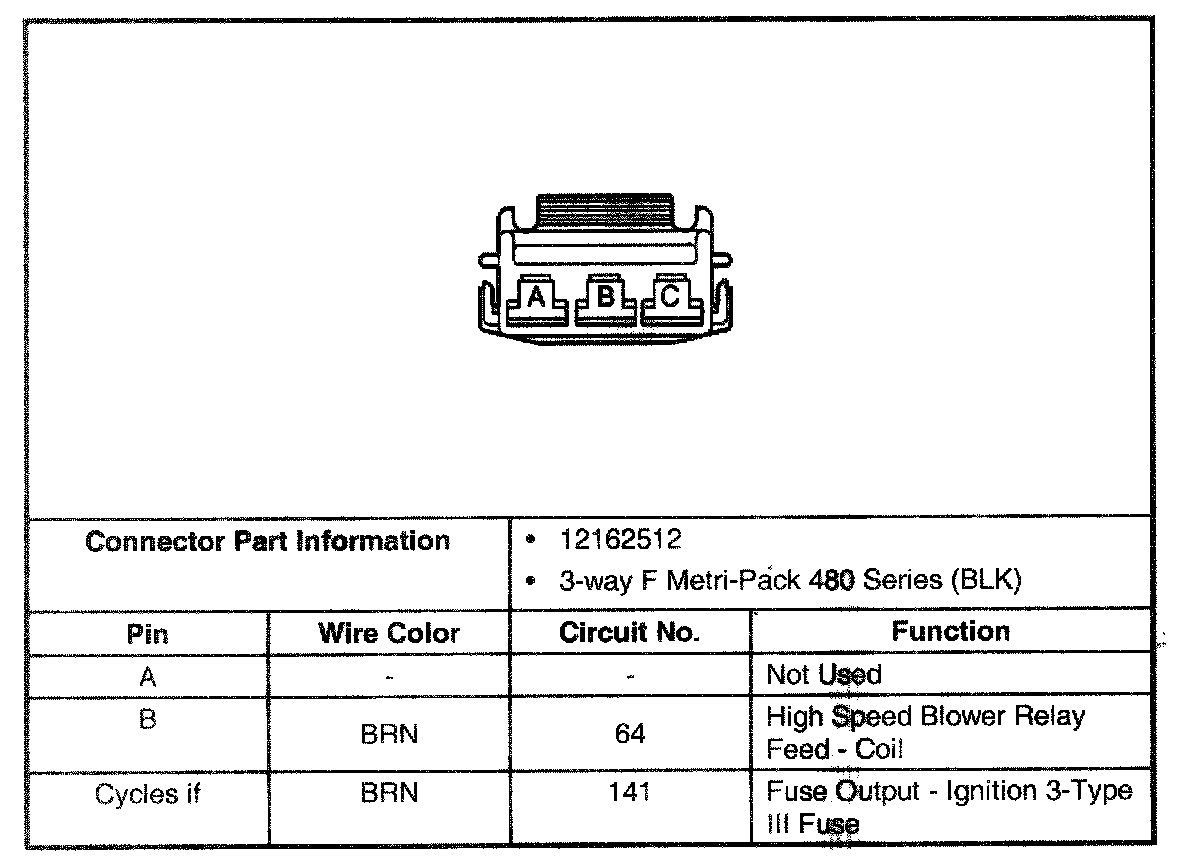

Heater Controller Connector C1:

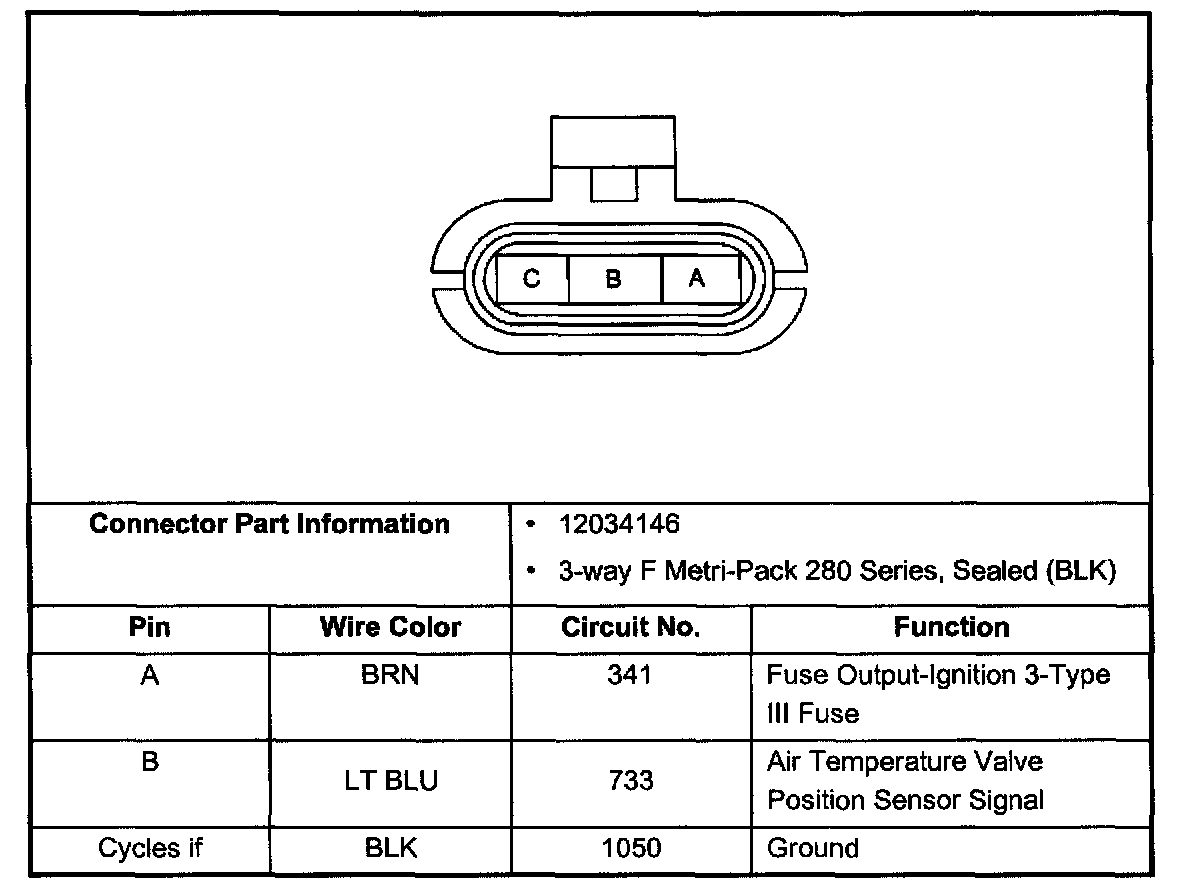

Heater Controller Connector C2:

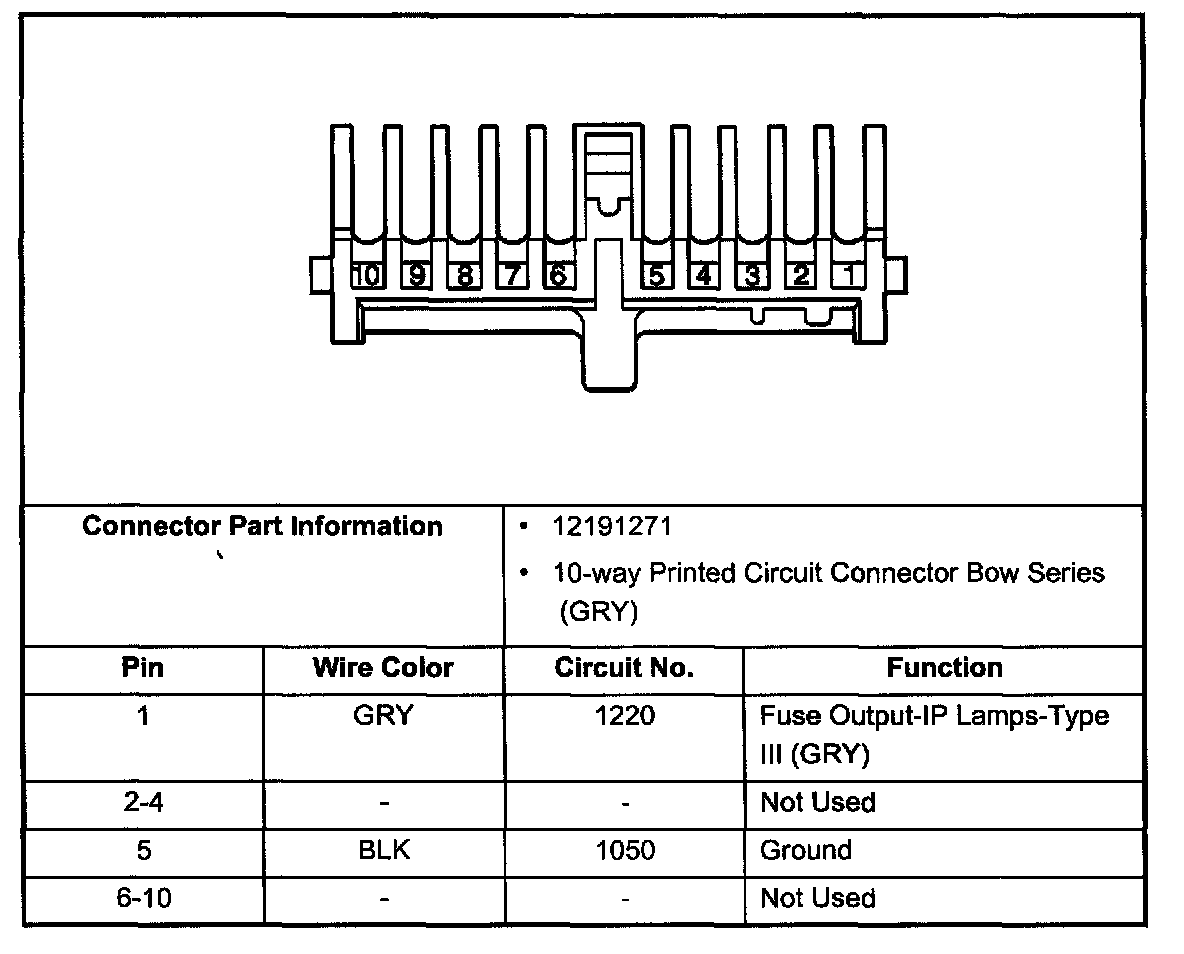

Heater Controller Connector C3:
