Backup Lamp Switch

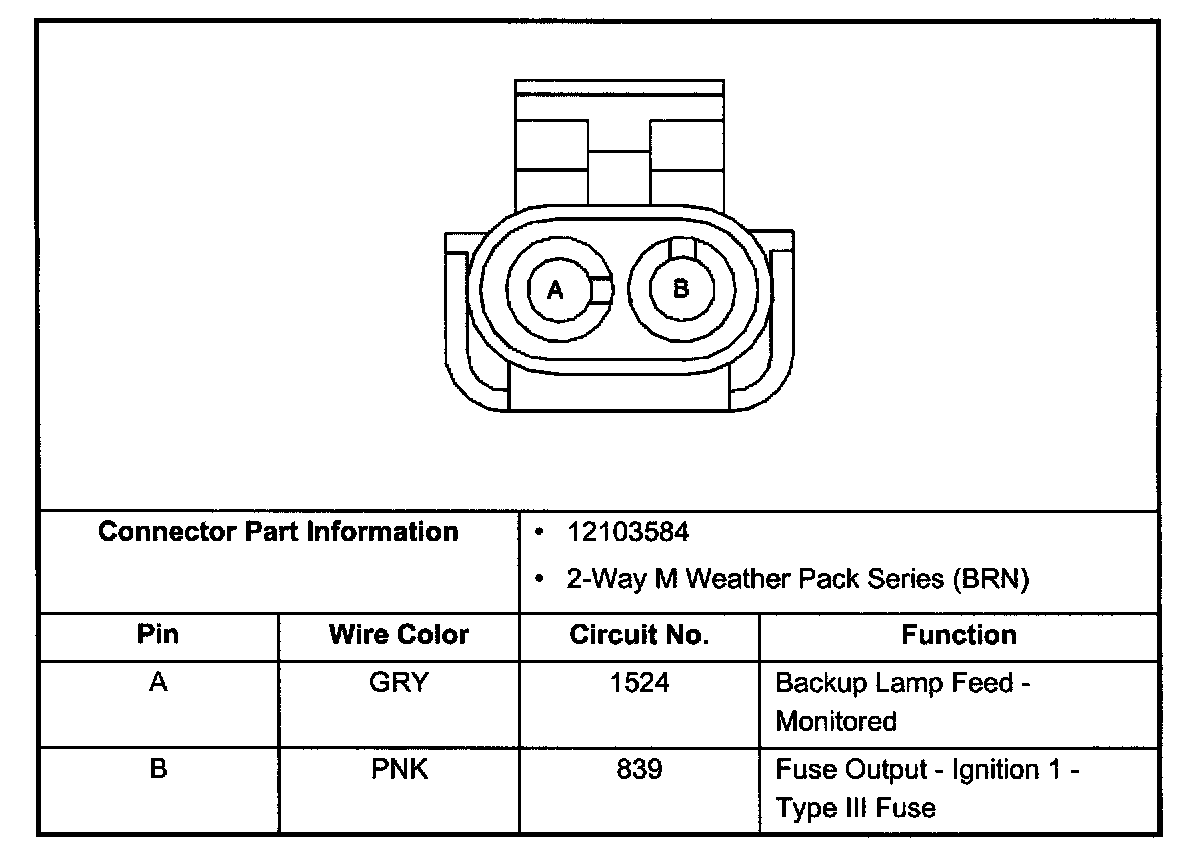

Lighting Systems Connector End Views - Backup Lamp Switch Connector (Manual Transmission):
