Vacuum Brake Booster Hose

Vacuum Brake Booster Hose Replacement

Removal Procedure

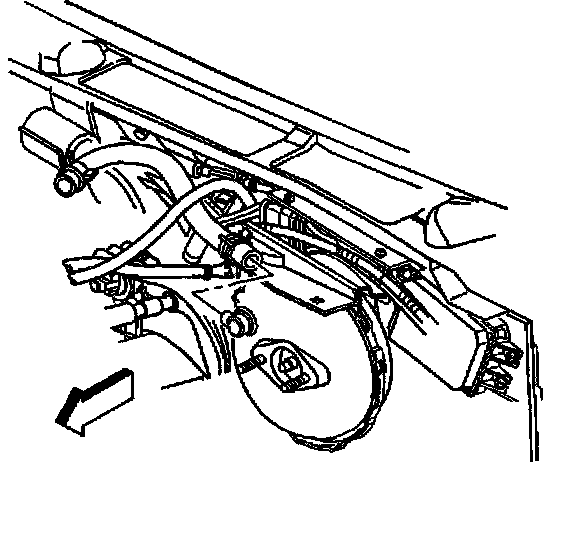

1. Disconnect the vacuum brake booster hose at the engine (2.2L).




2. Disconnect the vacuum brake booster hose at the engine (4.3L).

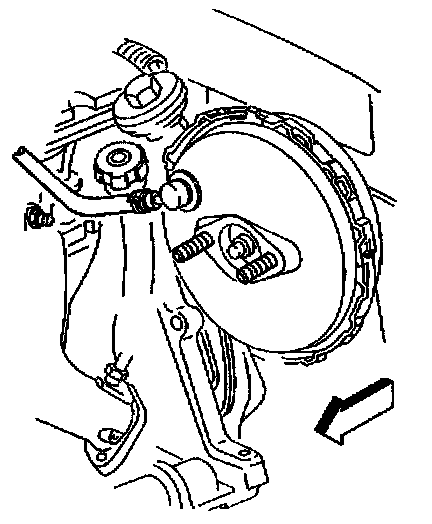

3. Disconnect the vacuum brake booster hose at the vacuum booster (2.2L).




4. Disconnect the vacuum brake booster hose at the vacuum booster (4.3L).
5. Remove the vacuum brake booster hose from the vehicle.

Installation Procedure




1. Connect the vacuum brake booster hose at the engine (2.2L).




2. Connect the vacuum brake booster hose at the engine (4.3L).




3. Connect the vacuum brake booster hose at the vacuum booster (2.2L).




4. Connect the vacuum brake booster hose at the vacuum booster (4.3L).
