Rear

Park Brake Cable Replacement - Rear (RWD)

Removal Procedure

1. Release the park brake.
2. Raise the vehicle and support the vehicle with safety stands.
3. Lubricate the park brake cable adjuster. Refer to Parking Brake; Service and Repair; Lubrication Procedure.

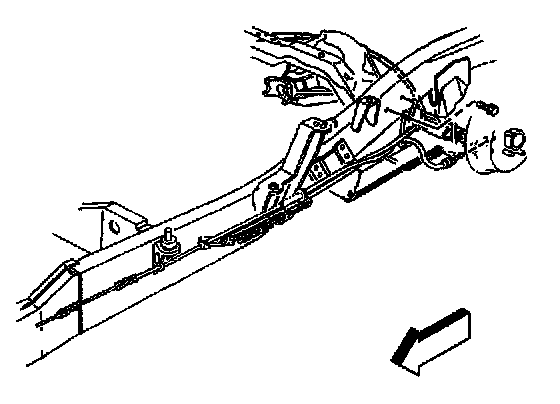

4. Loosen the adjuster nut at the equalizer.




5. Remove the front parking brake cable from the rear parking brake cables.
6. Remove the brake drum(s) and the brake shoes.
7. Disconnect the rear cable from the park brake lever.

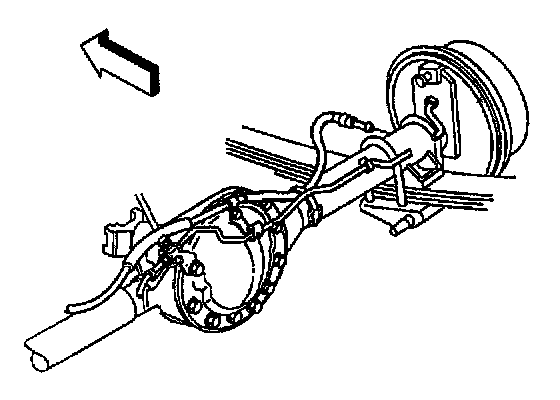

8. Disconnect the rear cable(s) attachments from the frame and/or axle and/or equalizer.
9. Disconnect the cable retainer at the backing plate. Push the cable retainer fingers in to disconnect.
10. Remove the rear cable from the vehicle.

Installation Procedure

1. Connect the rear park brake cable(s) to the park brake lever.
1. Slide the brake cable into the brake backing plate opening.
2. Install the cable retainer into the backing plate.
3. Verify the cable retainer fingers expand when the cable retainer is inserted into the backing plate.
4. Pull the cable end fitting as far rearward as possible.




5. Install the cable end fitting into the parking brake lever.
2. Install the brake shoes and drum(s).

Important: When routing the cable(s) through the guide loop, route the left side cable first.

3. Route the rear cable(s) through the attachments and guides at the frame and/or axle and/or equalizer.
4. Verify the cable retainers fingers expanded and the retainers are secure at all locations for cable(s) removed.
5. Strap the right rear park brake cable tight against the rear axle.
1. Tighten the strap so it does not move along the rear axle.
2. Secure the loose end of the strap back through the tabs in the buckle.
6. Adjust the park brake.
Refer to Adjustments.
7. Lower the vehicle.
