Front

Park Cable Replacement - Front

Removal Procedure

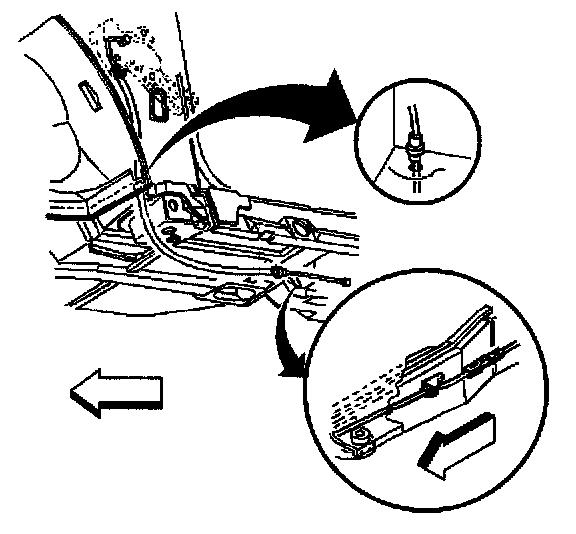

1. Raise the vehicle and support the vehicle with safety stands.




2. Disconnect the right rear cable at the equalizer.
3. Remove the retainer.
4. Disconnect the left side sound insulator panel.




5. Remove the retainer and the grommet.

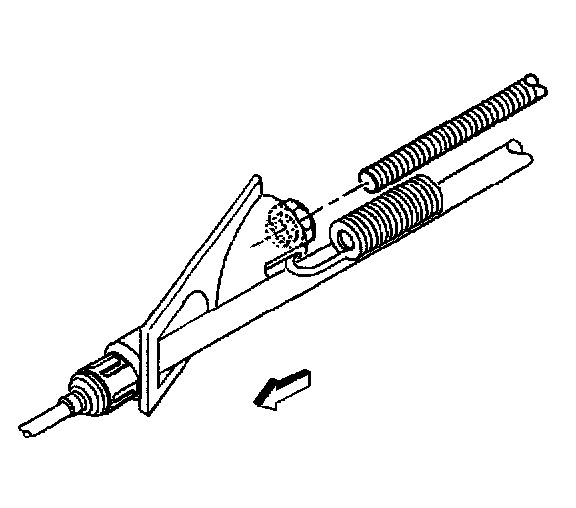

Front Cable And Lever:

6. Disconnect the cable from the lever.




7. Disconnect the front cable.

Installation Procedure




1. Install the front cable.

Front Cable And Lever:

2. Connect the retainer and the grommet. All retaining fingers must be completely through the hole.
3. Connect the cable to the lever.
4. Install the left side sound insulator panel.




5. Install the retainer.




6. Connect the right rear cable to the equalizer and to the nut.
7. Adjust the park brake.
Refer to Parking Brake Cable; Adjustments.
8. Lower the vehicle.
