Removal and Installation

Master Cylinder Replacement

Removal Procedure

1. Apply the parking brake.

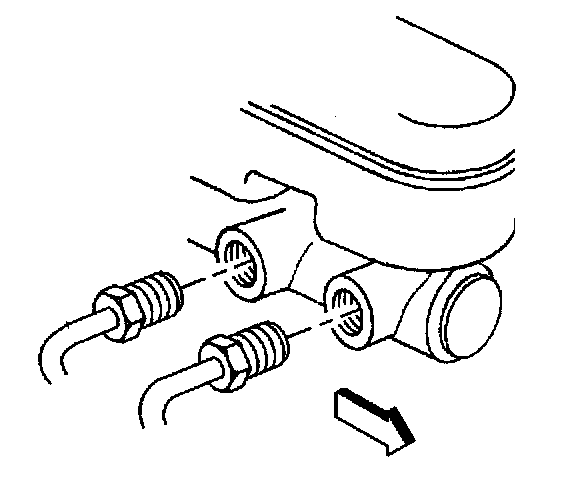

2. Disconnect the brake pipes.
3. Plug the pipes to prevent brake fluid loss or contamination.

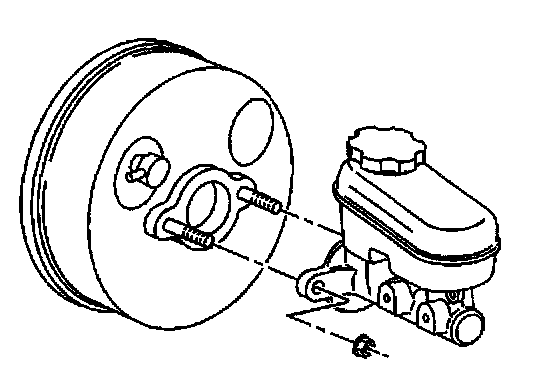

4. Remove the master cylinder mounting nuts.
5. Remove the master cylinder.

Installation Procedure

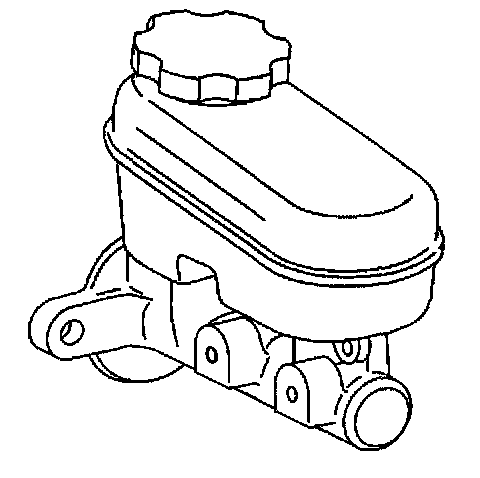

1. Before installing the master cylinder, bench bleed the master cylinder.

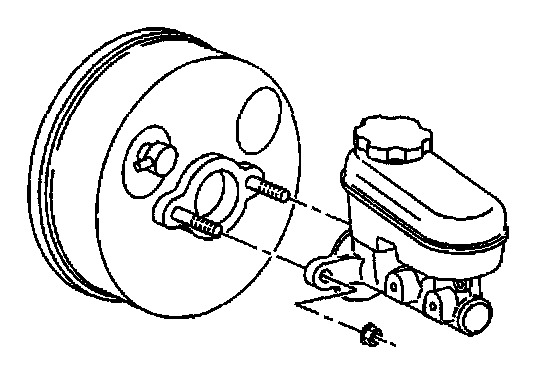

2. Install the master cylinder.




3. Install the master cylinder mounting nuts.
Tighten
Tighten the master cylinder mounting nuts to 36 N.m (27 lb ft).




4. Connect the brake pipes.
Tighten
Tighten the brake pipe fittings to 17 N.m (13 lb ft).
5. Bleed the brakes.
