Single Piston Caliper

Brake Hose Replacement - Front (Single Piston Caliper)

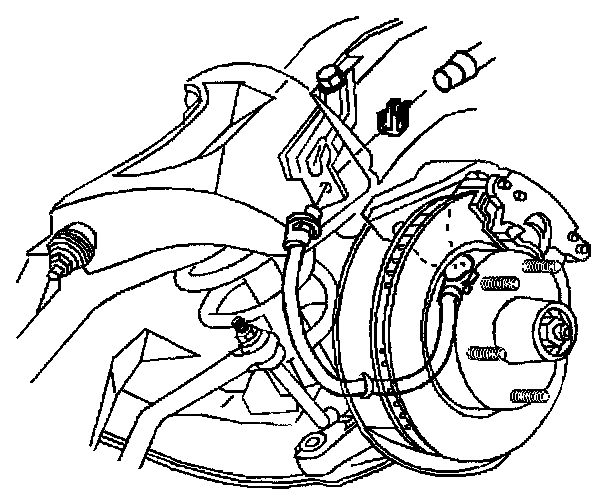

Removal Procedure

1. Raise and suitably support vehicle.
2. Remove the tire and wheel assembly.
3. Clean the hose fittings at both ends. Remove all dirt, grease, and other foreign material.




4. Disconnect the brake pipe fitting.
5. Remove the front flex hose retainer.




6. Remove the bolt and the gaskets.
7. Remove the front flex hose.

Installation Procedure

Important: After installation, ensure that the brake hose is not be twisted. Ensure that the brake hose does not touch the other components.

1. Install the brake hose. Ensure the hose is not twisted.




2. Install new brass gaskets.
3. Install the front flex hose to caliper bolt.
Tighten
Tighten the bolt to 54 N.m (40 lb ft).




4. Install the brake pipe retainer.
5. Connect the brake pipe fitting.
Tighten
Tighten the brake pipe fittings to 17 N.m (13 lb ft).
6. Bleed the brakes.
7. Install the tire and wheel assembly.
8. Remove the safety stands and lower the vehicle.
