Brake Caliper Bracket (Rear)

Brake Caliper Bracket Replacement (Rear)

Removal Procedure

Important:
Remove the caliper bracket only under the following circumstances:
- The caliper bracket is damaged.
- You are removing the rotor for refinishing or other service.




1. Remove the brake pads.




2. Remove the caliper bracket mounting bolts.

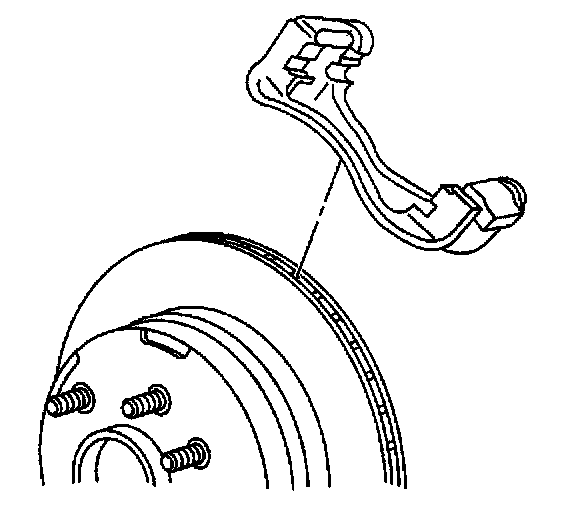

3. Remove the caliper bracket.

Installation Procedure




1. Install the caliper bracket.




2. Install the caliper bracket mounting bolts.
Tighten
Tighten the anchor bracket mounting bolts to 70 N.m (52 lb ft).




3. Install the brake pads.
