Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Braking Uneven-Side to Side

Braking Uneven-Side to Side

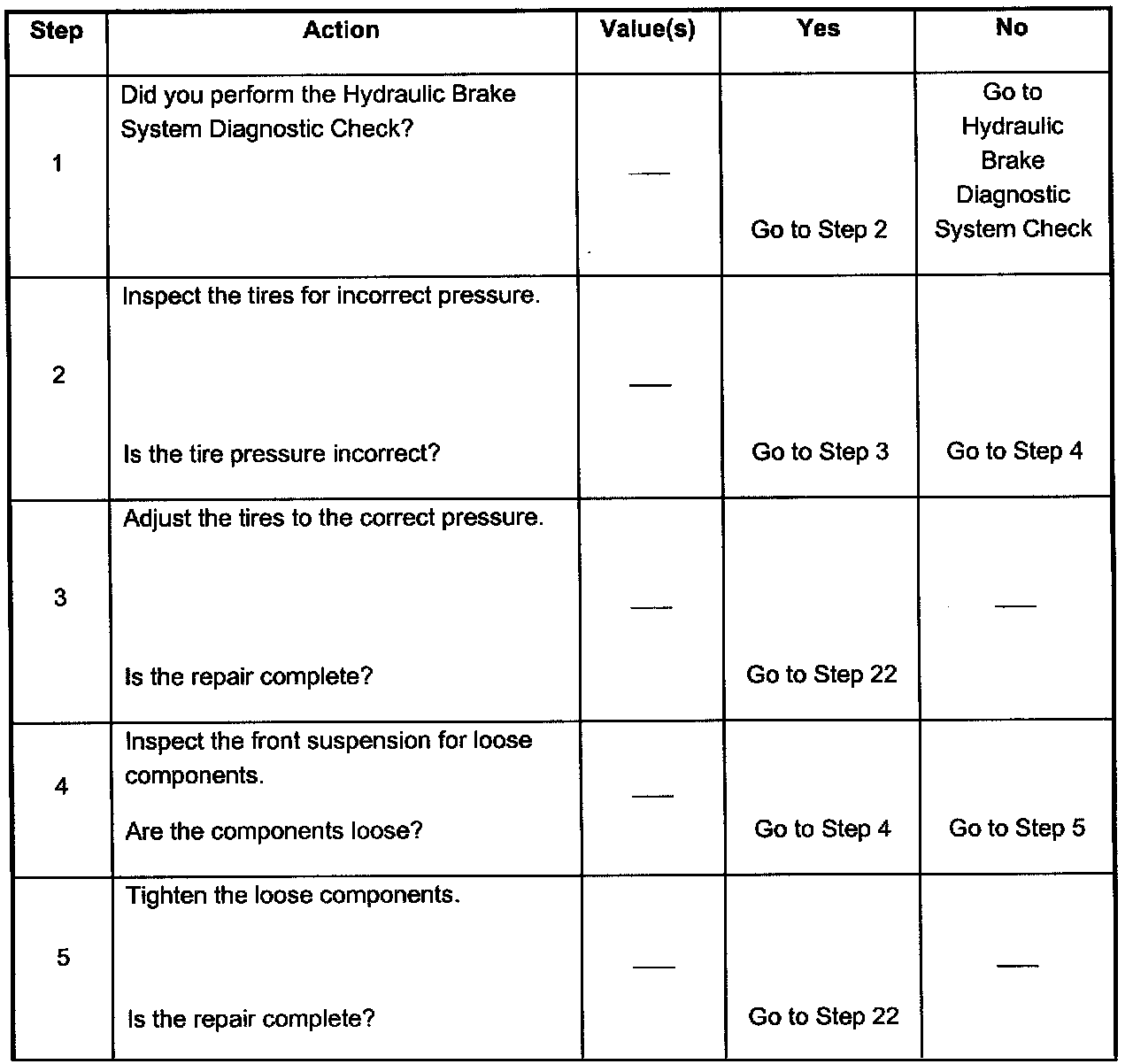

Steps 1 - 5:

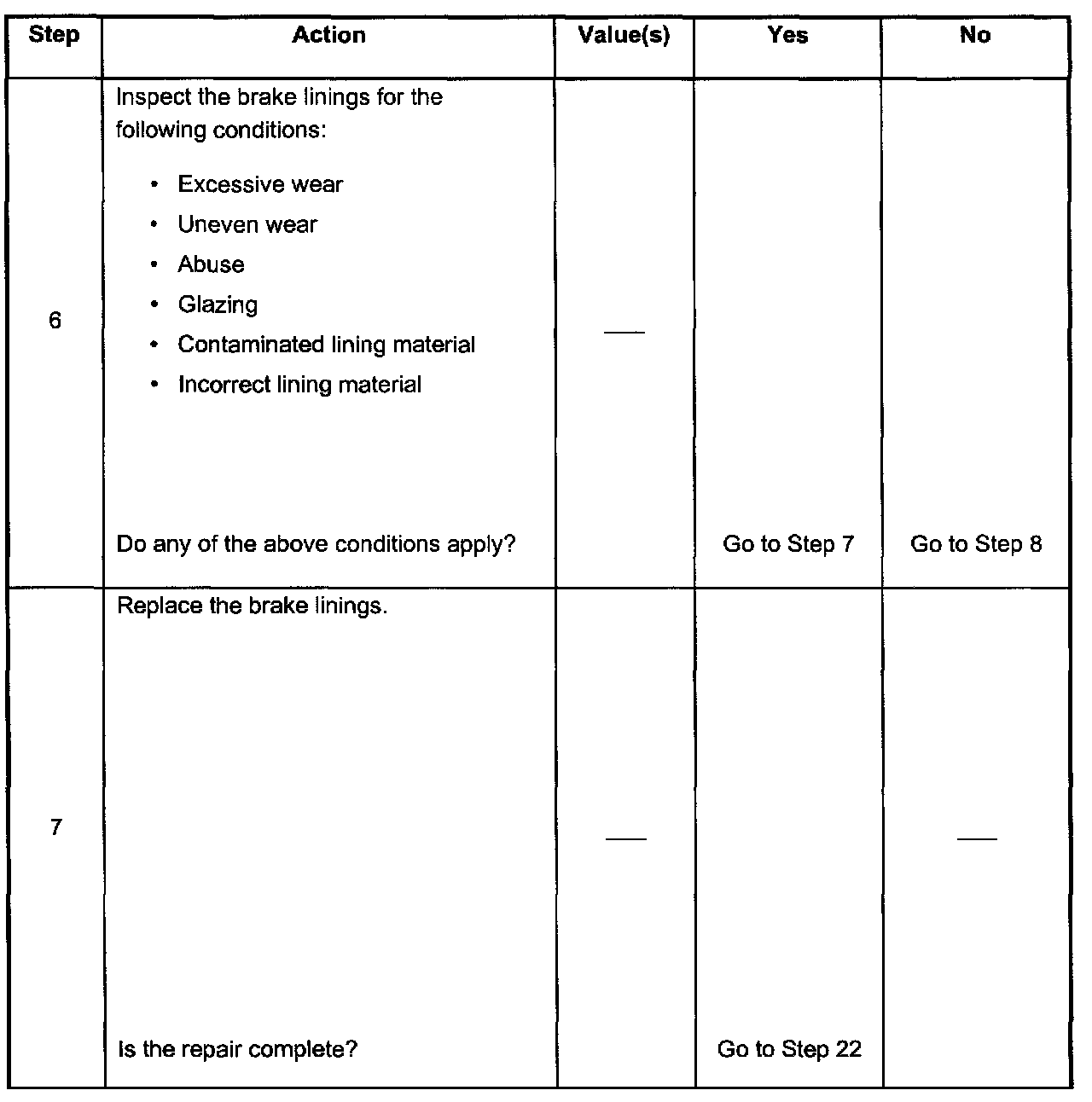

Steps 6 - 7:

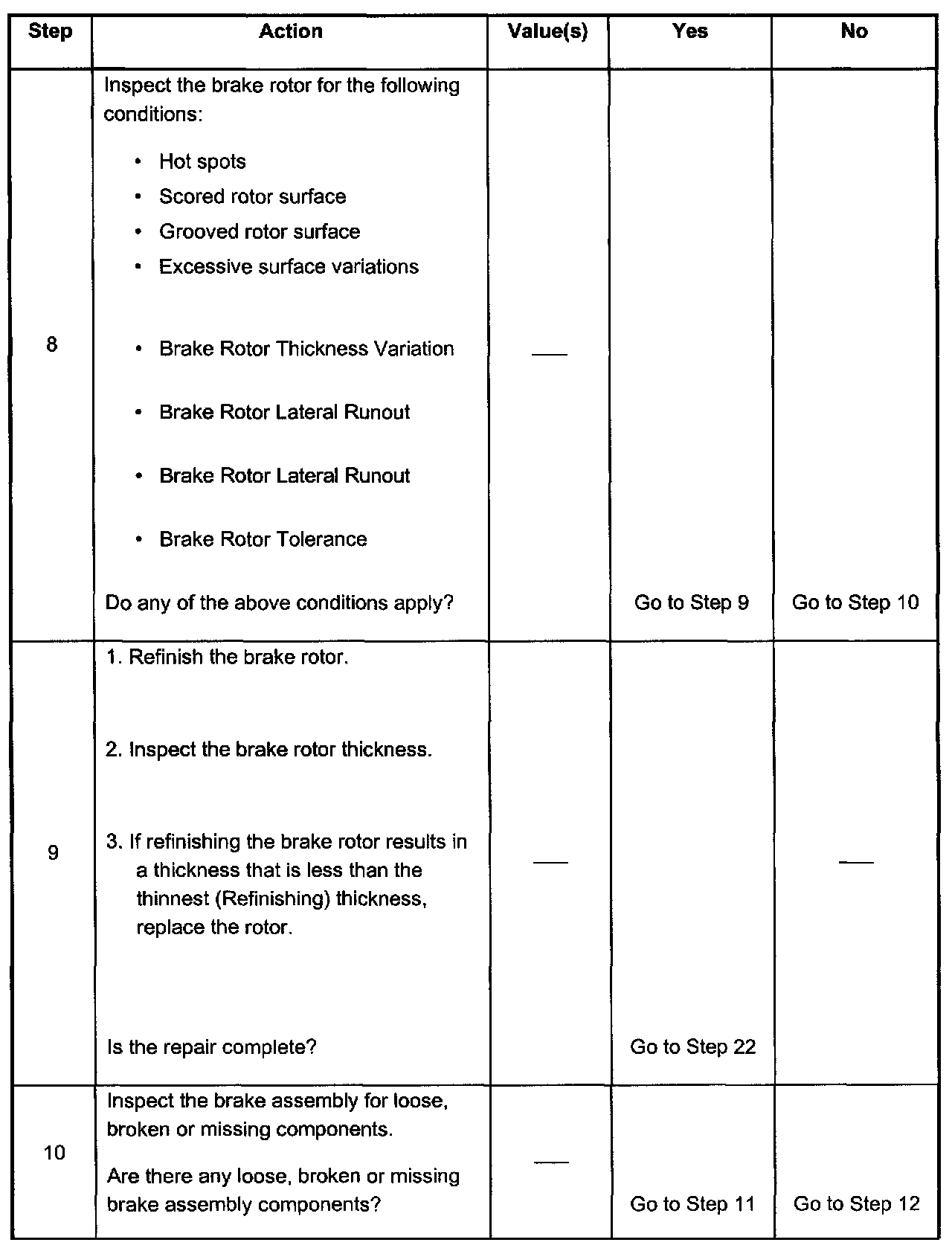

Steps 8 - 10:

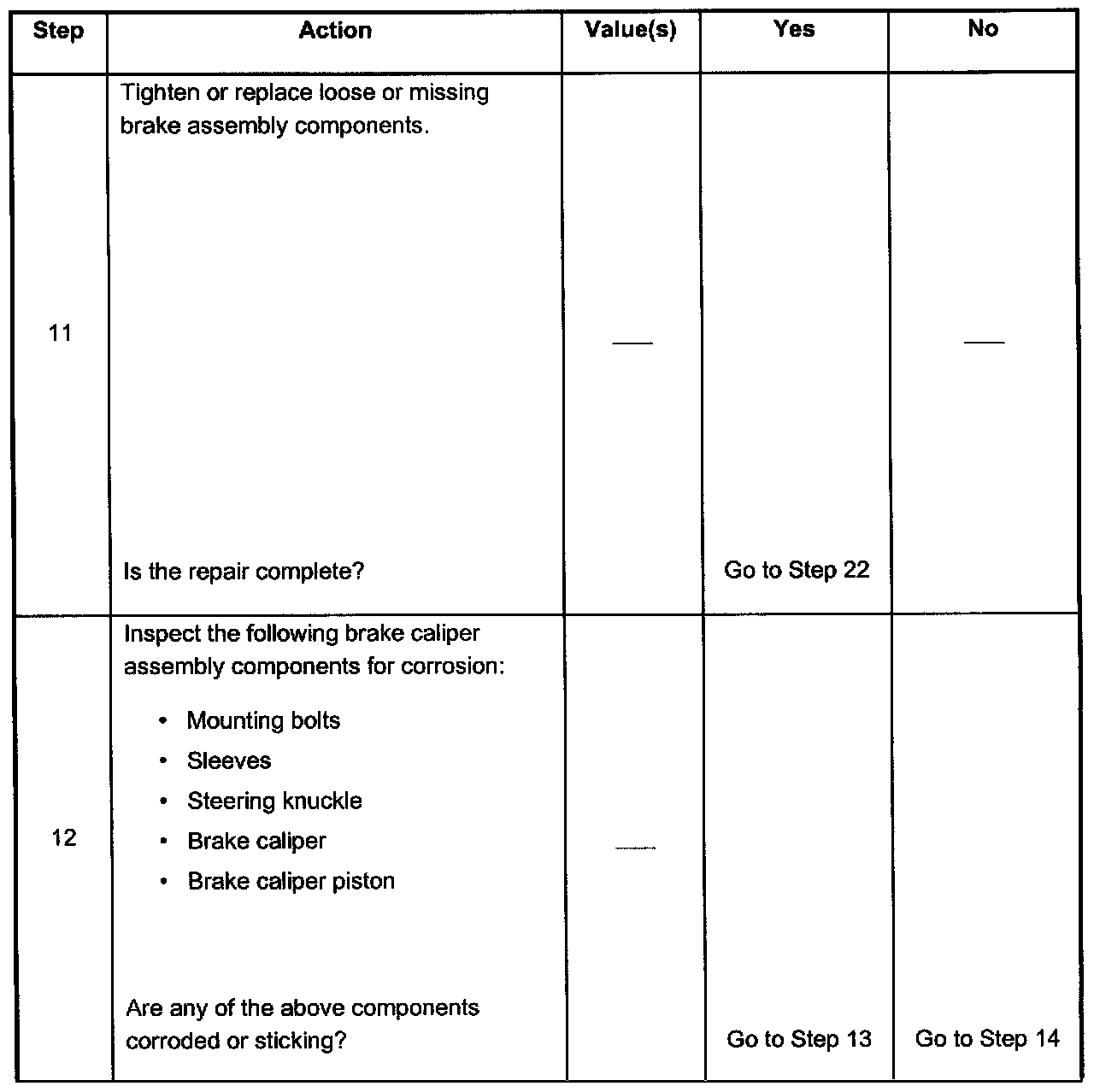

Steps 11 - 12:

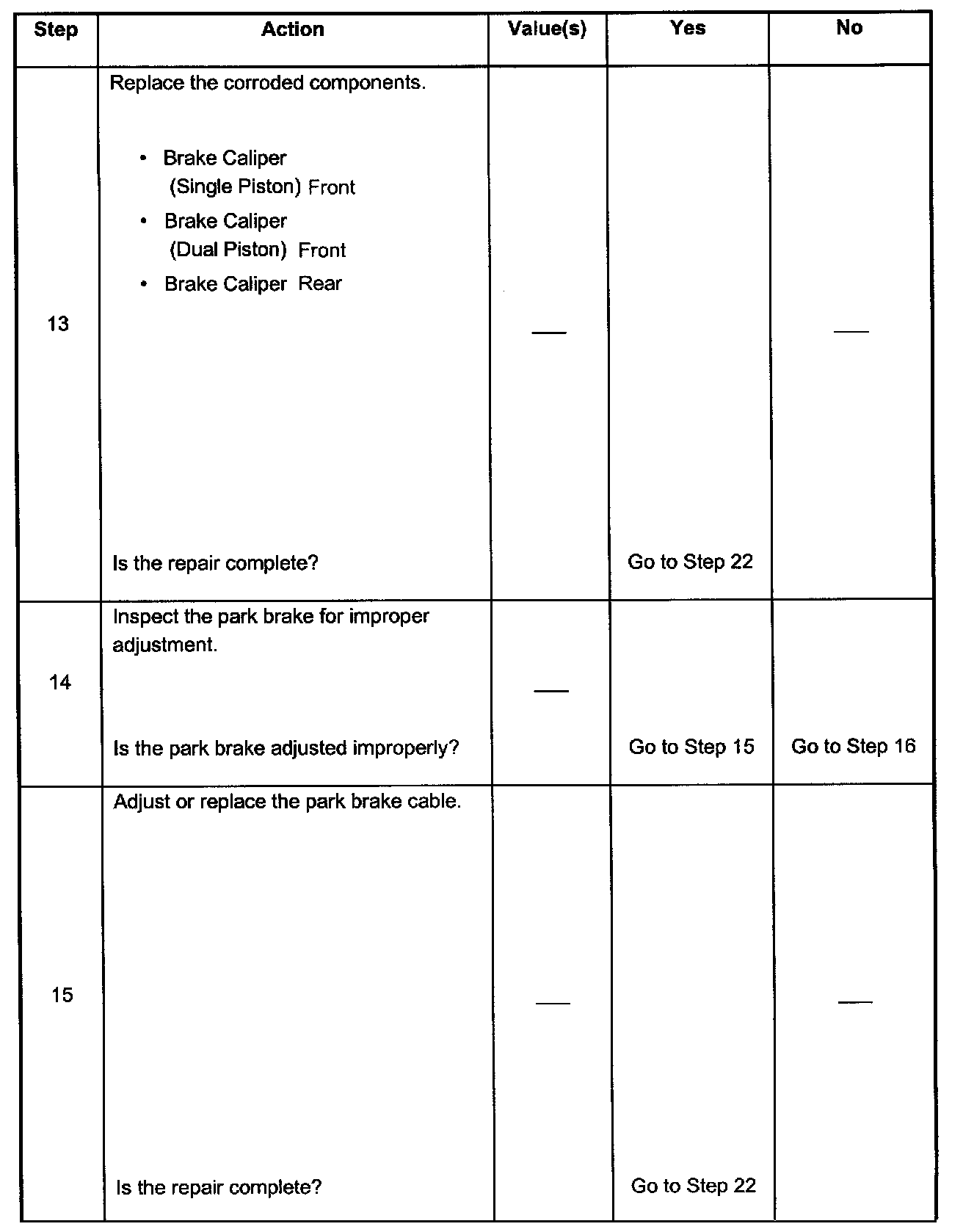

Steps 13 - 15:

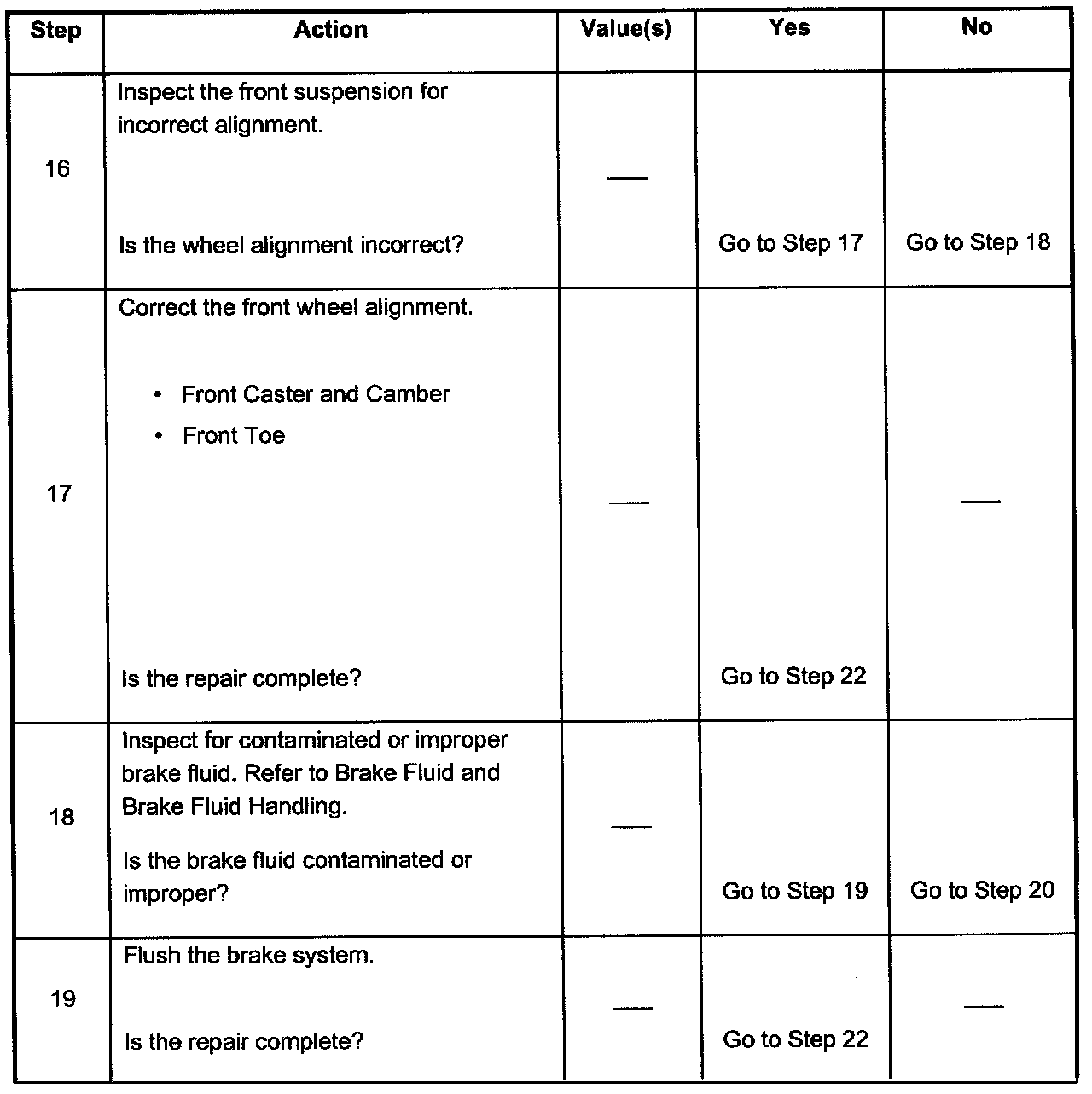

Steps 16 - 19:

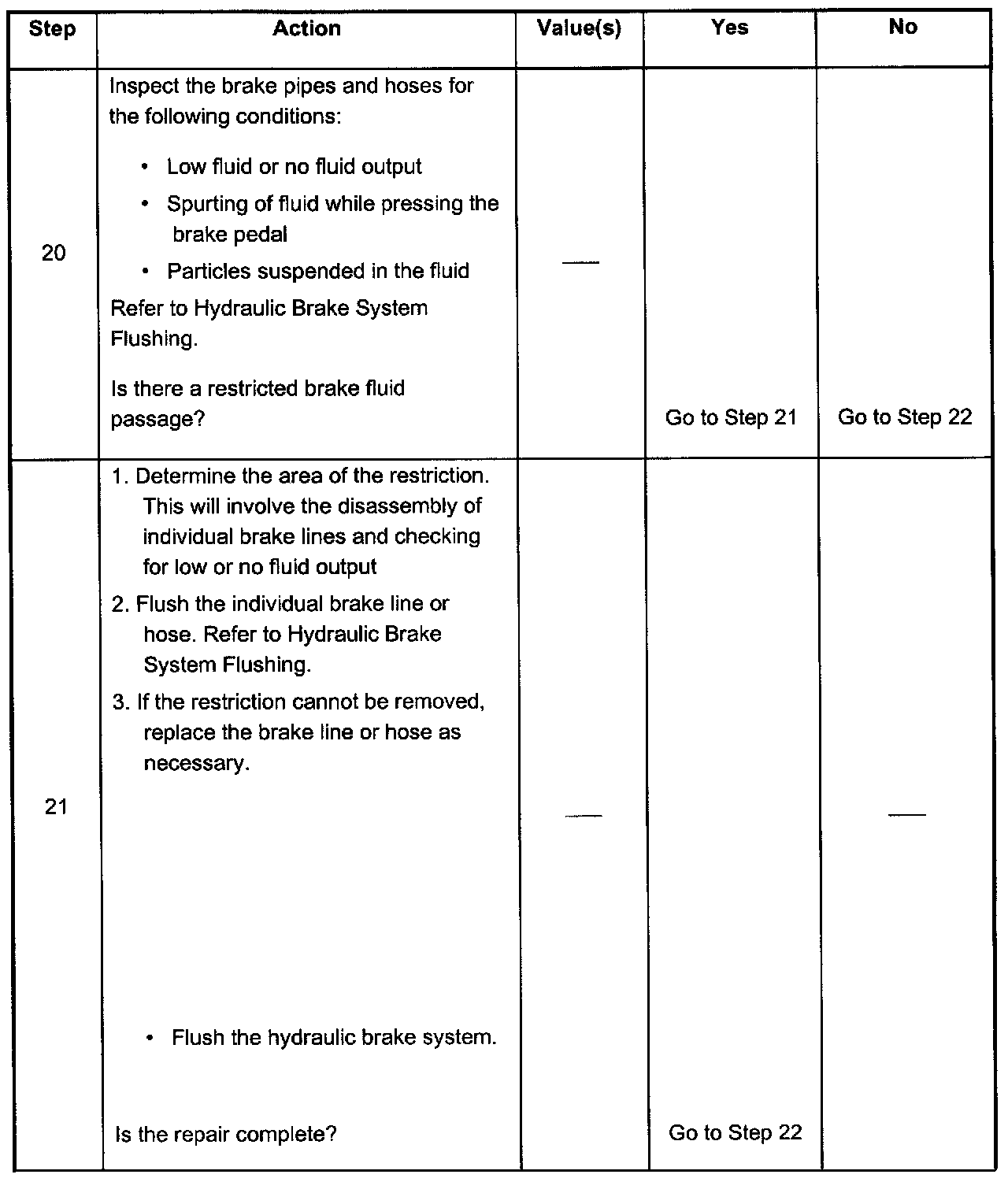

Steps 20 - 21:

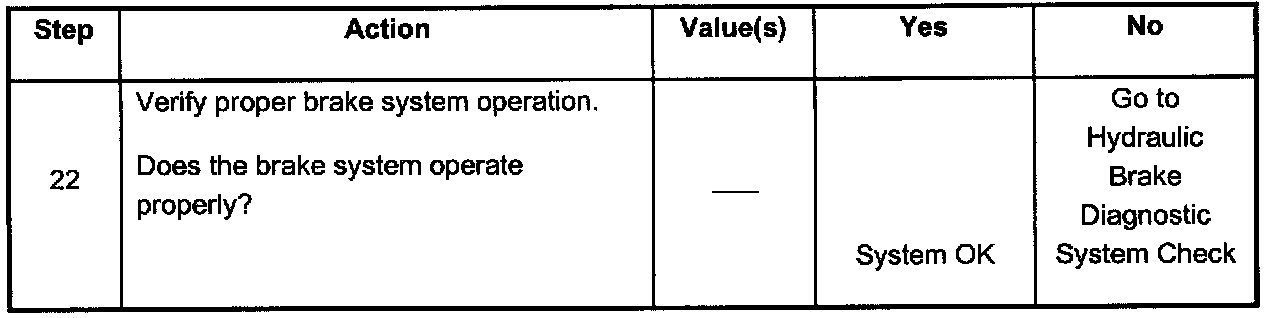

Step 22:





Braking Uneven - Side to Side
