Braking Uneven-Front to Rear

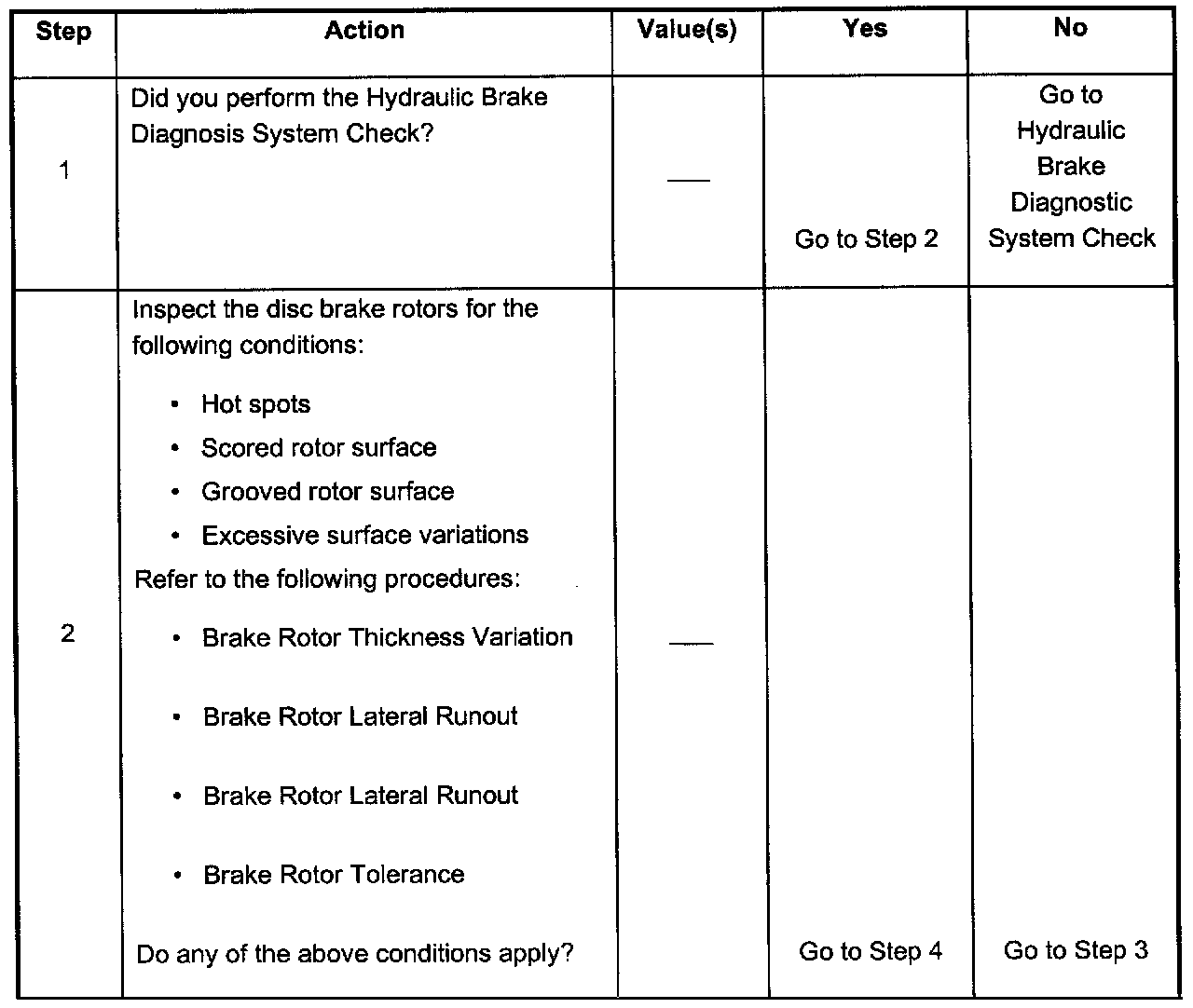

Steps 1 - 2:

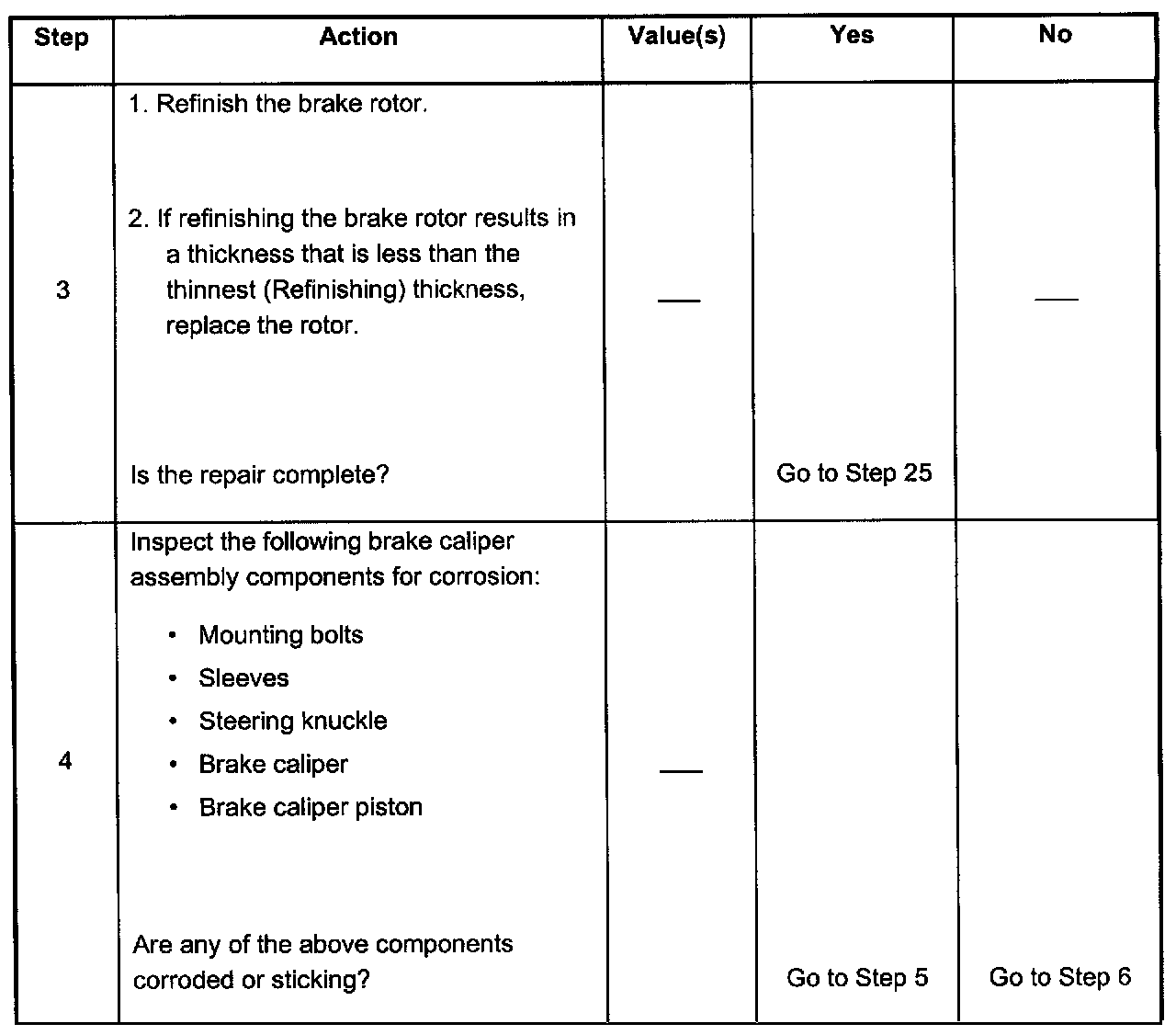

Steps 3 - 4:

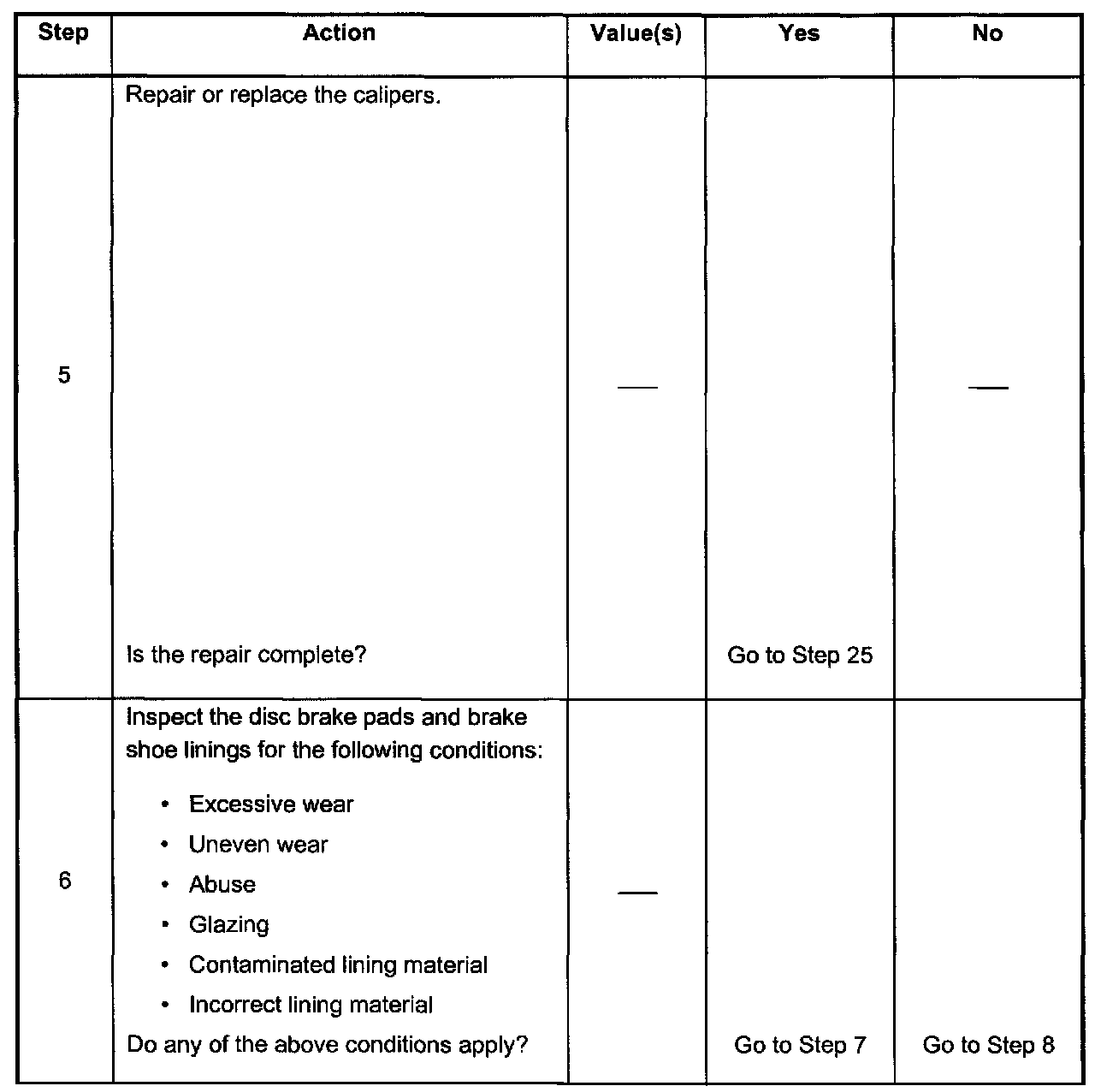

Steps 5 - 6:

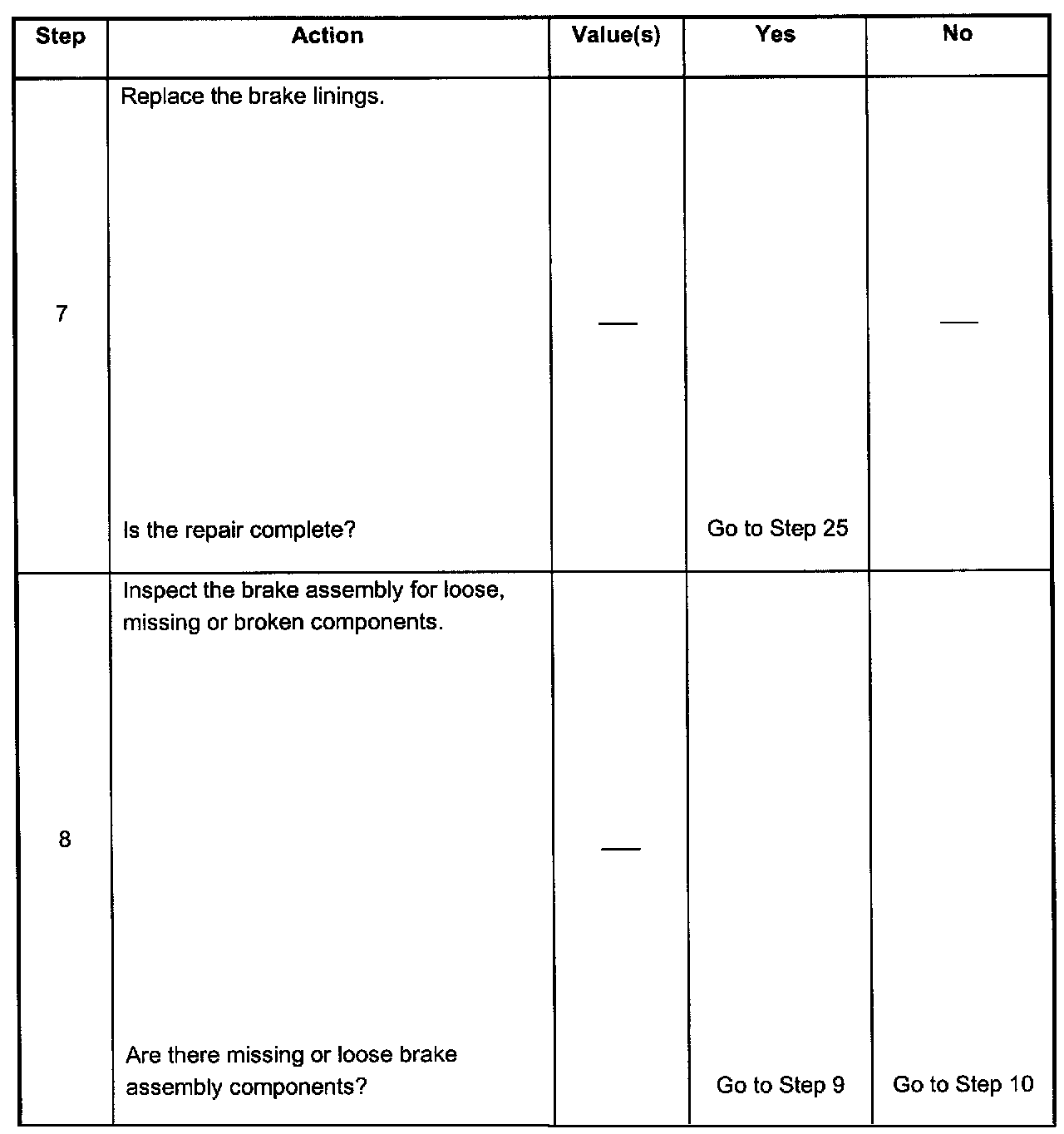

Steps 7 - 8:

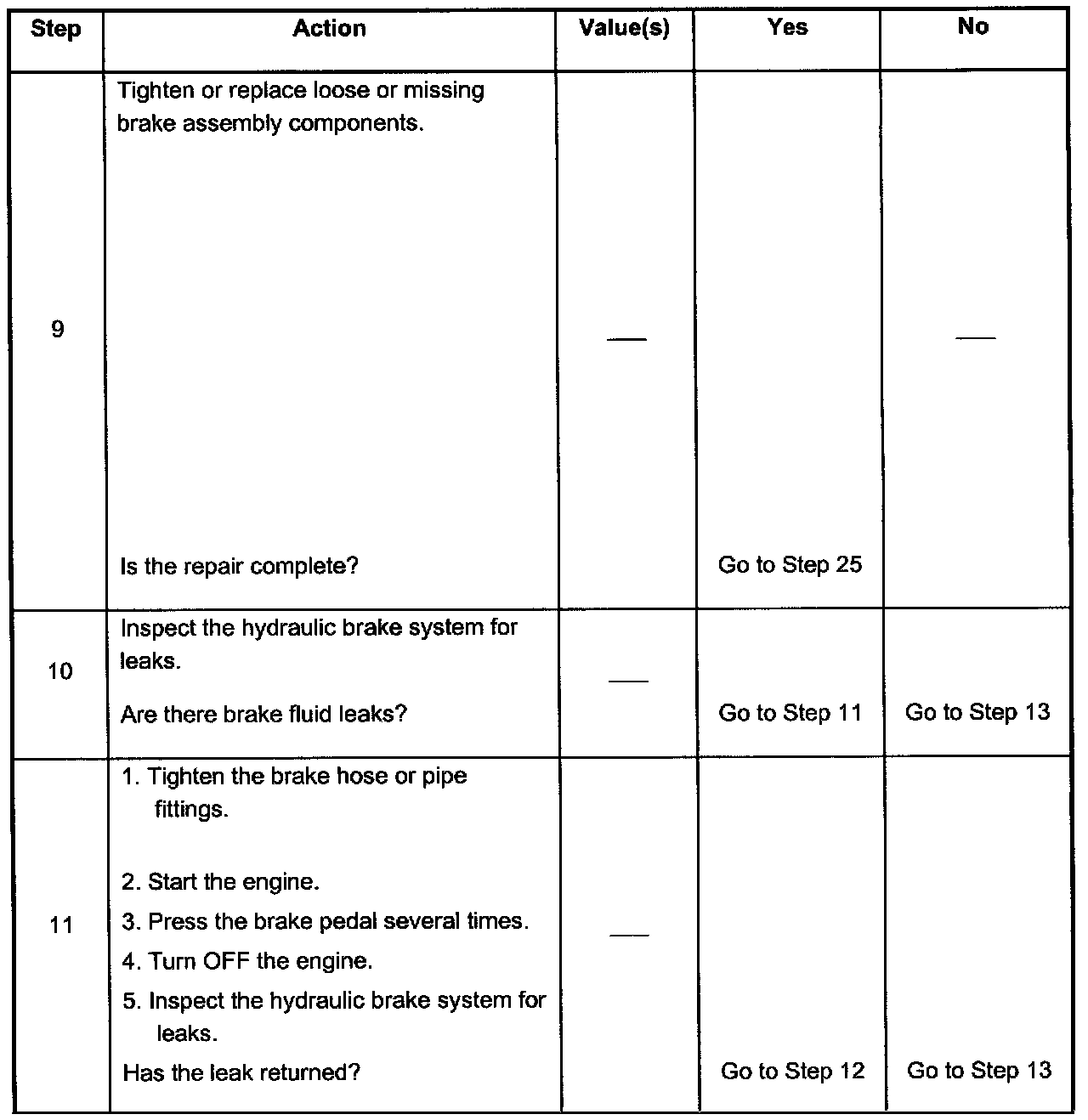

Steps 9 - 11:

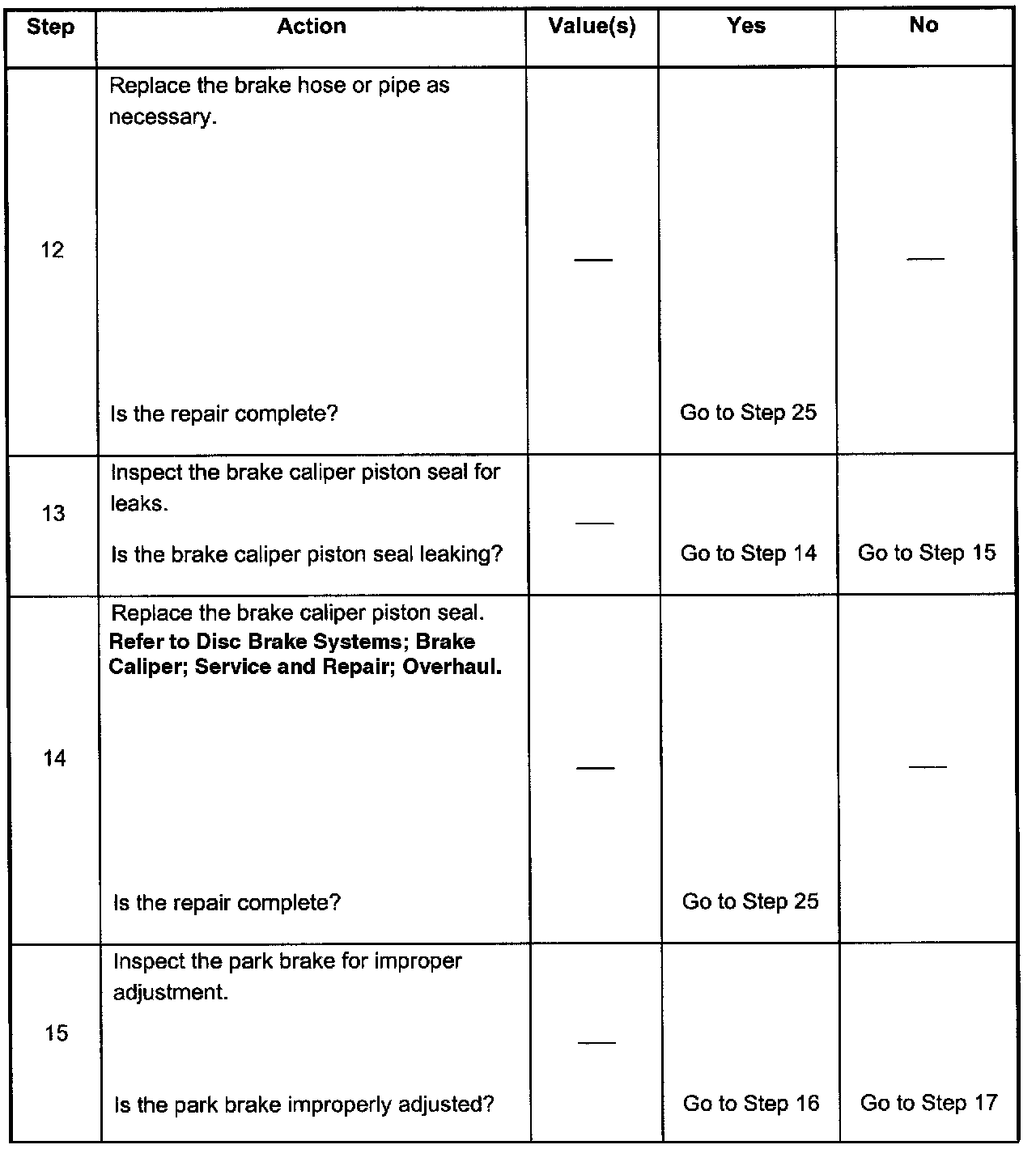

Steps 12 - 15:

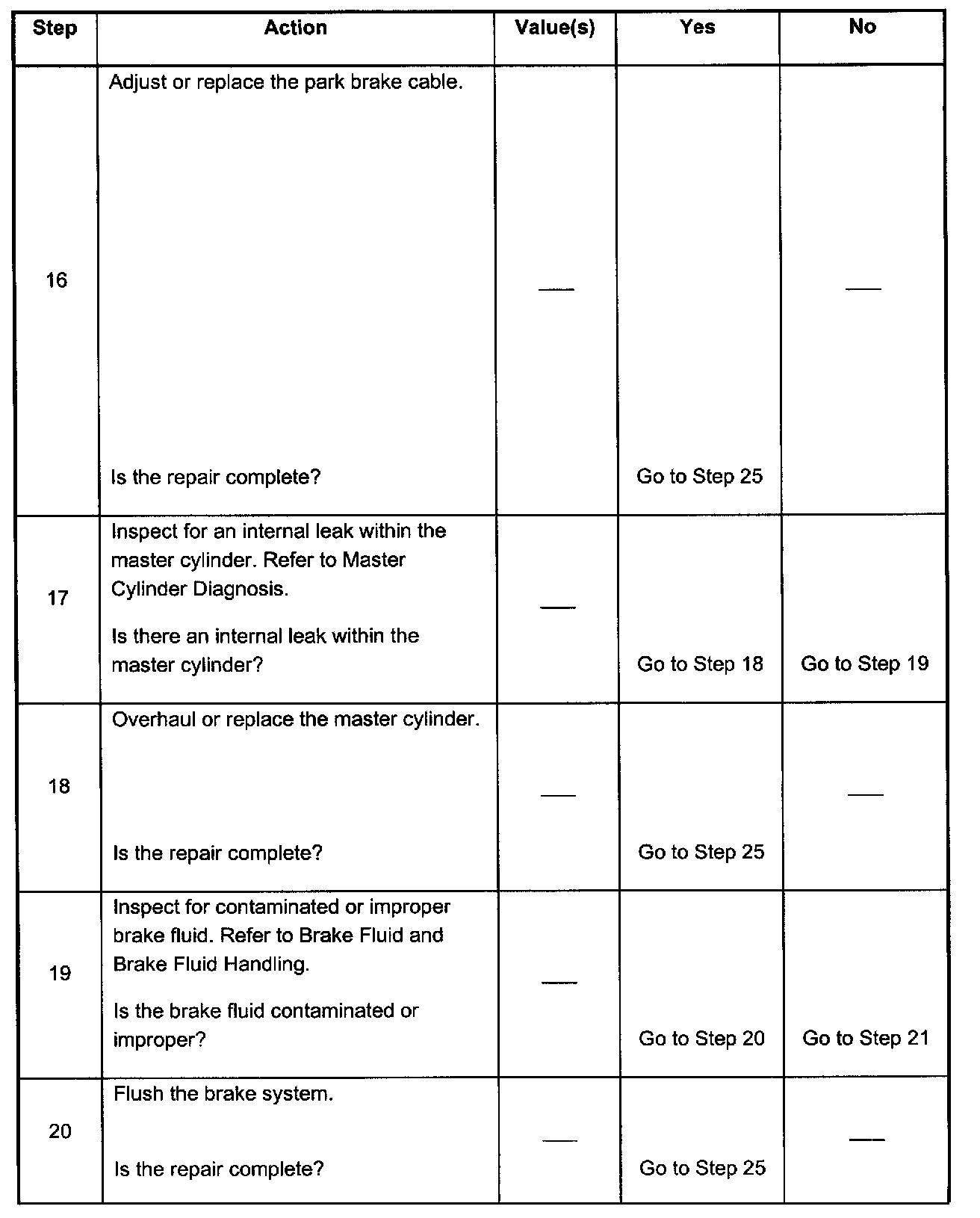

Steps 16 - 20:

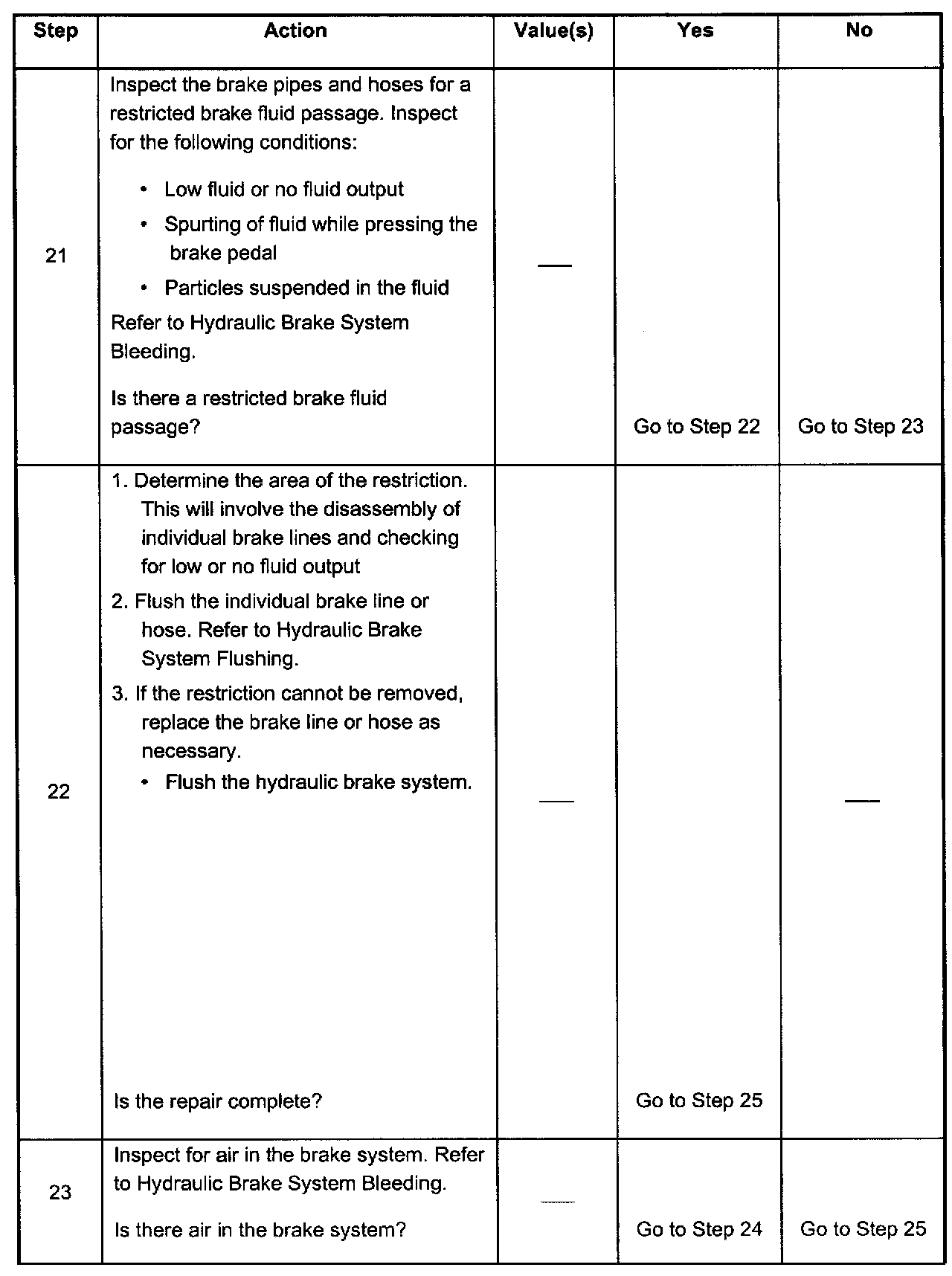

Steps 21 - 23:

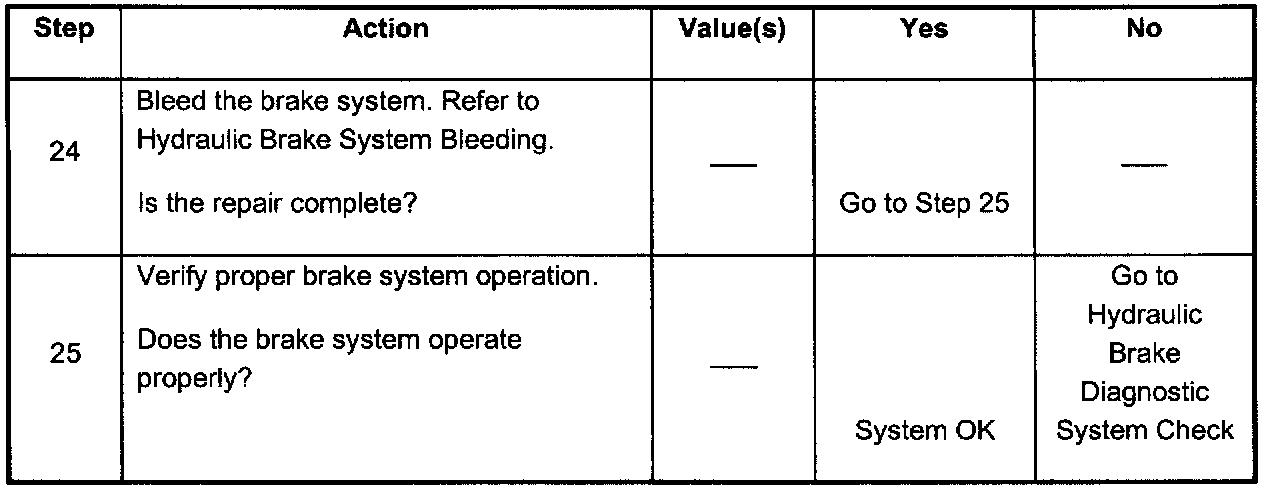

Steps 24 - 25:





Braking Uneven - Front to Rear
