Brake System Slow Response

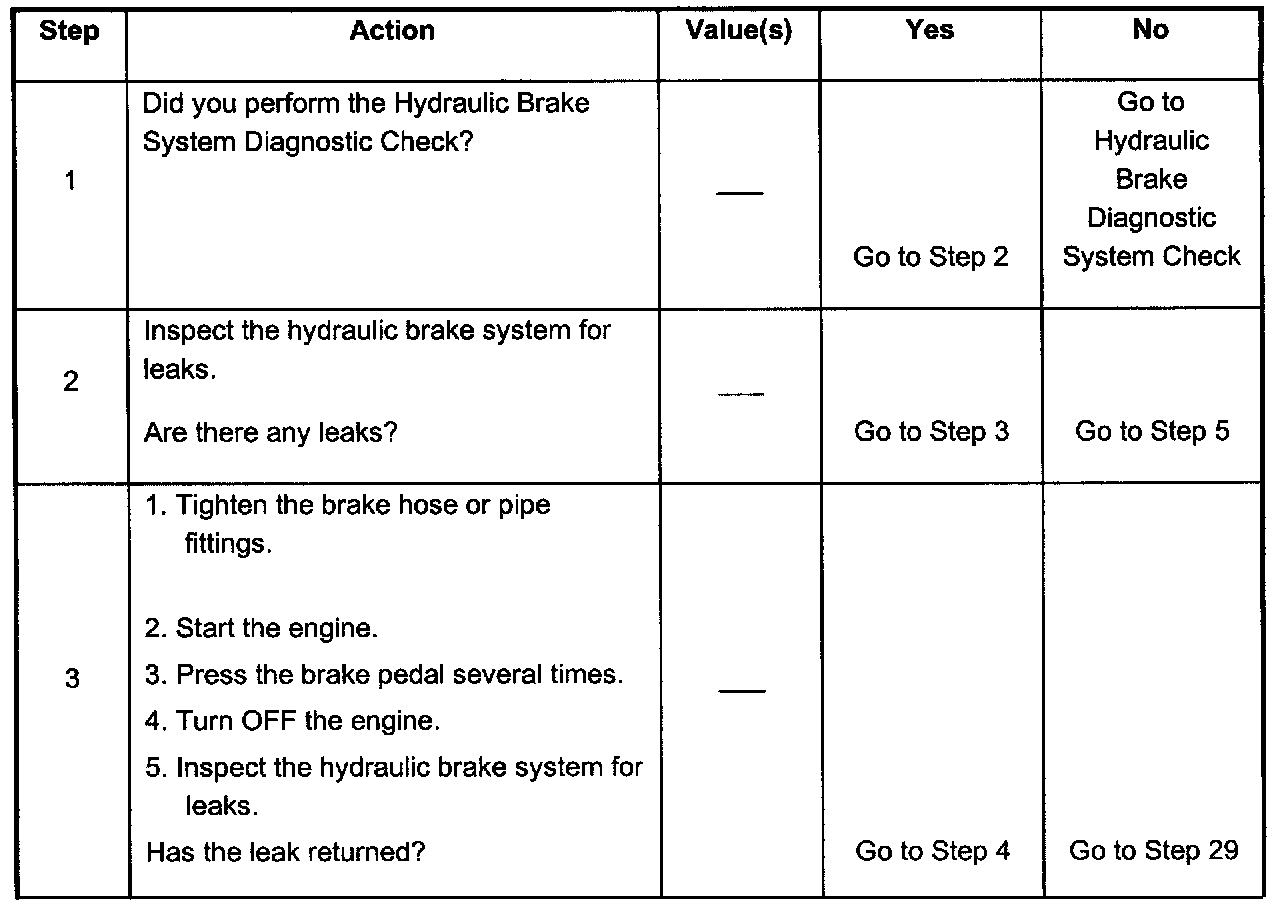

Steps 1 - 3:

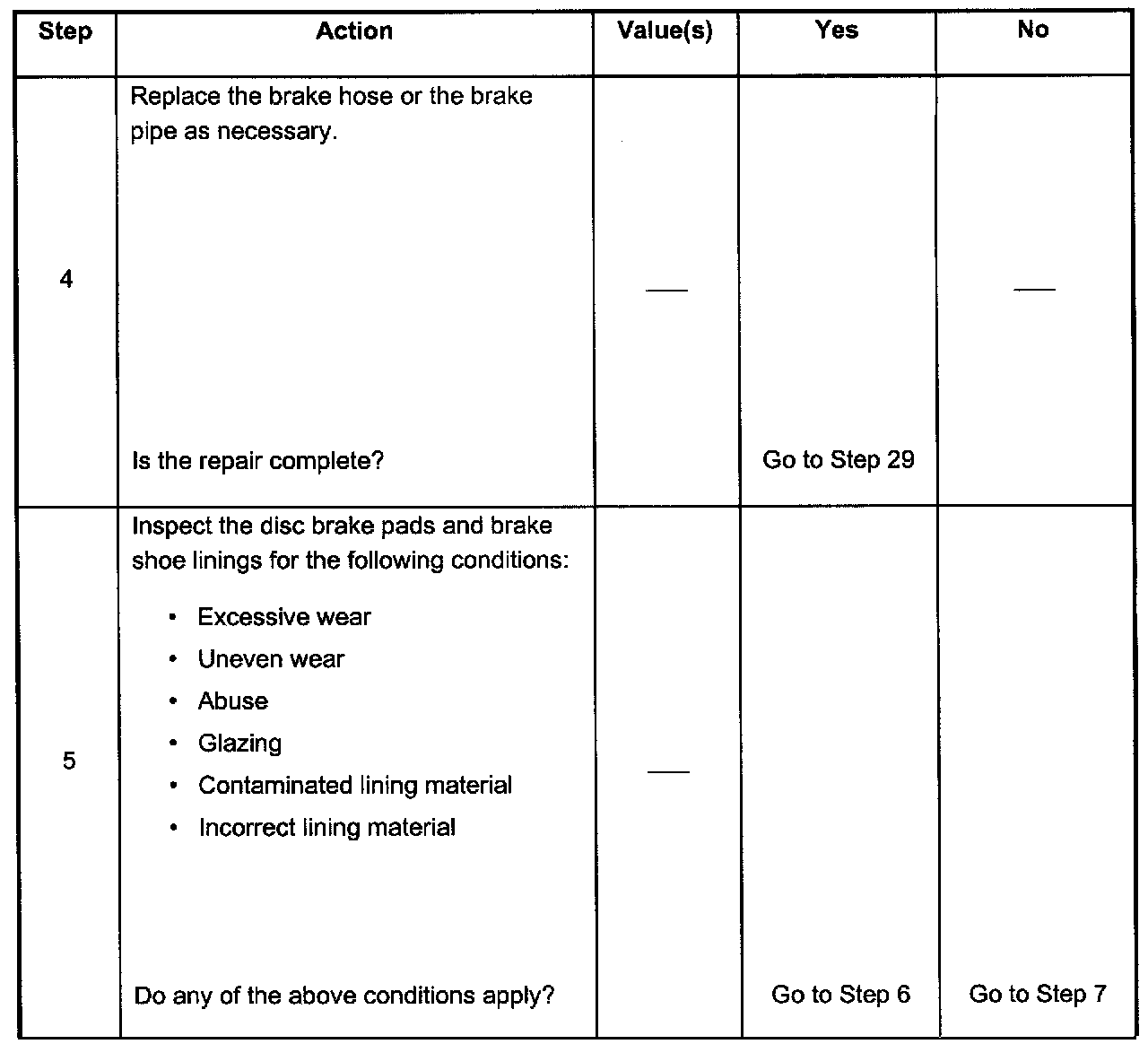

Steps 4 - 5:

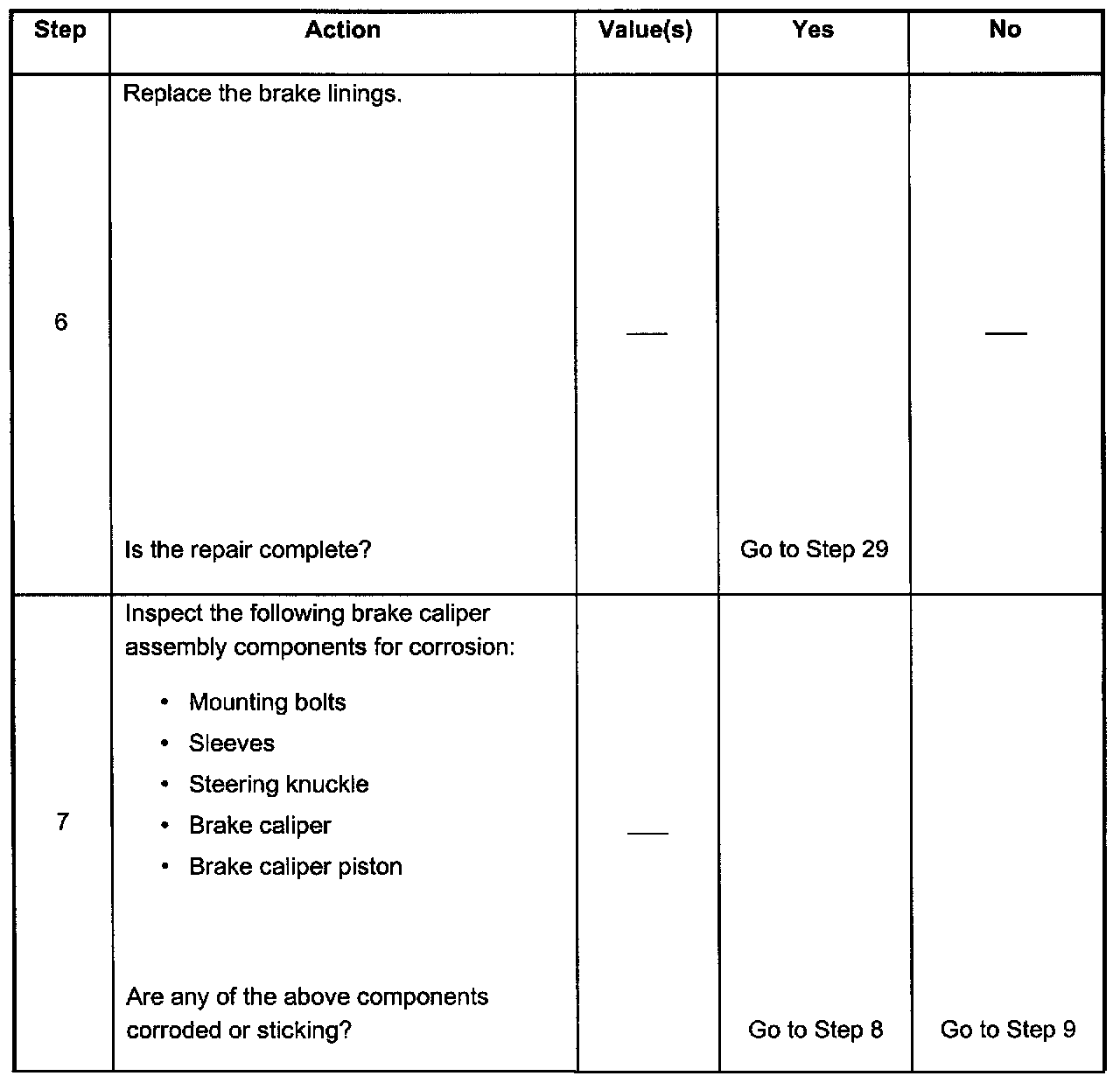

Steps 6 - 7:

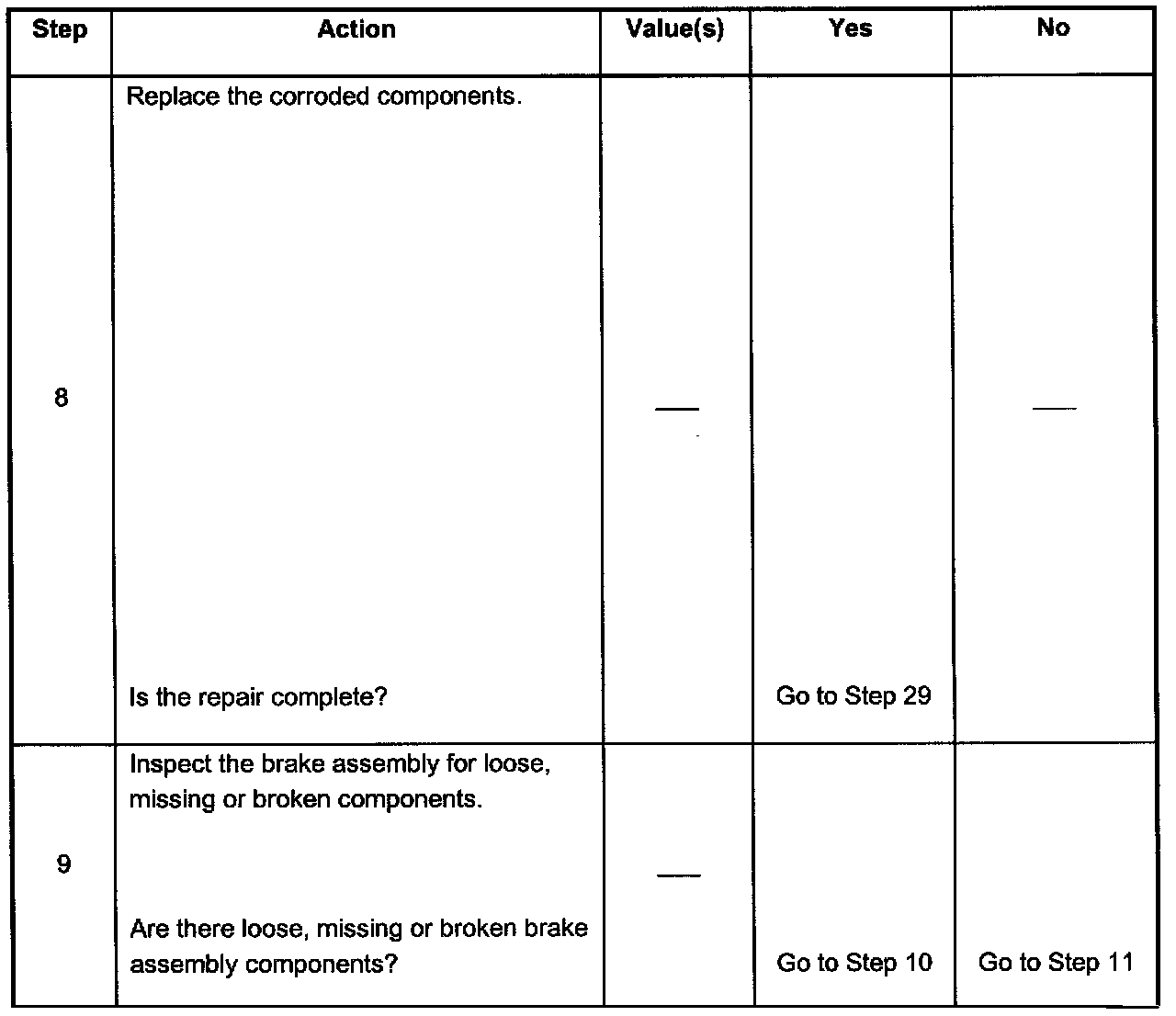

Steps 8 - 9:

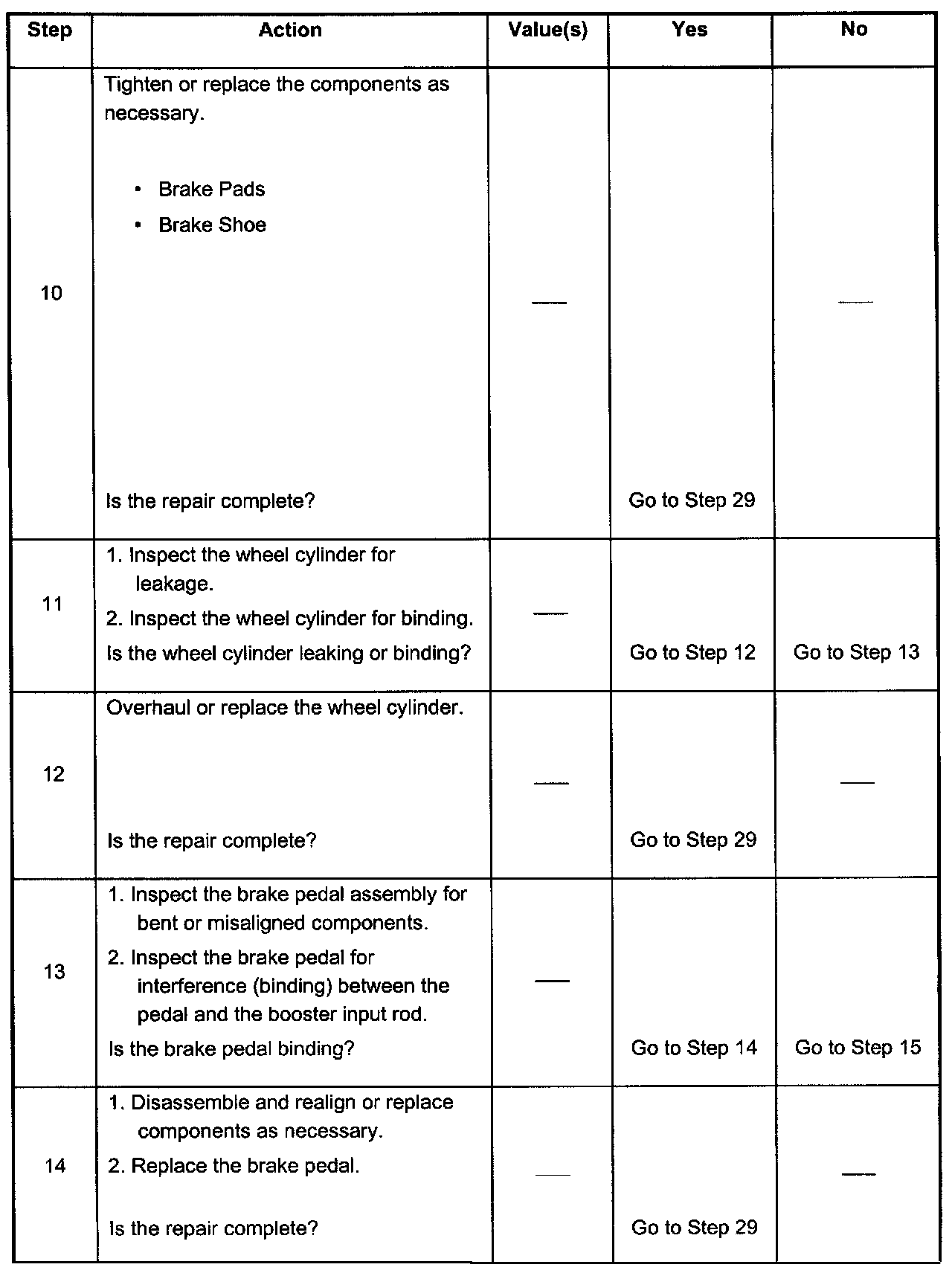

Steps 10 - 14:

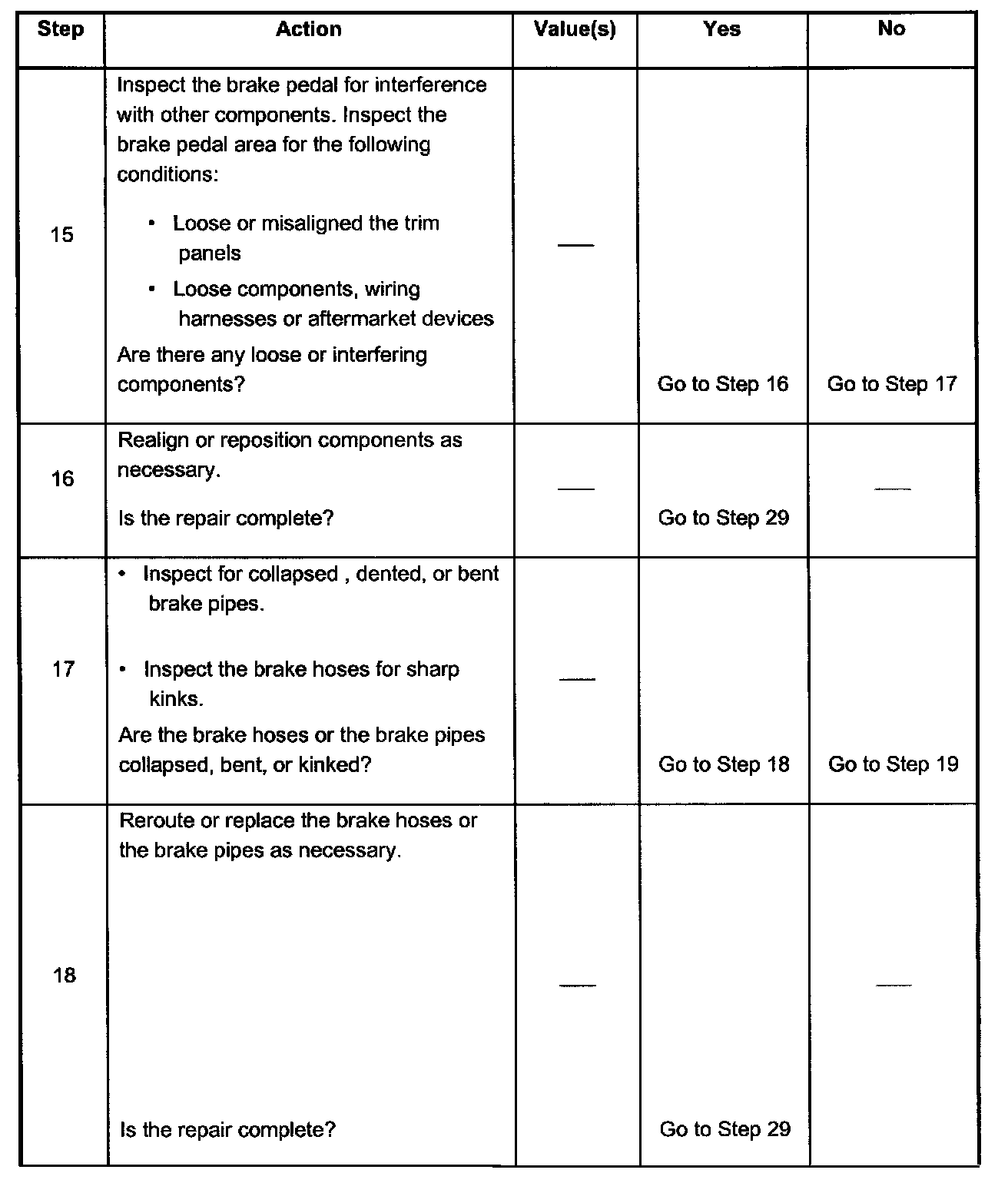

Steps 15 - 18:

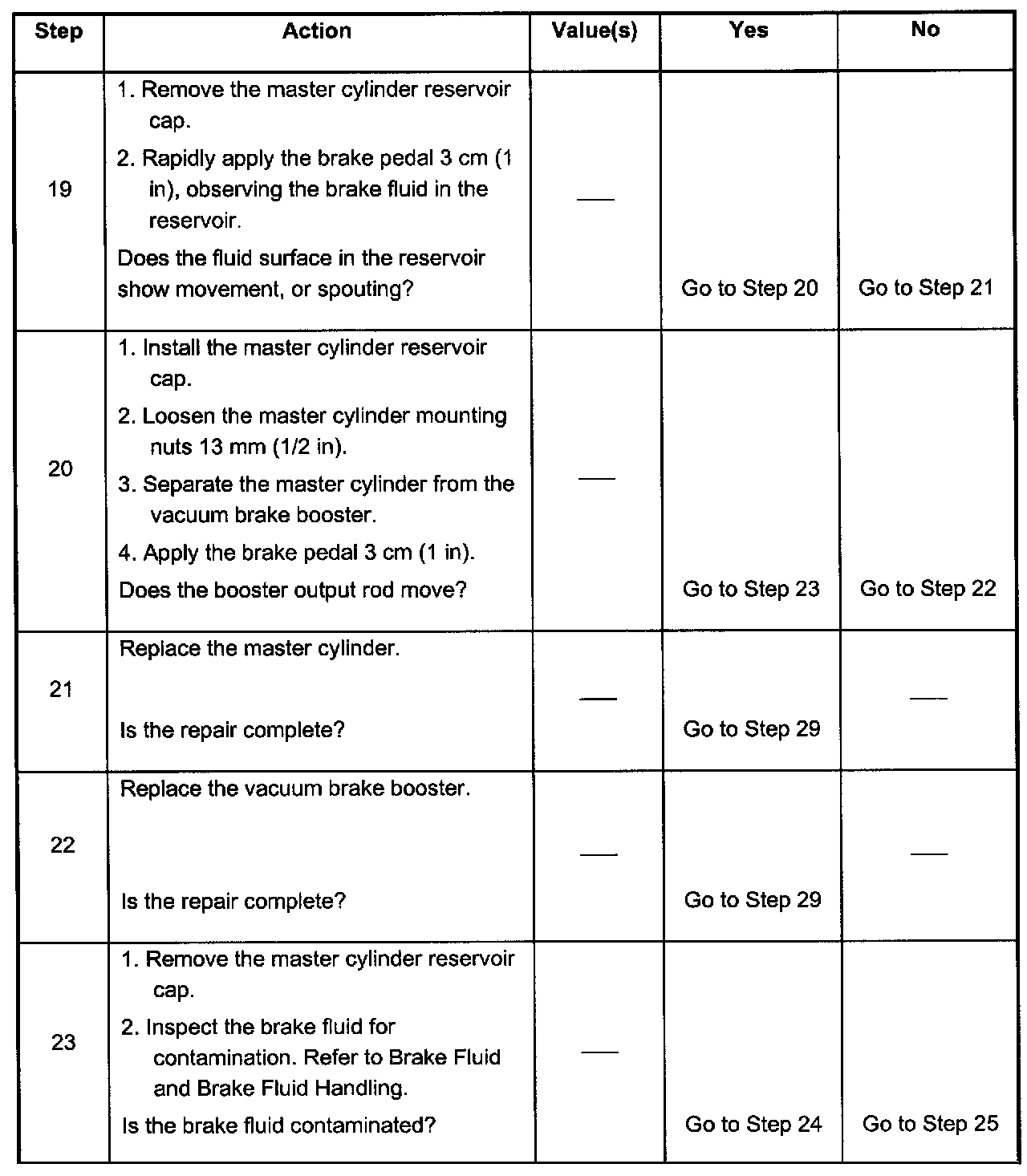

Steps 19 - 23:

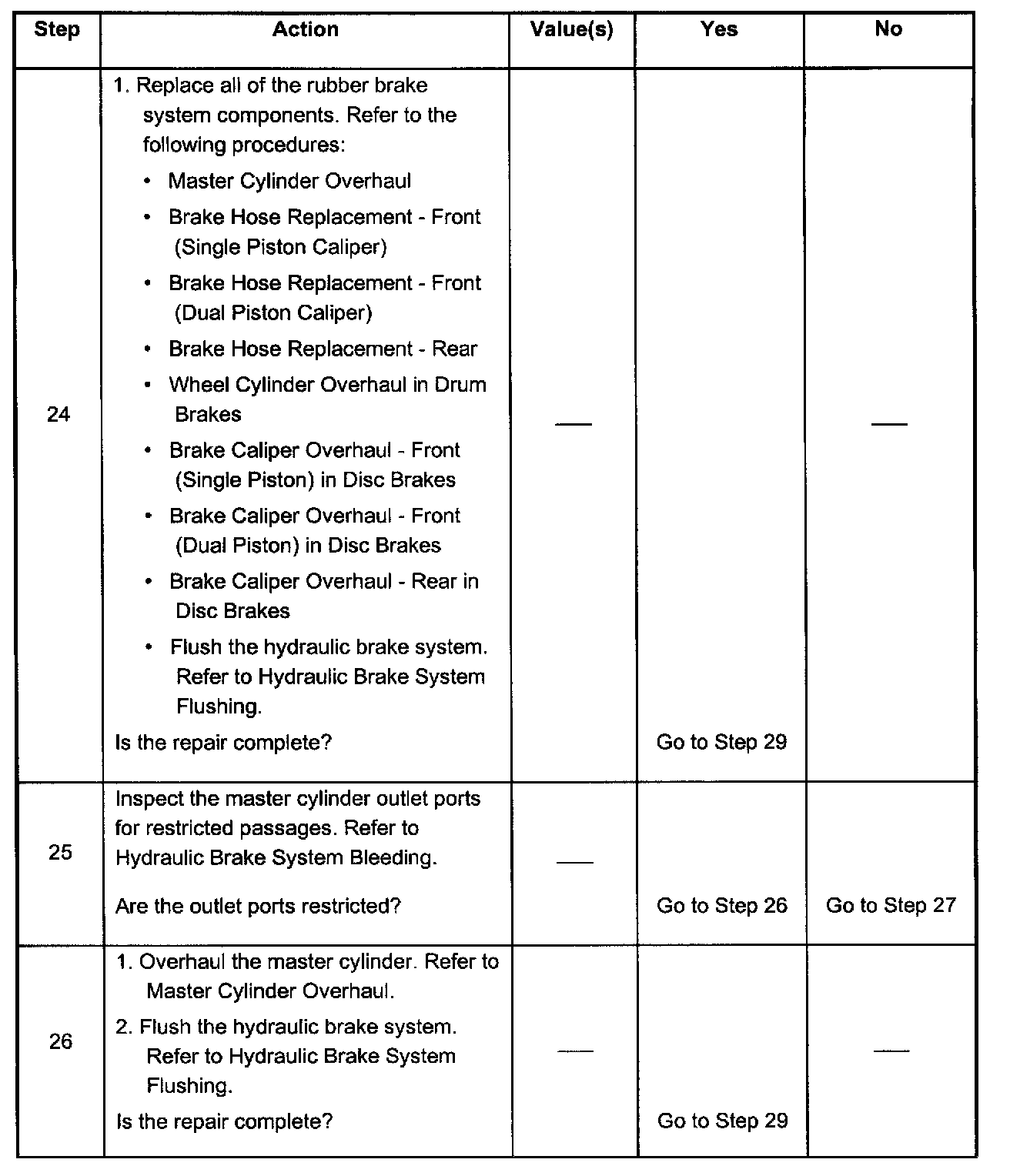

Steps 24 - 26:

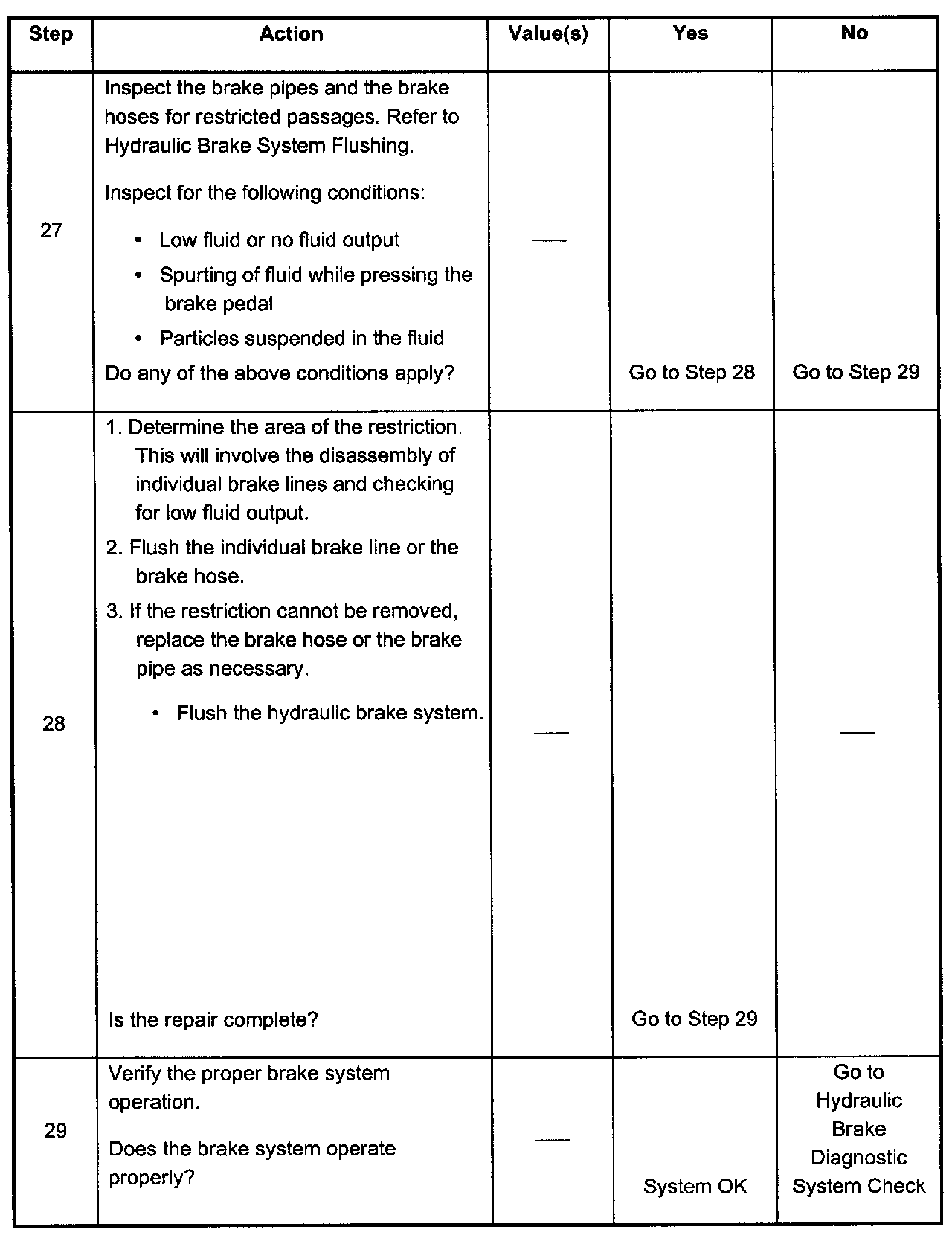

Steps 27 - 29:





Brake System Slow Response
