Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Brake System Slow Release

Brake System Slow Release

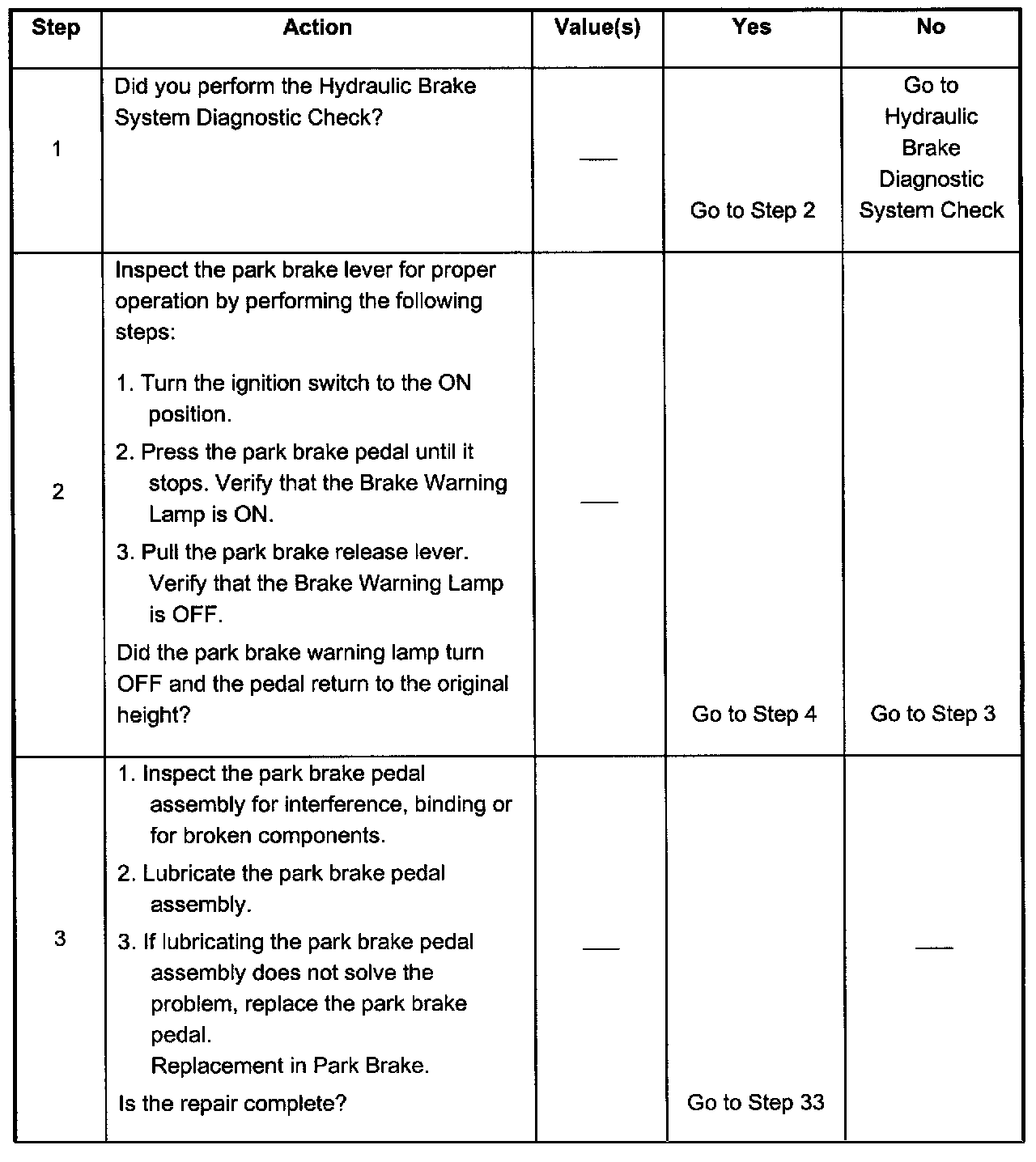

Steps 1 - 3:




Steps 4 - 6:

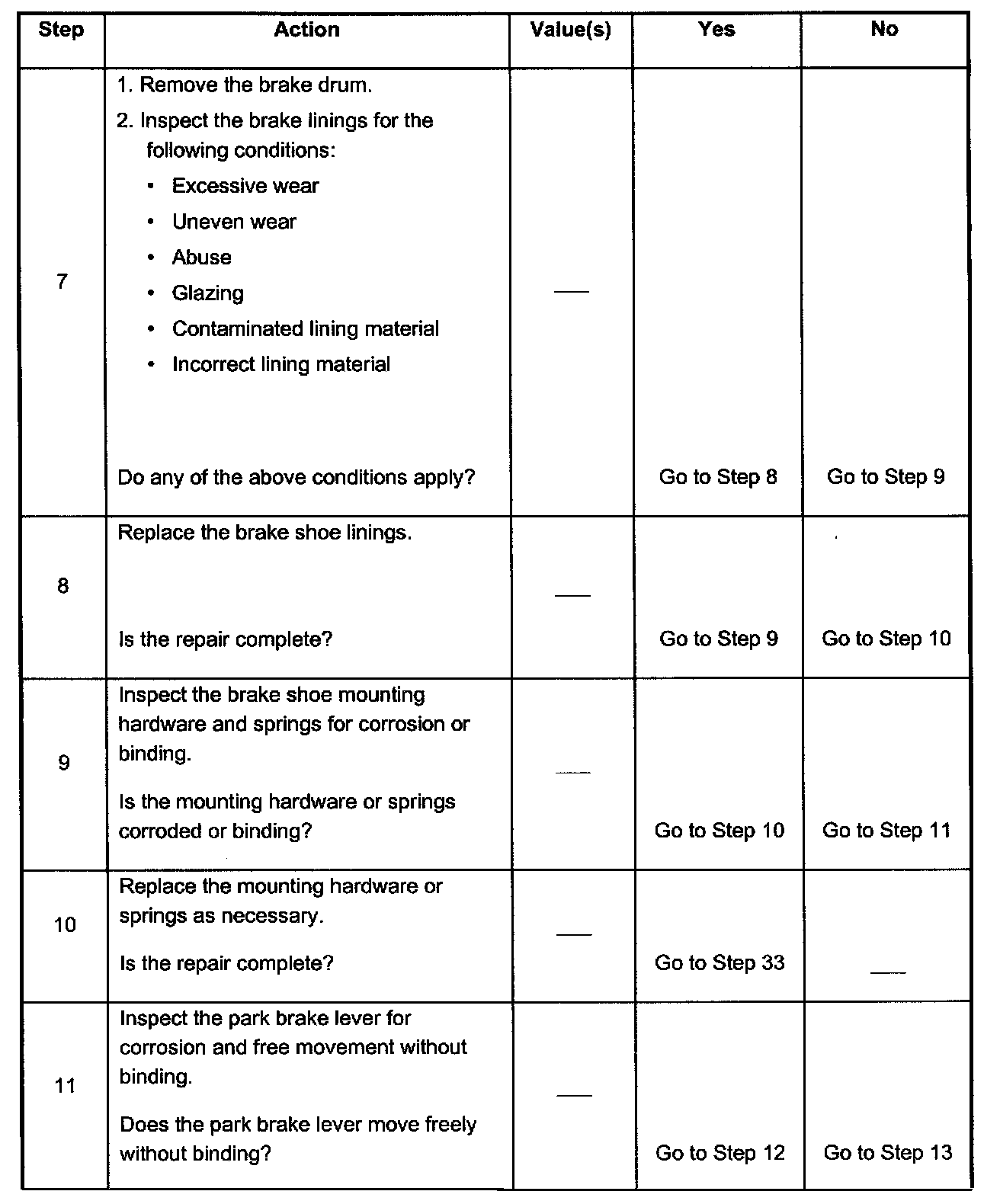

Steps 7 - 11:




Steps 12 - 16:

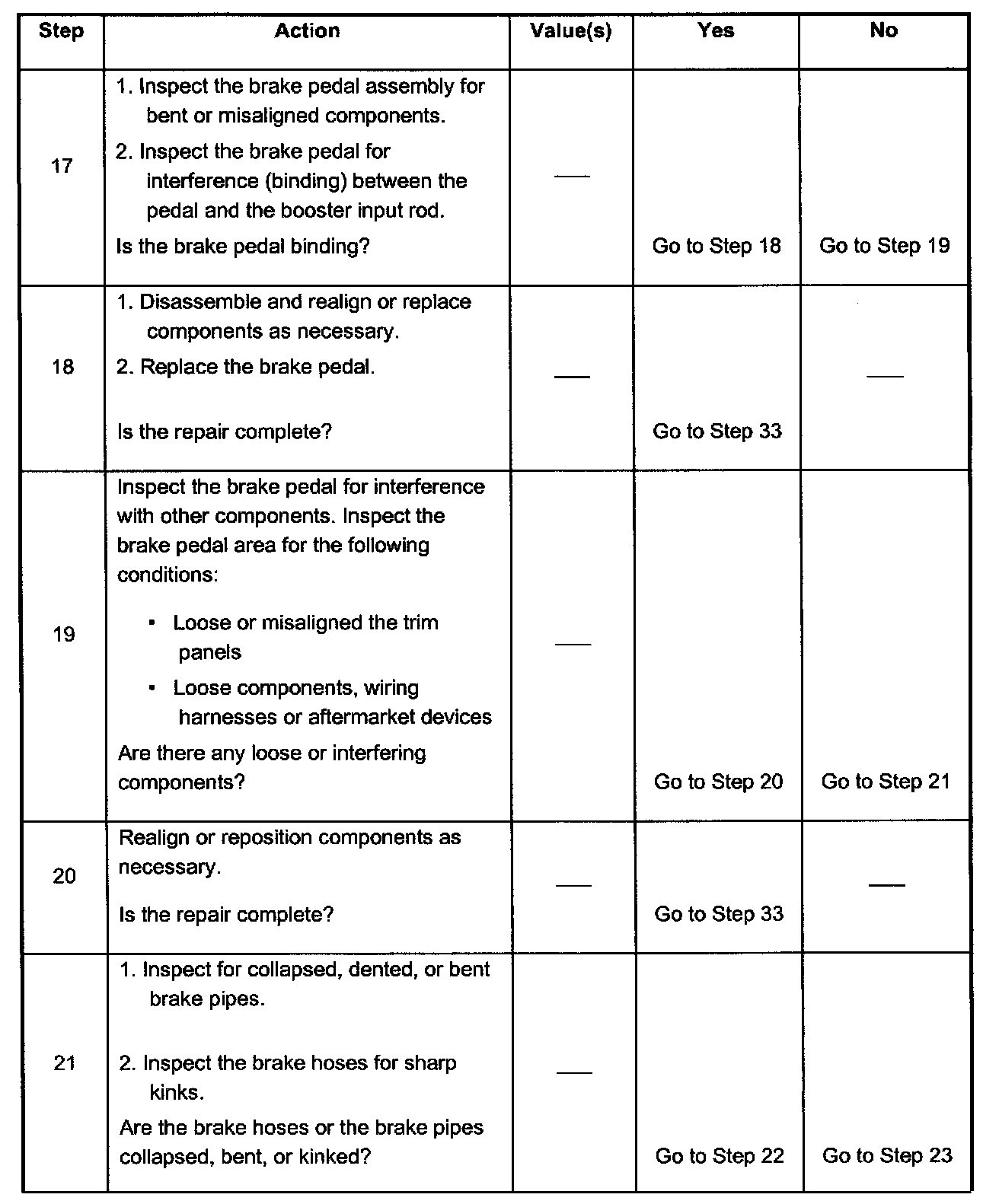

Steps 17 - 21:

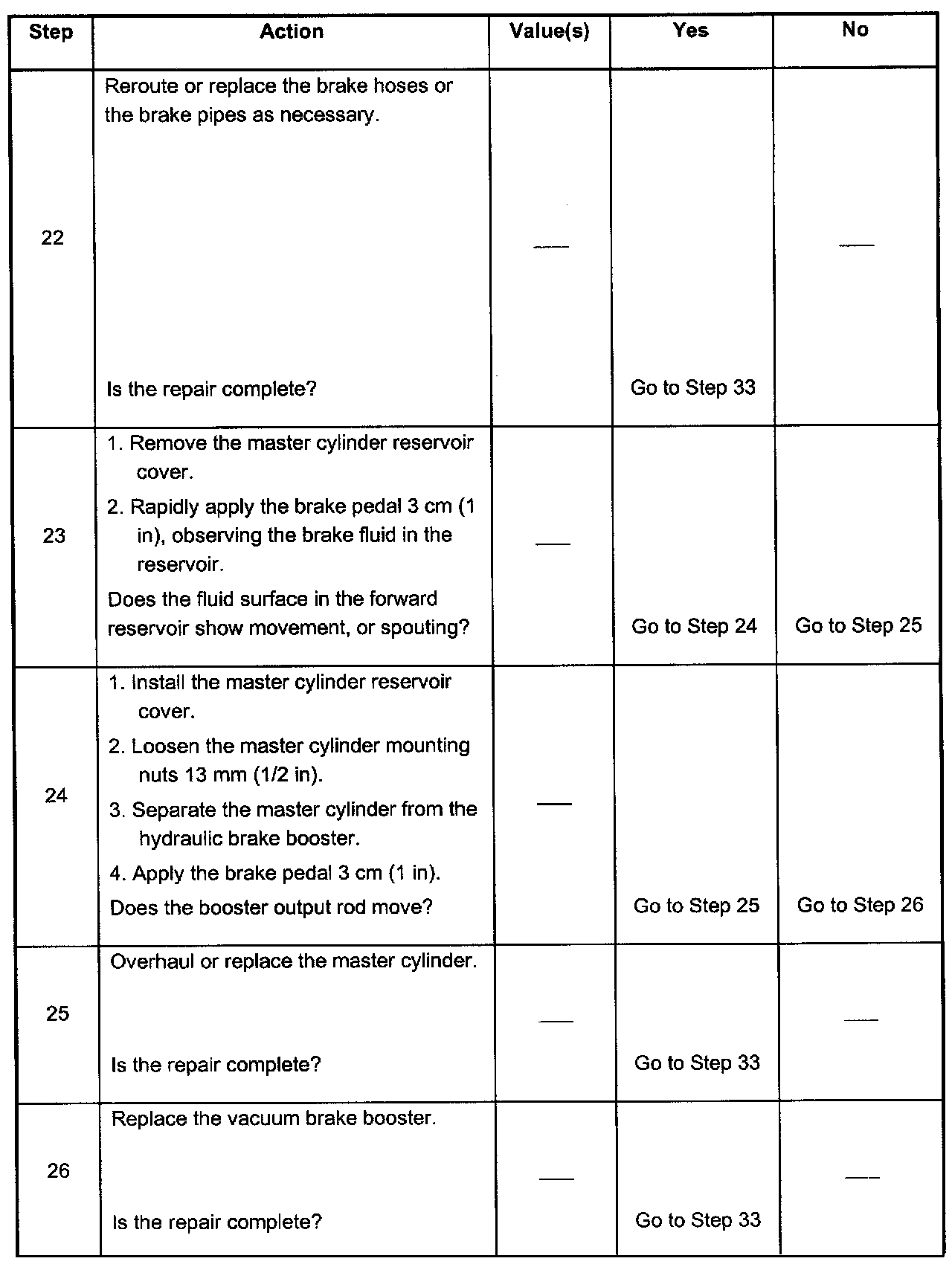

Steps 22 - 26:

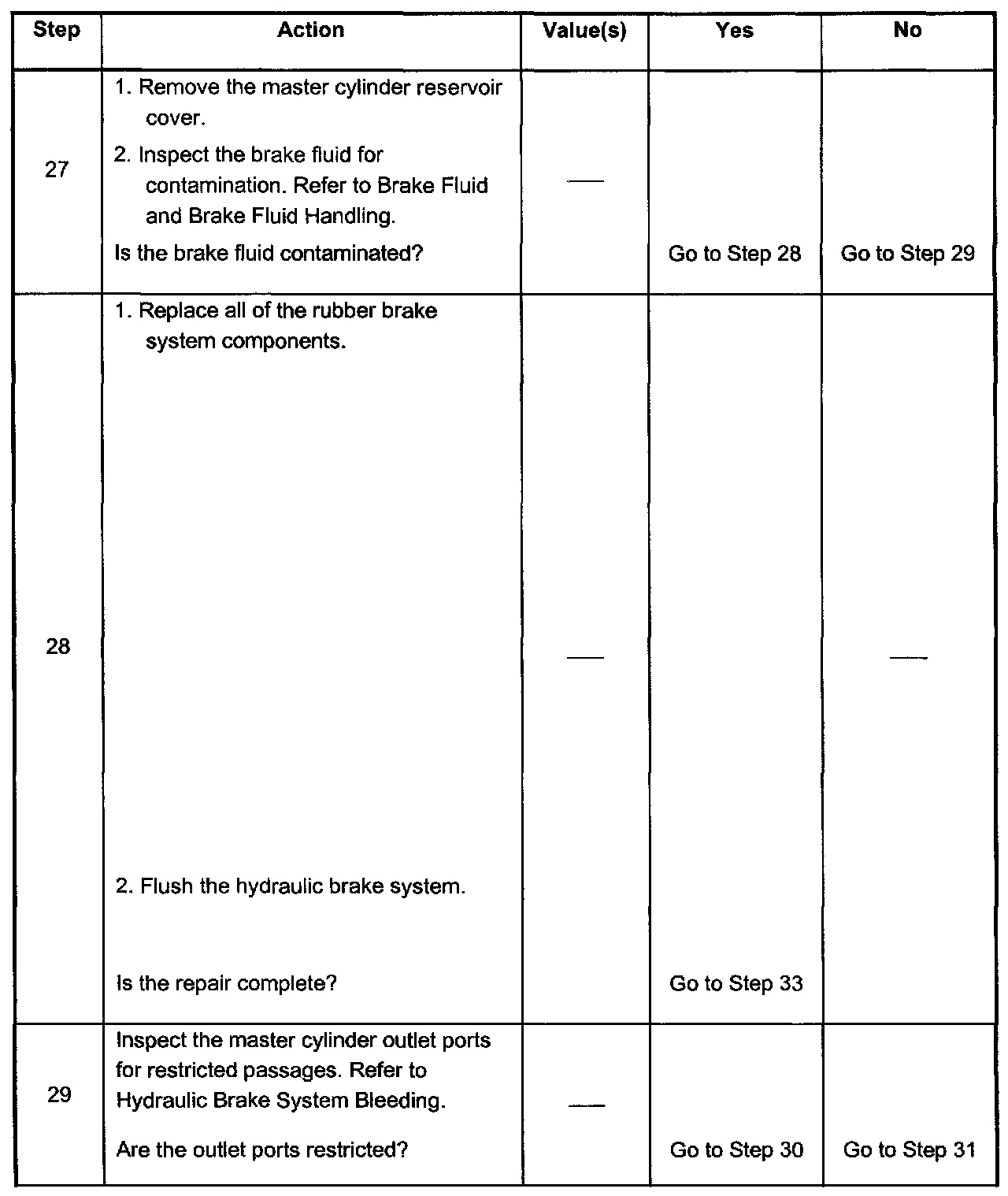

Steps 27 - 29:

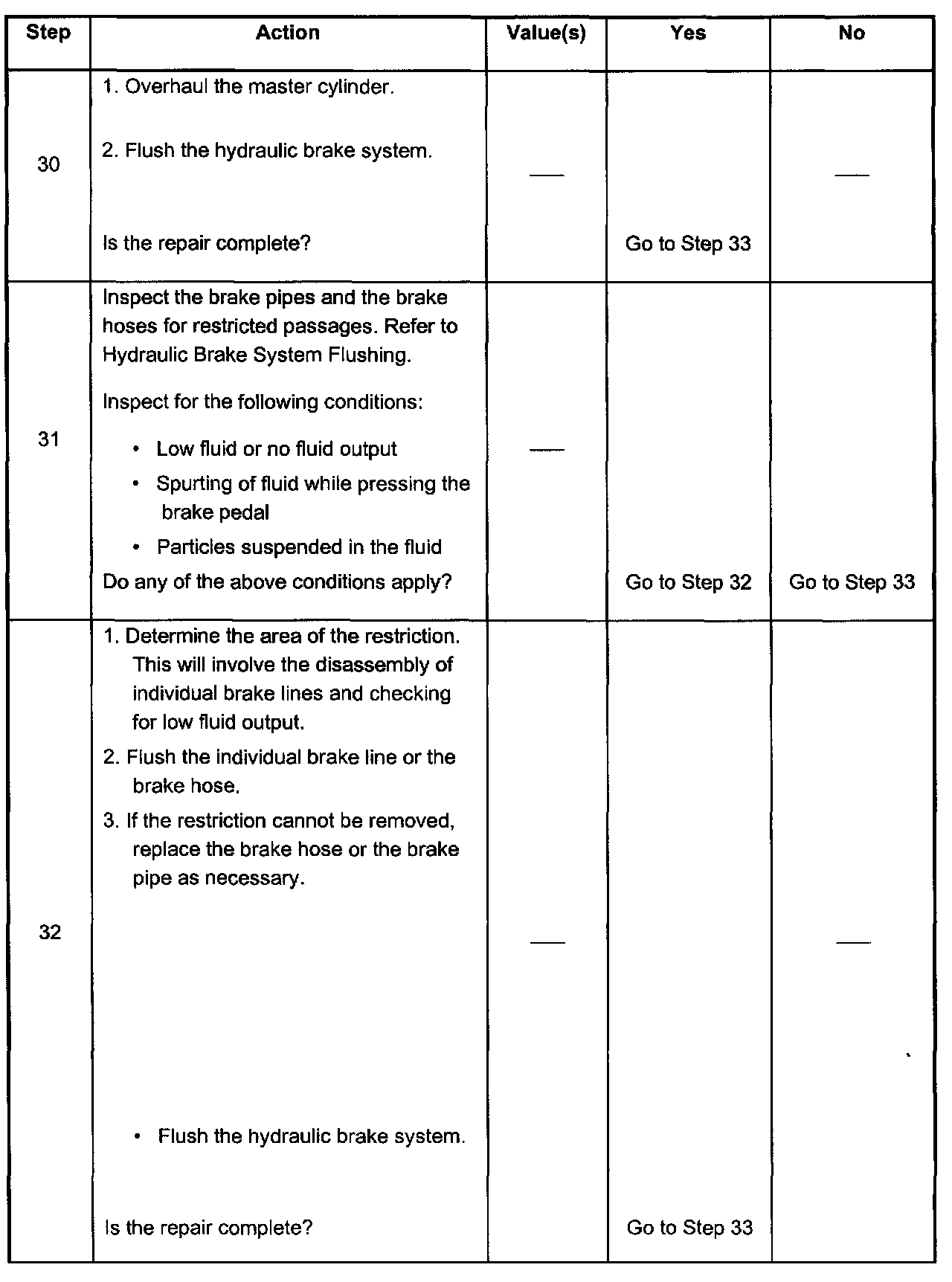

Steps 30 - 32:

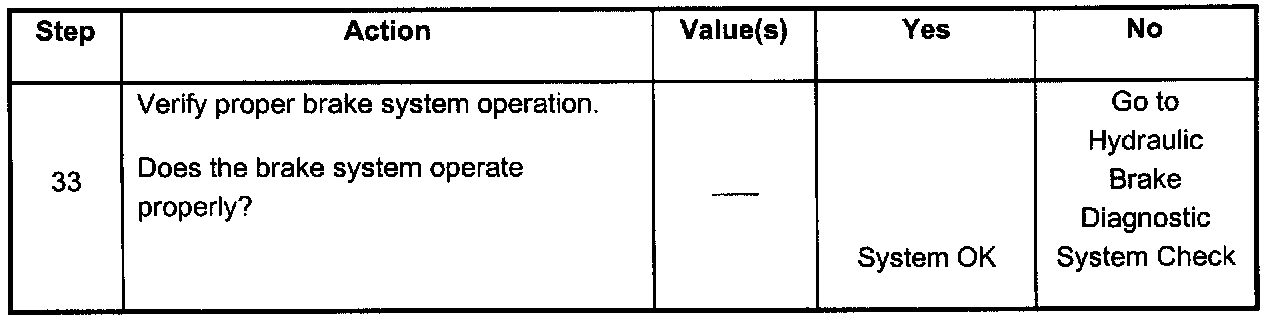

Step 33:





Brake System Slow Release
