Brake System Noise With Brakes Not Applied
Brake System Noise With Brakes Not Applied
Steps 1 - 2:

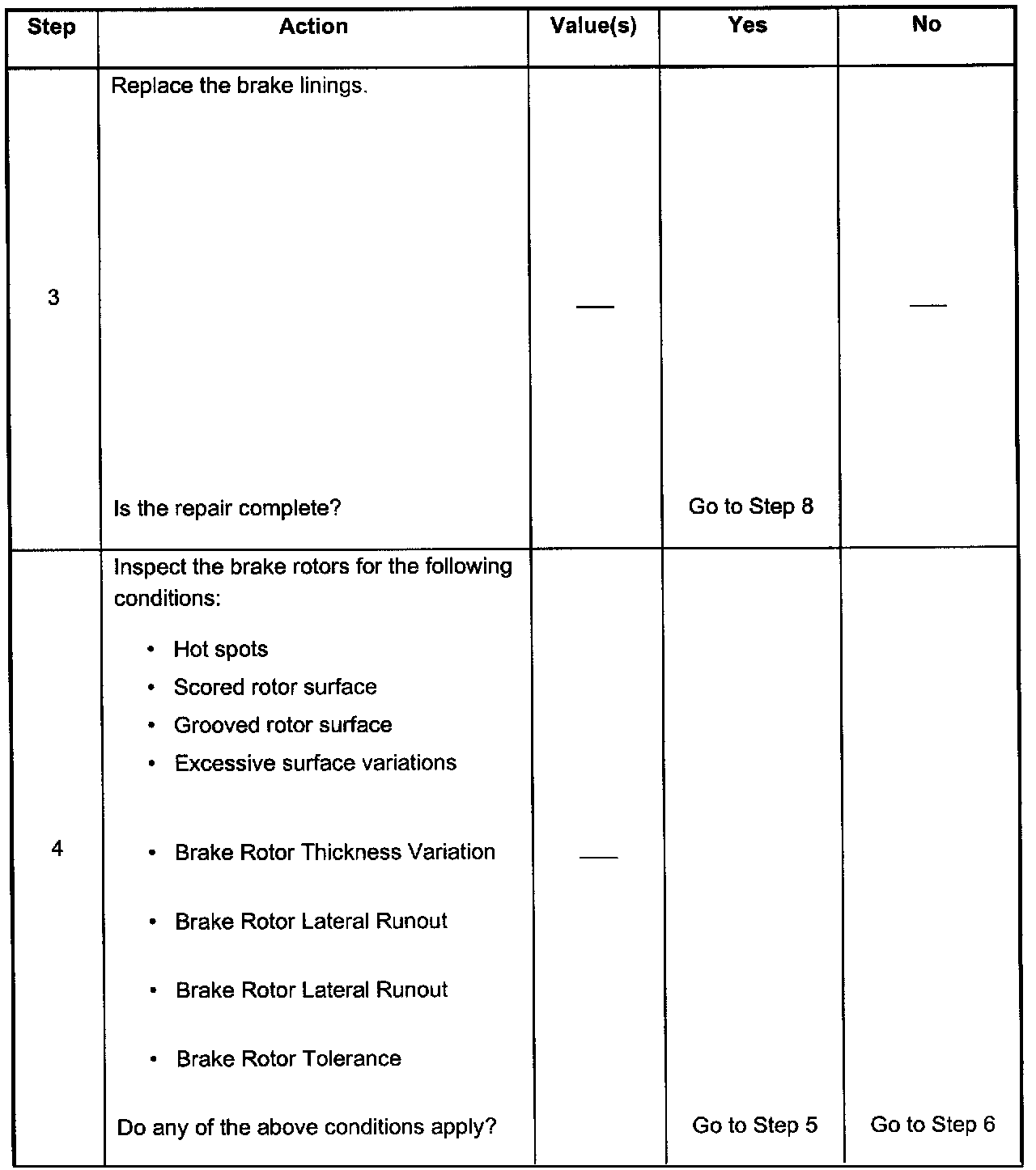

Steps 3 - 4:

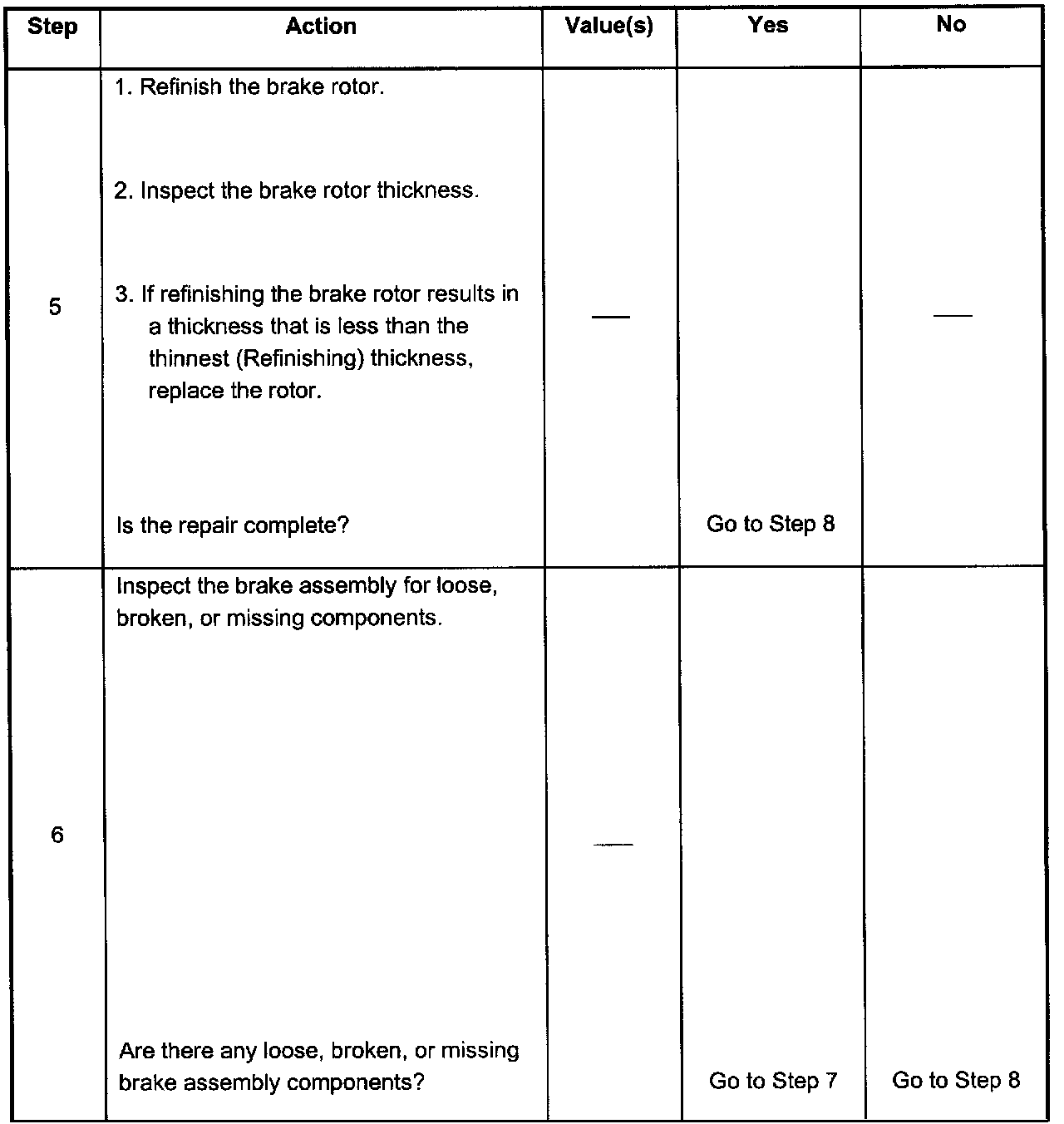

Steps 5 - 6:

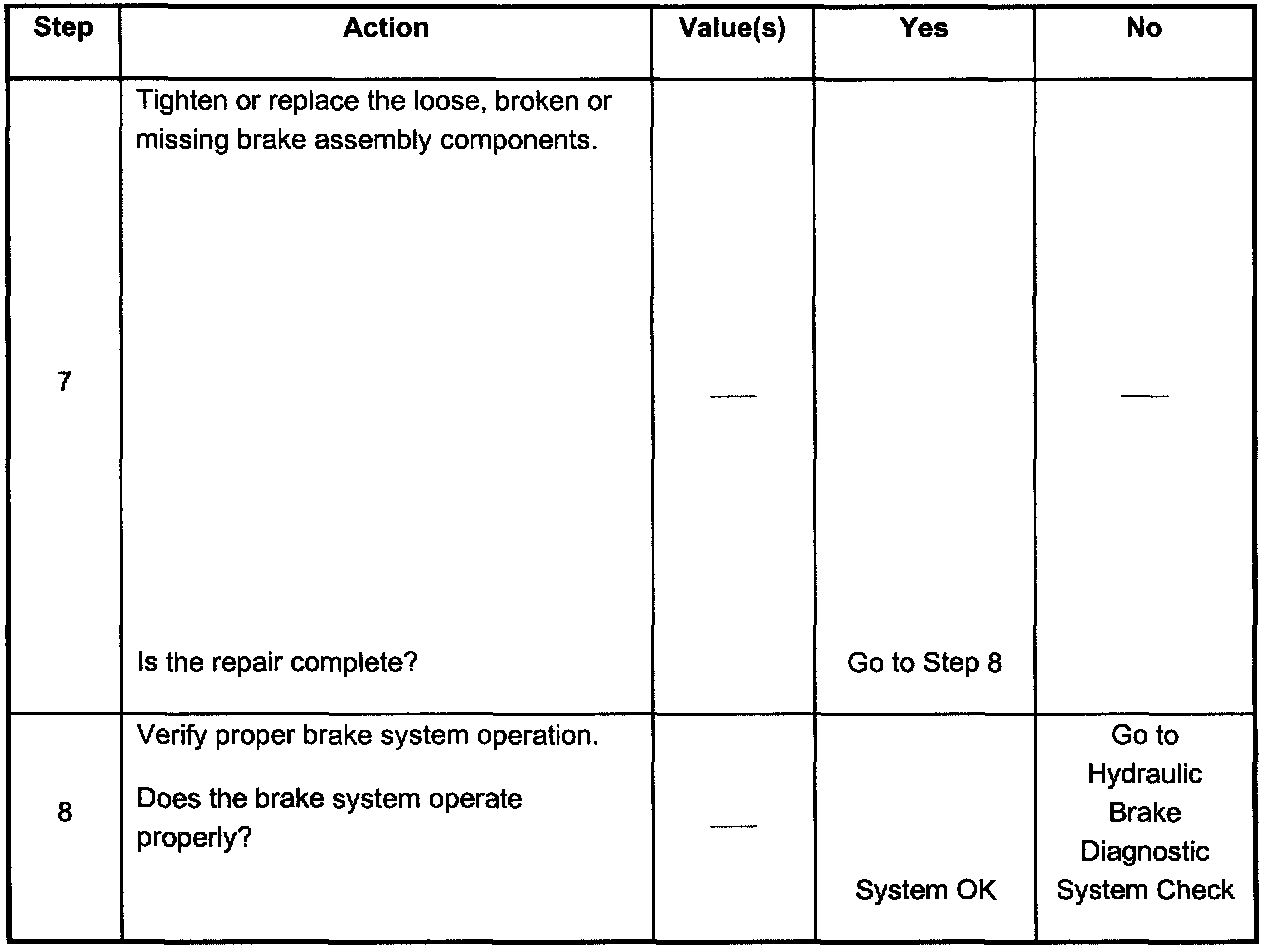

Steps 7 - 8:
Brake System Noise with Brakes Not Applied
