Brake System Noise With Brakes Applied
Brake System Noise With Brakes Applied

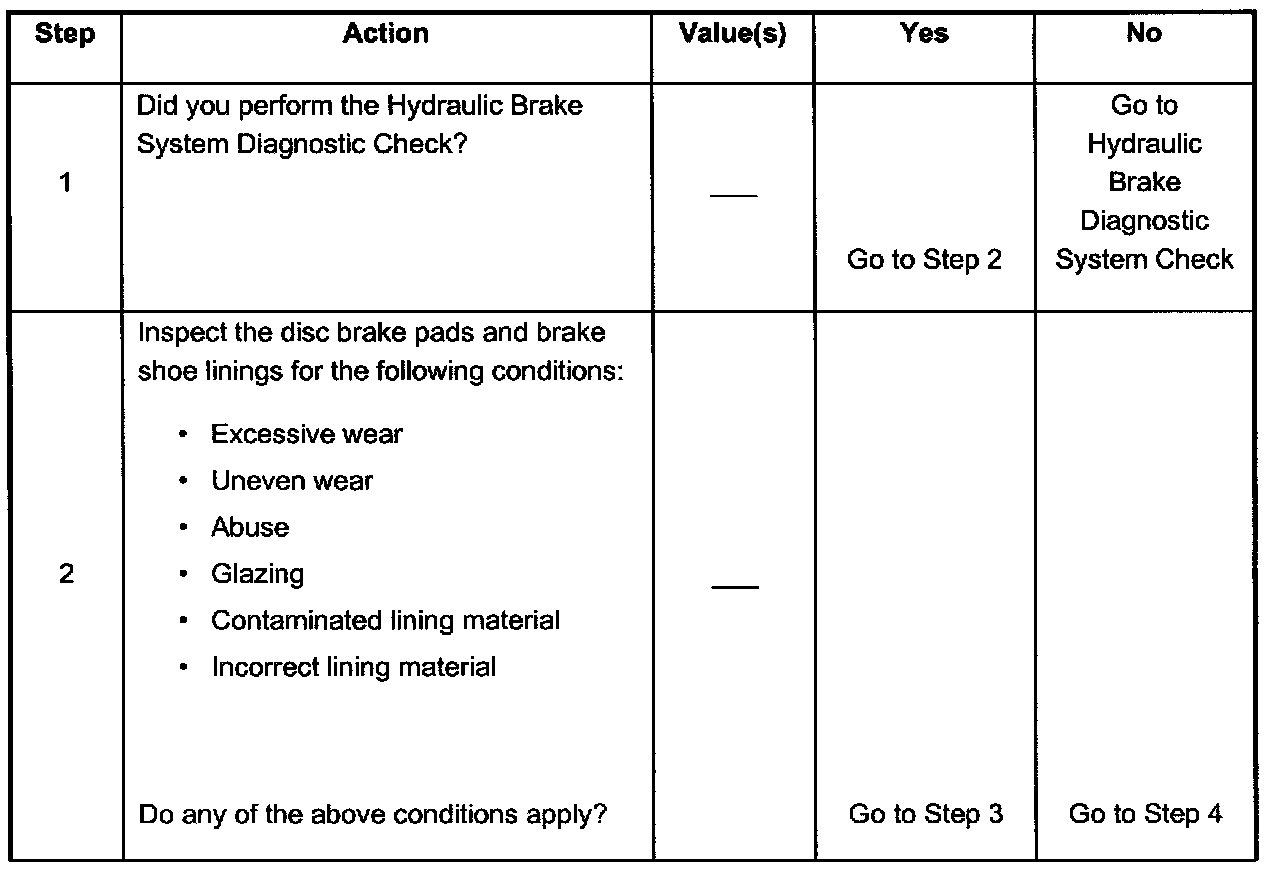

Steps 1 - 2:

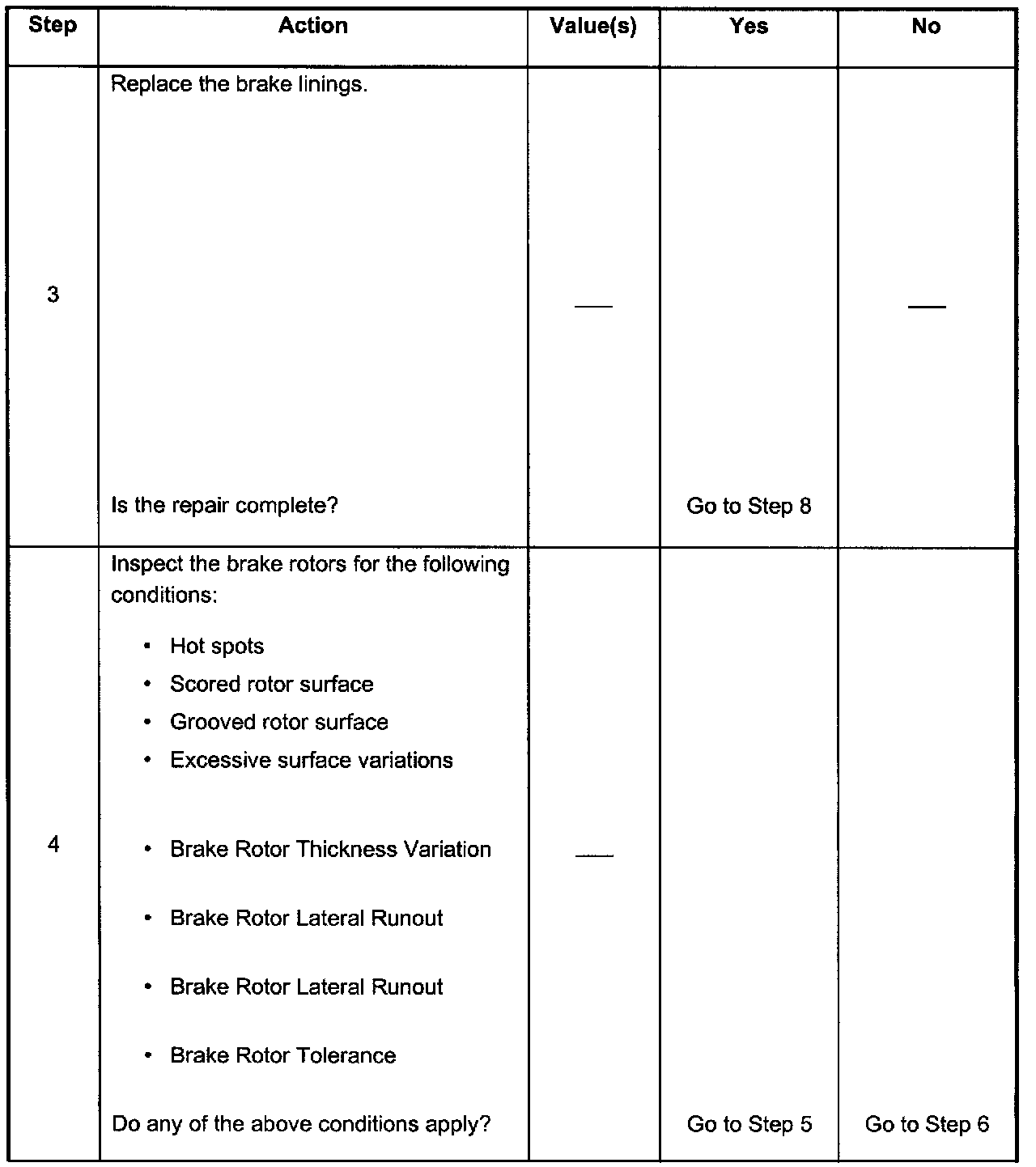

Steps 3 - 4:
Steps 5 - 7:
Step 6:

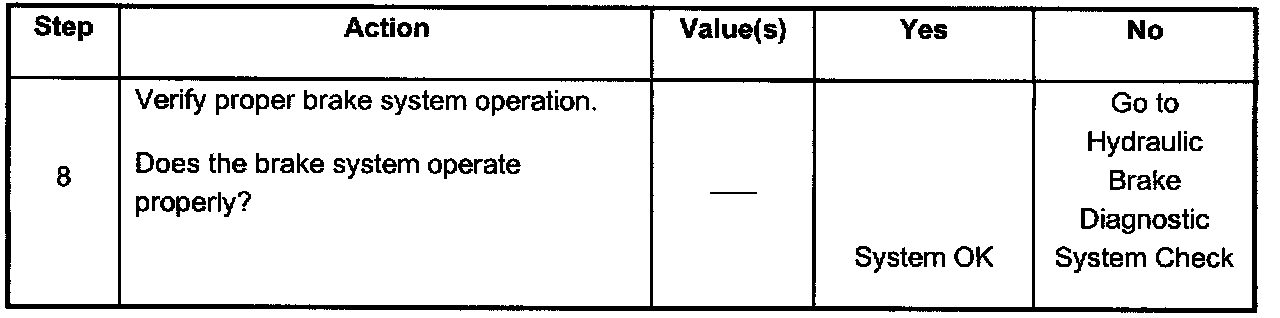

Brake System Noise with Brakes Applied
